SLT-OT18
MWELLPACK

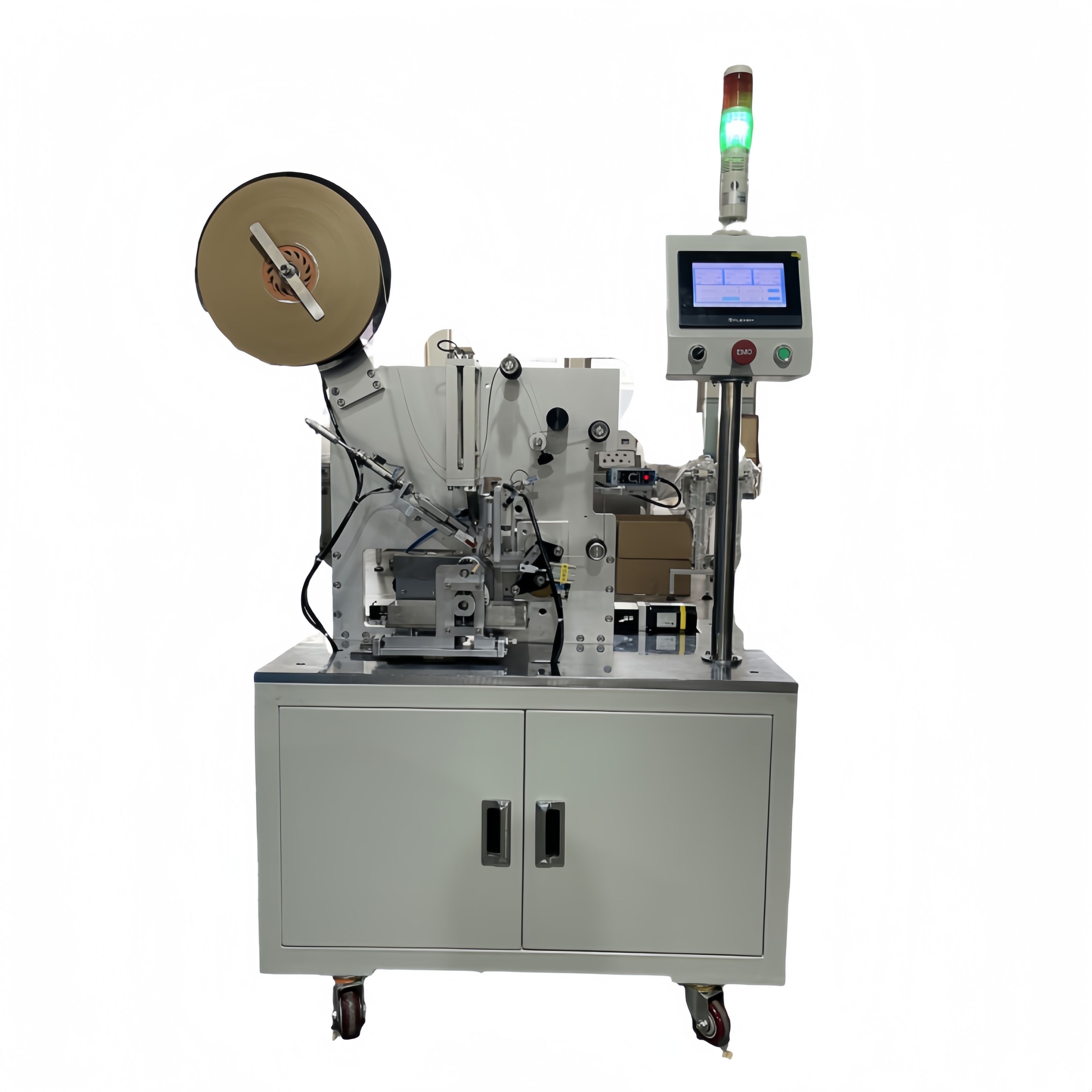

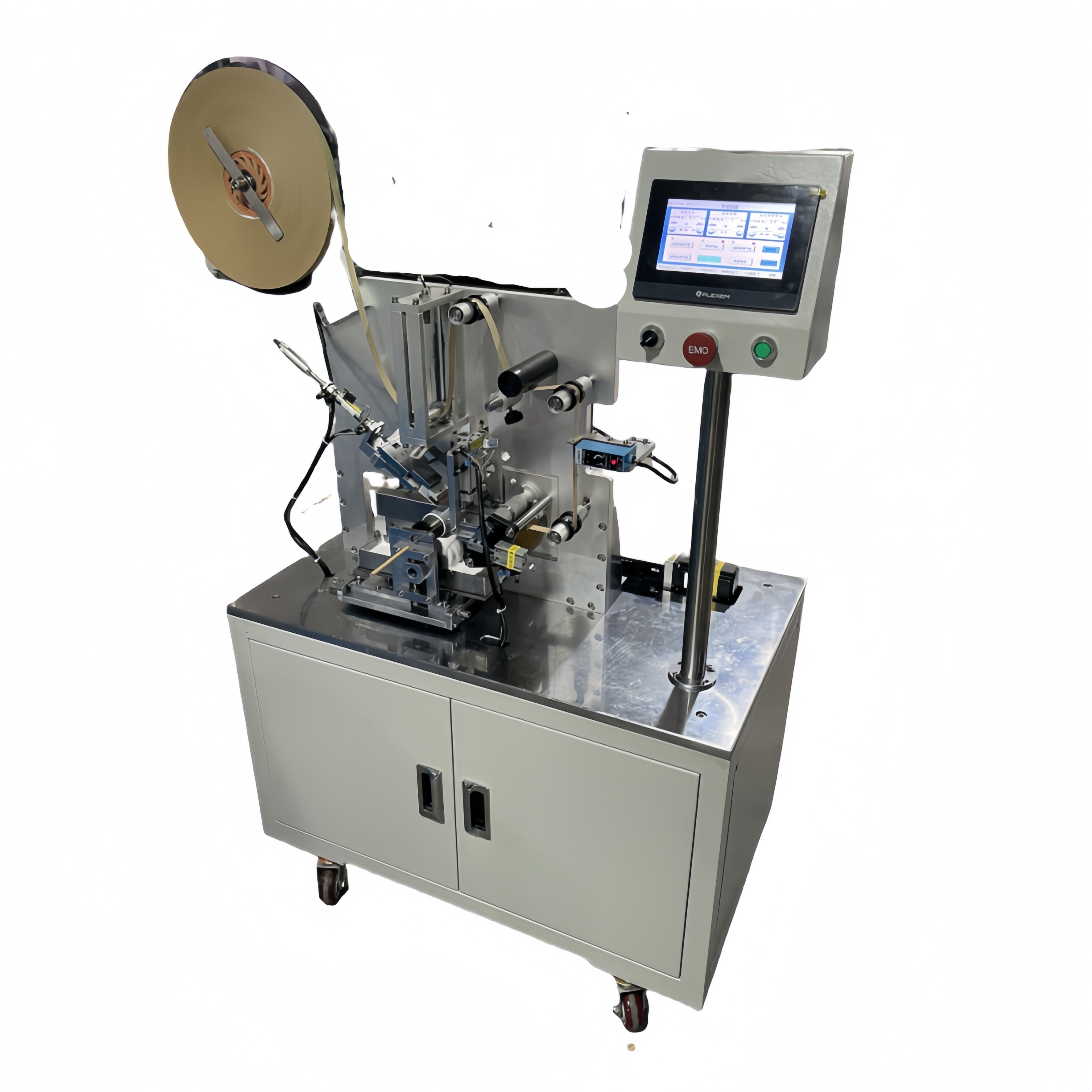

SLT-OT18 I SHAPED AND EMPTY PRE ROLLED CRUTCH FILTER TIP MAKING MACHINE
Introduction：
The fully automatic filter paper tube forming machine is a professional equipment that makes pure wood pulp base paper into filter paper tube products. This equipment has the functions of automatic feeding, automatic core winding, automatic gluing, automatic forming, etc. It has the characteristics of fast production speed, high efficiency, high degree of automation, compact structure, simple operation, and convenient maintenance and adjustment.
Features：
1) Adopt PLC microcomputer and touch screen control, with smooth starting speed and controlled acceleration and deceleration, etc.
2)Adopt micro-motor speed control, which can accurately control the amount of glue required
3) Adopting tension control to ensure stable paper feeding force
4)The machine can produce filter paper tubes with or without printing.
Main parameters of the equipment
Model | SLT-OT18 |
Electrical configuration | French brand Schneider |

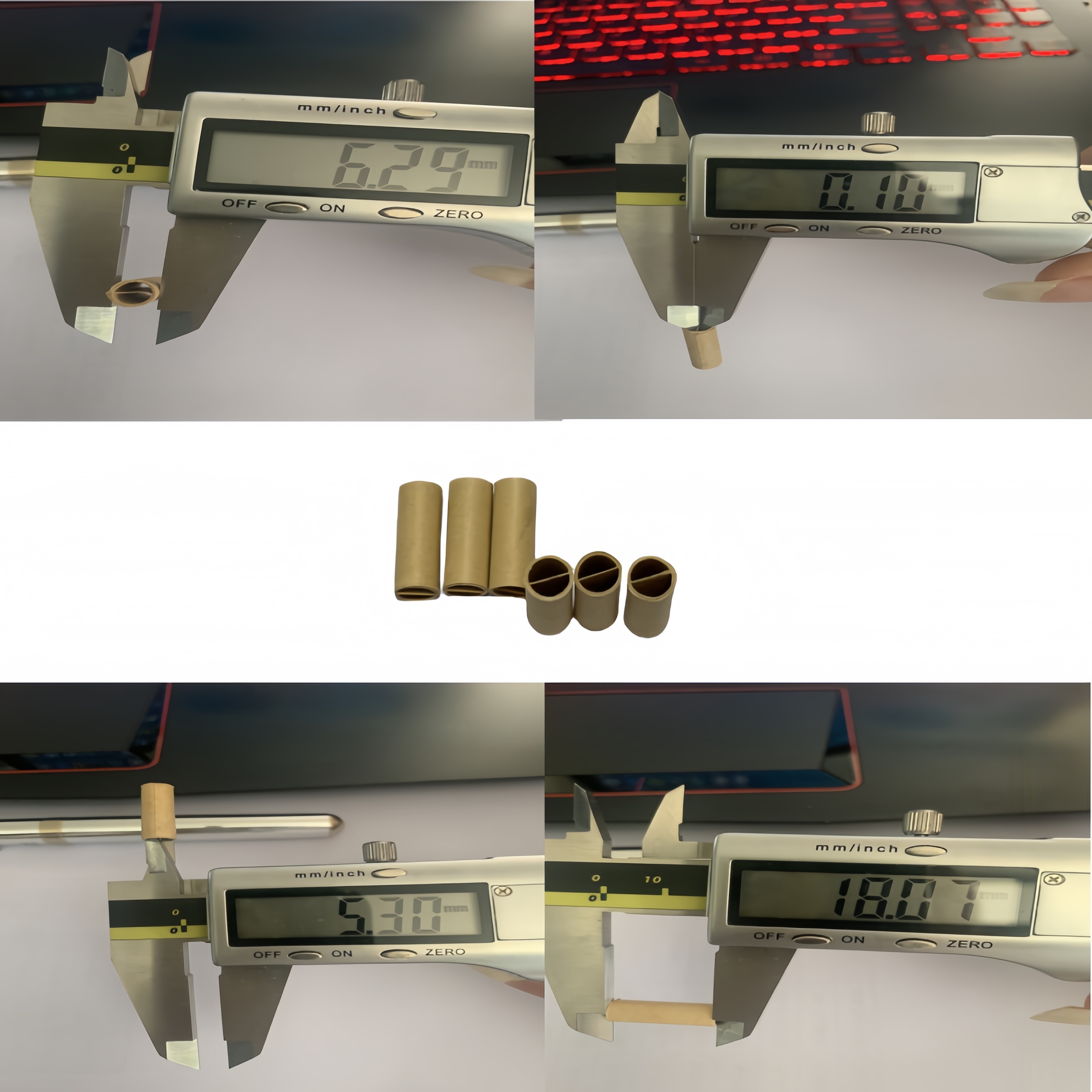

Tube inner diameter | 4.5—6mm |
Outer diameter | 6.5---8mm |
Speed | 20-30pcs/min (varying by diameter and length ) |
Paper thickness | 70-100gsm |
Tube Length | 16-22mm (Customization) |
Input | 220V/50Hz |
Power | 3Kw |
Size | L*W*H 1000mm*550mm*1500mm |
Weight | 300kg |
SLT-OT18 I SHAPED AND EMPTY PRE ROLLED CRUTCH FILTER TIP MAKING MACHINE
Introduction：
The fully automatic filter paper tube forming machine is a professional equipment that makes pure wood pulp base paper into filter paper tube products. This equipment has the functions of automatic feeding, automatic core winding, automatic gluing, automatic forming, etc. It has the characteristics of fast production speed, high efficiency, high degree of automation, compact structure, simple operation, and convenient maintenance and adjustment.
Features：
1) Adopt PLC microcomputer and touch screen control, with smooth starting speed and controlled acceleration and deceleration, etc.
2)Adopt micro-motor speed control, which can accurately control the amount of glue required
3) Adopting tension control to ensure stable paper feeding force
4)The machine can produce filter paper tubes with or without printing.
Main parameters of the equipment
Model | SLT-OT18 |
Electrical configuration | French brand Schneider |
Tube inner diameter | 4.5—6mm |
Outer diameter | 6.5---8mm |
Speed | 20-30pcs/min (varying by diameter and length ) |
Paper thickness | 70-100gsm |
Tube Length | 16-22mm (Customization) |
Input | 220V/50Hz |
Power | 3Kw |
Size | L*W*H 1000mm*550mm*1500mm |
Weight | 300kg |
