| Quantity: | |
|---|---|
Model | MW8-2030FM |
Bag Size | Width：80~200mm , Length :100-300mm |
Fill Weight | 10-1500g Depend the product |
Speed | 10-60bags /min , The Speed is up to product and weight |
Filling accuracy | ≤±1-2g According the product |
Total Power | 3.6Kw |
Dimension | 1350*3900*2400mm |
Weight | 1700KGS |
Air Requirement | 0.6m3/min |
Product Usage

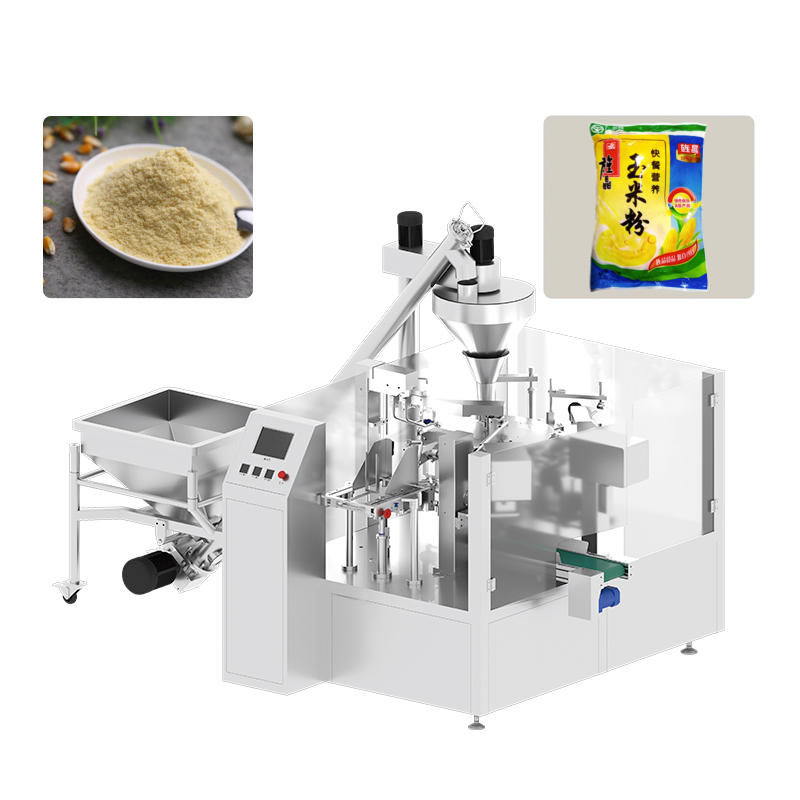

The corn starch bag packaging machine can be suitable for corn starch, rice flour, coffee powder, flour, milk powder, soy milk powder, spice powder, seasoning powder, curry powder, jelly powder, washing powder, walnut powder, mask powder, soda powder, A series of powder products such as baking powder and medicine powder are automatically packaged.
Feature
The corn starch automatic bag-feeding packaging machine is mainly to complete the packaged small bag products (150 ~ 1000 grams) according to the requirements (arrangement form: single warehouse, multiple rows) into the woven bag in orderly order, complete the output of the sewing bag Automatic packaging process. Thus, fully automated operations from small packaging of bulk materials to packaging of woven bags are realized, which saves the investment of manpower, material resources and financial resources, reduces production costs for customers and improves production efficiency.
The corn starch automatic bag-making packaging machine is a new packaging unit developed for the packaging of powder materials in agrochemical and food industries. The unit has the functions of automatic bag supply, bag loading, filling, bag delivery, and sealing. It can work in conjunction with various types of powder materials and equipment to achieve unmanned production operations for large-scale packaging. LCD touch screen control (can achieve IP65 or above waterproof, dustproof, can adapt to wet, dusty working environment), the man-machine interface is better, automatic fault diagnosis, safe shutdown protection, adjustment and maintenance are convenient and fast.
Pouch Type
Stand Bag , Handle Bag , Zipper Bag , Four Side Sealing Bag , Three Side Sealing Bag , Paper Bag , Compound bag etc.
Machine Process drawing: (8 working stations for reference)
1. Pouch Supplying --> 2. Coding Date + --> 3. Zip Opening (if need)--> 4. Pouch Opening ---> 5. Filling + Vibrating (if need)---> 6. Option functions (Nitrogen flushing/2nd fillings ) --> 7. Sealing 1st ---> 8. Sealing 2nd + Output
