| Quantity: | |
|---|---|

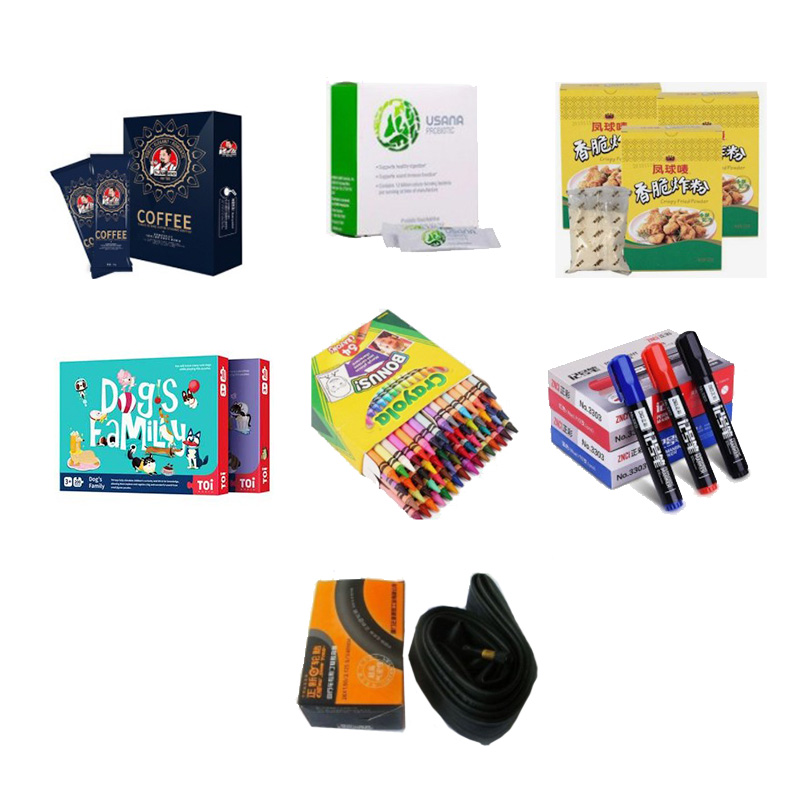

Applicable range
Pharmaceutical industry: medicine board, oral liquid, ampoule, penicillin bottle, bagged granules, plaster, ointment, aerosol, etc.
Food industry: ice cream, egg rolls, bread, bagged coffee, seasoning packets, milk powder, etc.
Daily chemical industry: toothpaste, soap, cosmetics, facial mask, face cream, lipstick, mosquito coils, mosquito repellent water, etc.
Hardware industry: bearings, energy-saving light bulbs, switches, sockets, relays, chargers, etc.
Auto parts industry: spark plugs, filters, piston rings, automotive bulbs, automotive electrical appliances, etc.;
Plastic industry: plastic wrap, disposable film gloves, plastic products, etc.;
Entertainment industry: pens, staplers/nails, ink pads, glue, correction fluid, playing cards, puzzles, toys, handicrafts, etc.;
Paper hygiene industry: Facial tissue, cotton soft towel, non-woven fabric, napkin, sanitary napkin, panty liner, cosmetic cotton, etc.
Main features
It adopts automatic feeding, box opening, box loading, batch number printing, box sealing, waste picked out, etc. The structure is compact and reasonable. The operation and adjustment are simple.
Touch screen, PLC programmable control system, human-machine interface display is clearer, easier and more humanization to operate with a high degree of automation.
The photoelectric eye automatic detection and tracking system is adopted. The empty package cannot be loaded, which saves packaging materials to the greatest extent
Easy adjustment, and quick conversion between various specifications and sizes
It is not necessary to change the mold in order to change the specifications, it can be realized only by adjusting
It adopts automatic shutdown when the item is not in place and main drive motor overload protection device, which is safer and more reliable.
According to customer requirements, the flip-up safety cover can be used, which is easy to operate and beautiful in appearance
It can realize linkage production with aluminum-plastic packaging machines, pillow packaging machines, three-dimensional packaging machines, bottling lines, filling machines, labeling machines, inkjet printers, online weighing instruments, and other production lines
Various automatic unloader and boxing systems can be designed according to the requirements of the packed product.
Hot-melt glue machine can be selected according to customer requirements, using hot-melt glue spray glue sealing box and mechanical brush glue sealing box
Technical parameter
Item/Model No | MWJX-160 | Remark |
Packing speed | 20 -60Box/min | It depends on product specification |
Paper requirement of paper box | 250—400g/m2 | The surface of the paper box is smooth |
Size range of paper box | L(70-230) x W(90-160) x H(20-100) | It can be customized according to size |
Compressed air source | Pressure≥0.6MPa | |
Compressed air source | gas consumption≤20m3/h | |
Power supply | 220V/380V 50Hz | |
Main motor power | 1.5kw | |
Dimension | 4000X1200X1700mm | |
Total machine net weight | About 1500kg | |
Glue spray | Glue sprayer optional |
Main electrical configuration list
No | Name | Brand | Qty |
1 | Touch Screen | DELTA | 1 |
2 | PLC | DELTA | 1 |
3 | Frequency Converter | DELTA | 1 |
4 | Encoder | OMRON | 1 |
5 | Photoelectricity | SICK | 4 |
6 | Approach switch | OMRON | 1 |
7 | Button switch | Schneider | 3 |
8 | AC Contactor | Schneider | 1 |
9 | Relay | China | 2 |
10 | E-stop switch | Schneider | 1 |
11 | Switching power supply | DELTA | 1 |
12 | Combination switch | Zhengtai | 1 |
13 | Solenoid Valve | AirTAC | 1 |
14 | Main motor | China | 1 |
Tool box
