Feature:
1. Adopt microcomputer set in-line cut length, more accurately; Touch screen convenient for data adjusting;
2. Adopt human-machine operation interface, more convenient for operation;
3. Paper reeling stand , Slitting rolls are easily placed into reel stand by
electric lifting device;
4.Choose Single or double glue coating unit
5. Spiral winding part , Hanging-type operation panel, specialized operation system , Belt tension device (hand-wheel driven)
6. Single-knife System in-line cutting unit controlled by infrared sensor .
Main technical parameter :
Paper Reel | 3-16Plies |
Inner Tube Diameter | 20-200mm |
Thickness | 1-10mm |
Cutting Length | 500-5000mm |
Spiral Speed | 0-30m/Min |
Hub Wheel | Four head and double belt |
Way Of Fixing Mandrel | Flange |
Cutting System | single circular cutting knife system |
Way Of Gluing | Double Side (optional : single side) |
Cutting Length | Infrared sensor control |
Operator | 2-3 person |
Speed Control | Inverter control |
Dimension | |
Main Winding Part | 4100*1650*1800mm |
Machine Layout Size | 12000*8000 |
Weight | 3300KGS |
Drive System | |
Main Motor | CHINA XINLING 7.5KW |
Rotated Speed | 1400r/Min |
Rotated Speed Of Hub Wheel | 48r/Min |
Output Strength | 3000n.M |
Gear Box | WPDO155 |
Driving Chain | 16A*2 |
Control System | |
PLC | TAIWAN DELTA |
Touch Screen | CHINA XIANKONG |
Inverter | CHINA ZHENGXIAN 11KW |
Signal Component | CHINA HUGONG |
Pneumatic Component: | CHINA XINGCHEN |
Electrical Equipment: | CHINA CHINT |
Bearing | CHINA HAERBING |
Main Parts | |
Paper Reel Stand | 16 Plies Integral Paper Reel Stand |
Gluing Unit | 16 plies Immersion Glue Loading Machine |
Bottom Paper Feeding Unit | 1 set |
Surface Paper Feeding Unit | 1 set |
Mandrel And Belt | 2 sets (The size according the client requirement) |
Belt Adjustment | Manual |
Angle Adjustment For Reel Stand And Glue Tank | Manual (optional : Motor adjustment ) |
Glue System | Independent Glue Box/Polyurethane Scraping Blade , 1.5kw Pump |
Lubricating Oil | Automatic Giving |
Spare Parts And Professional Tools | |
Allen Wrench: | 1 piece |
Open-End Wrench: | 1 piece |
Useful Tools: | 1 set |
Air Gun: | 1 piece |
Blade: | 2 pieces |
Three-Way Connection: | 1 piece |
Air Tube: | 8 meters |
Limit Switch: | 1 piece |
The machine mainly includes the following equipment (pictured)

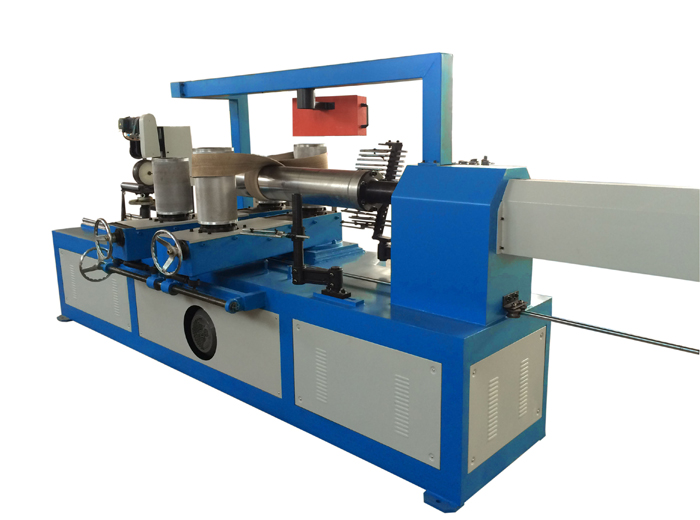

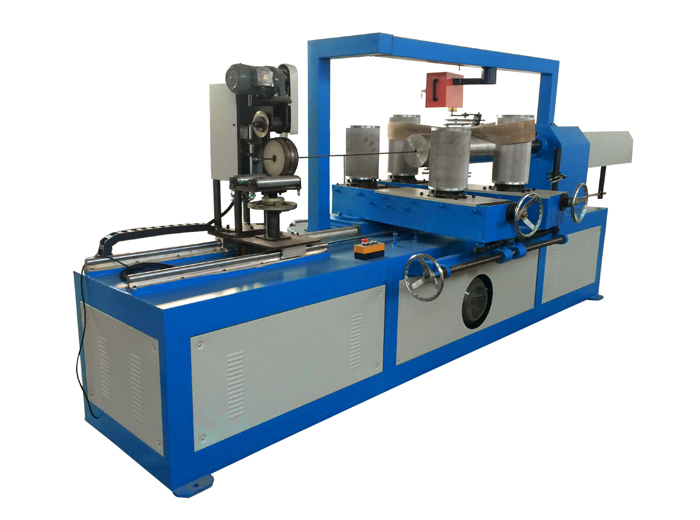

SL-M Four Winding Head Paper Tube Making Machine |
One Unit 16 Layer Reel Stand |
One Unit 16 Layer Glue Unit With Gear Type Glue Pump |
One Unit Spiral Paper Tube Machine With Online Cutting System |
One Unit Bottom Paper Feeding Unit |
One Unit Paper Collect Unit |
Machinery Detailed Description
Reel Stand |
16 layer unitary reel stand |
With integral paper reel stand, glue stand, paper feeding assembly, |
Slitting rolls are easily placed into reel stand by electric lifting device , Easily replace paper reels. When one paper reel is used up, push it into ahead working station and load another new one, do Paper reel changing work advance to continue; |
The diameter of paper reel can be 1200mm, reducing much paper waster by ribbons joint; |
Bottom paper feeding device, equipped with waxing or oiling frame to reduce the friction between bottom-ply and mandrel , There is two function gluing and lubrication . |
One Unit Paper Collect Unit |
Glue Unit |
16 layer Glue unit |
Every ply has web tension controlling device and Glue outlet mouth |
Single or double side glue coating unit, include big glue tank , gear type glue pump . lasts longer . |
Steel type scraper , easy to adjust scraper and glue , lasts longer |

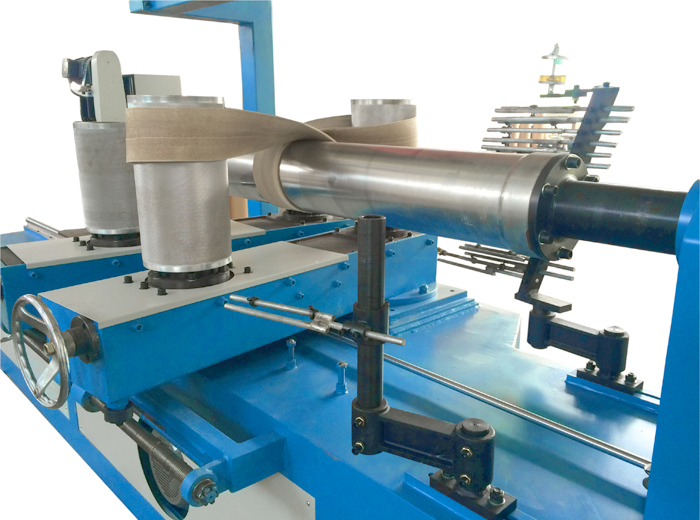

Paper Tube Winding Part |
Spiral Paper Tube Machine , produce high quality and thick paper tube . |
Suspension operation panel, specialized operation system , big size colorful main machine touching interface . |
Independent electric control box install in the machine , save the space |
hand-wheel drive belt tension device |
Main structure made by thicker steels which are finished by processing of re-cutting and welding, make machine much more stable and strong. |
Main transmission adopt thermal refining , low-noise, low-heating, high revolution, high torque. |
Main transmission shaft adopt double thicken bearing |
Main motor adopt vectorial high torque inverter speed adjusting. |
Cutting system |
Pneumatic Single blade cutting system with 1 unit knife |
Synchronous cutting system, air cylinder take back the cutting unit |
Paper tube off collect unit with infrared ray sensor control tube length |
PLC control system, IO output control and functional operation separate control , |
