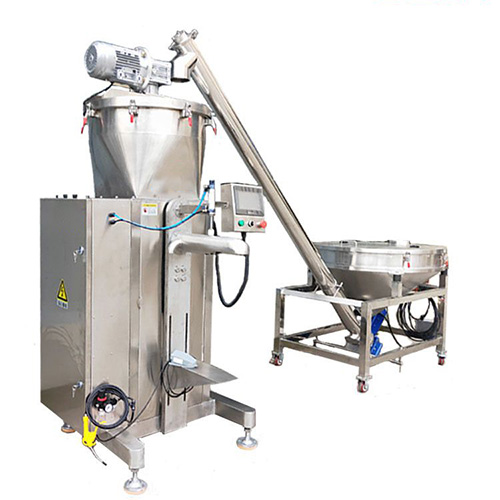

1、Spiral elevator
1. The actual product has casters to facilitate the movement of the equipment
2. Pipe diameter: φ114mm 3. Lifting speed: 2-5m3/h
4. The screw feeder has its own vibration device and is equipped with a material level sensor, which automatically feeds when there is less material, and automatically stops when the material is full. 5. Lifting angle: 45 degrees 6. Lifting height: matching with packaging machine
7. Silo volume: 200L
8. Power of the whole machine: Taiwan-made motor 1.8KW (feeding motor 1.5kw, vibration motor 0.6kw)
Valve Bags Packing Machine
1. product description
This product is a mechatronics product. It is mainly composed of electronic control system, material box and electric control system.
2. Technical Parameters
model | MW-FKD25 |
Packaging accuracy | ±0.1-0.3% (determined according to material and packaging weight) |
Packing speed | 1-2 bags/min (decided according to materials and bag opening) |
Measurement method | Pulse spiral weighing measurement (servo motor) |
Package weight | 5-25 kg |
Entrainer | Standard |
Stir | Optional |
Power supply, power | 380V, 220V |
size | Length 1500mm*Width 1000mm*Height 1800mm |
weight | 200KG |
A. The packaging machine can automatically complete feeding, metering, blanking, dust extraction, finished product conveying (optional) and other tasks.
B. Touch screen control, simple and convenient operation, can store ten formulas, driven by a Taiwanese private server motor, the screw speed is divided into 3 stages (2000 -10 rpm one-key adjustment), so as to ensure speed and accuracy.
C. The working process is manually bagged by the machine (optional), and the rest of the work: feeding, measuring, and finished product delivery are all automatically completed according to the set program.
D. It has the characteristics of complete detection and control functions, reliable work, high measurement accuracy, simple operation and convenient maintenance.
E. This machine can also be customized for you according to your requirements
Main Machine Parts
Name | Brand | Quantity |
Host control | ZHEJIANG MINGWEI | 1 |
Loading relay | Schneider | 1 |
Loading relay seat | Schneider | 1 |
Loading heat overload | Schneider | 1 |
Loading contactor | Schneider | 1 |
Stirring relay | Schneider | 1 |
Stirring Relay Block | Schneider | 1 |
Stirring heat overload | Schneider | 1 |
Stirring contactor | Schneider | 1 |
Clip bag cylinder | AirTAC Taiwan | 1 |
Pocket solenoid valve | AirTAC Taiwan | 1 |
Private server motor | Sumai | 1 |
Load cell | Zhejiang Cooley | 2 |
Stirring motor | Taiwan Innovation | 1 |
Mixing reducer | Taiwan Innovation | 1 |
touch screen | Vinylon | 1 |
switch | Taiwan Mingwei | 1 |
Photoelectric switch | Autonics Korea | 1 |
Full set of wires | Shanghai Qifan | |
Full set of host material | Shanghai SUS304 stainless steel |
|
