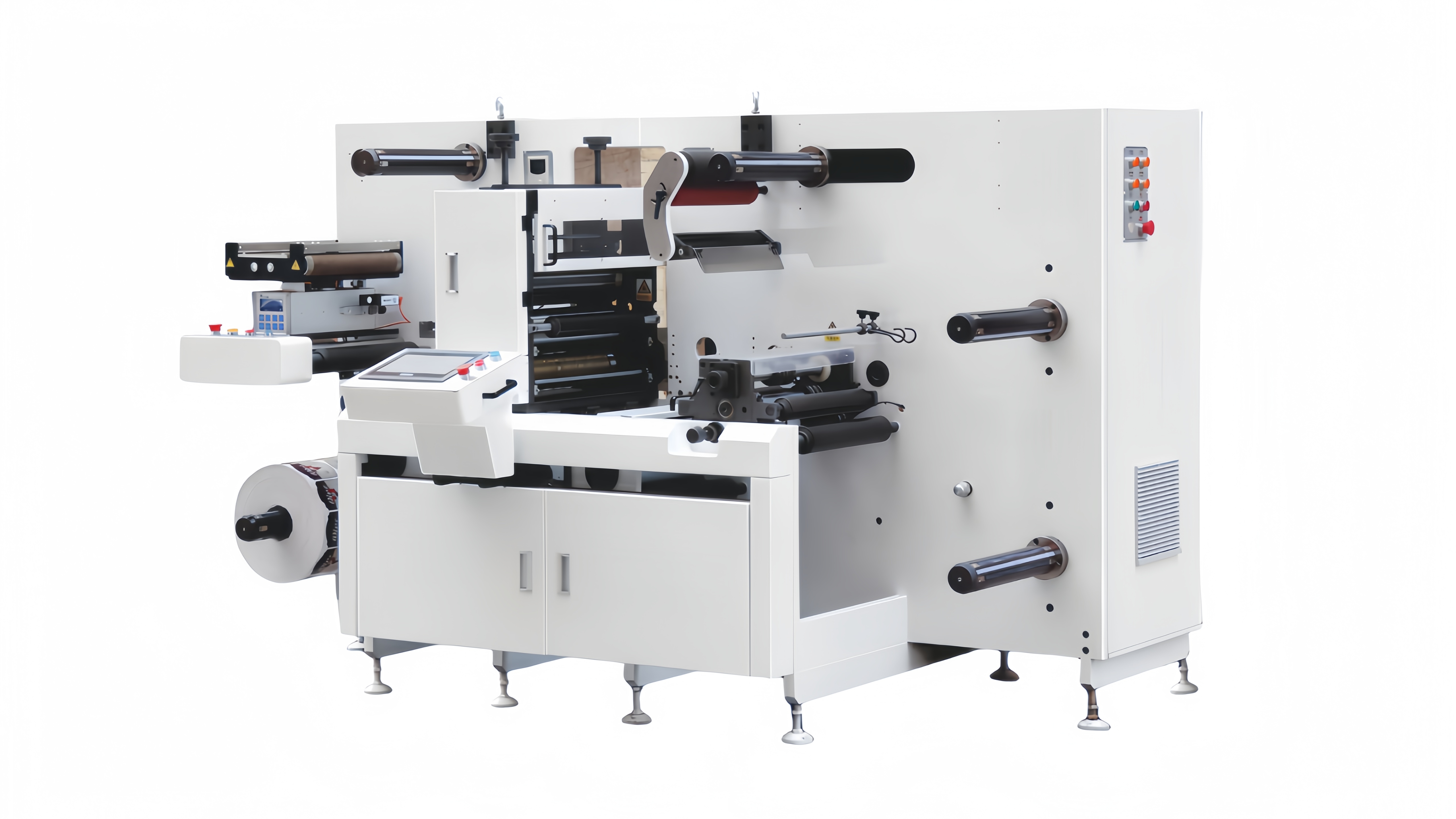

High-Precision MWT-330 Semi Rotary Intermittent Die Cutting Machine for Packaging Industry | MWELLPACK
this equipment is the latest research and development product ,Equipped with die cutting intermittent die-cutting and slitting units, it adopt advanced servo control system, user-friendly operation panel, greatly improve product quality and production efficiency; with the latest full-rotary and intermittent interchangeable technology; suitable for digital printing label small and medium quantity orders after die-cutting.
Configuration:
1 x Unwind Reel stand unit with max. Diameter 800mm on 76mm air shaft，with magnetic brake
1 x Electronic sensing web guide with ultrasonic sensor, with splice table.
1 x Full rotary Die cutting unit for blank label, without magnetic cylinder
1 x waste matrix rewind with diameter 600mm
1 x Slitting unit with 8 pcs scissor slitting blade, min slitting width 15mm
1 x up turret rewind with diameter 280mm, and one down rewind with diameter 800mm, 76mm air shaft,
Main Parameter
Model | MWF-330 |
Max.Web Width | 330 mm |
Max.Unwind/Rewind Diameter | 800 mm |
Max.Die Cutting Width | 330 mm |
Full Rotary Speed | 120 m/min |
Intermittend Speed | 60 m/min |
Kiss-Cut Precision Accuracy | ±0.10 mm |
Die cutting Positioning Method | Color sensor |
Standard(Optional)Magnetic Cylinder | 140T(60T~204T) |
Rating Voltage &Curren | 380V 50Hz 50A |
Power Consumption | 19 kW |
Machine Weight | 2000 kg |
Configuration List
Name | Model Brand | Manufacture |
Main Control System | INOVANCE system | China |
Powder Clutch | Shengda | China |
Web Guiding | MAXCESS | USA |

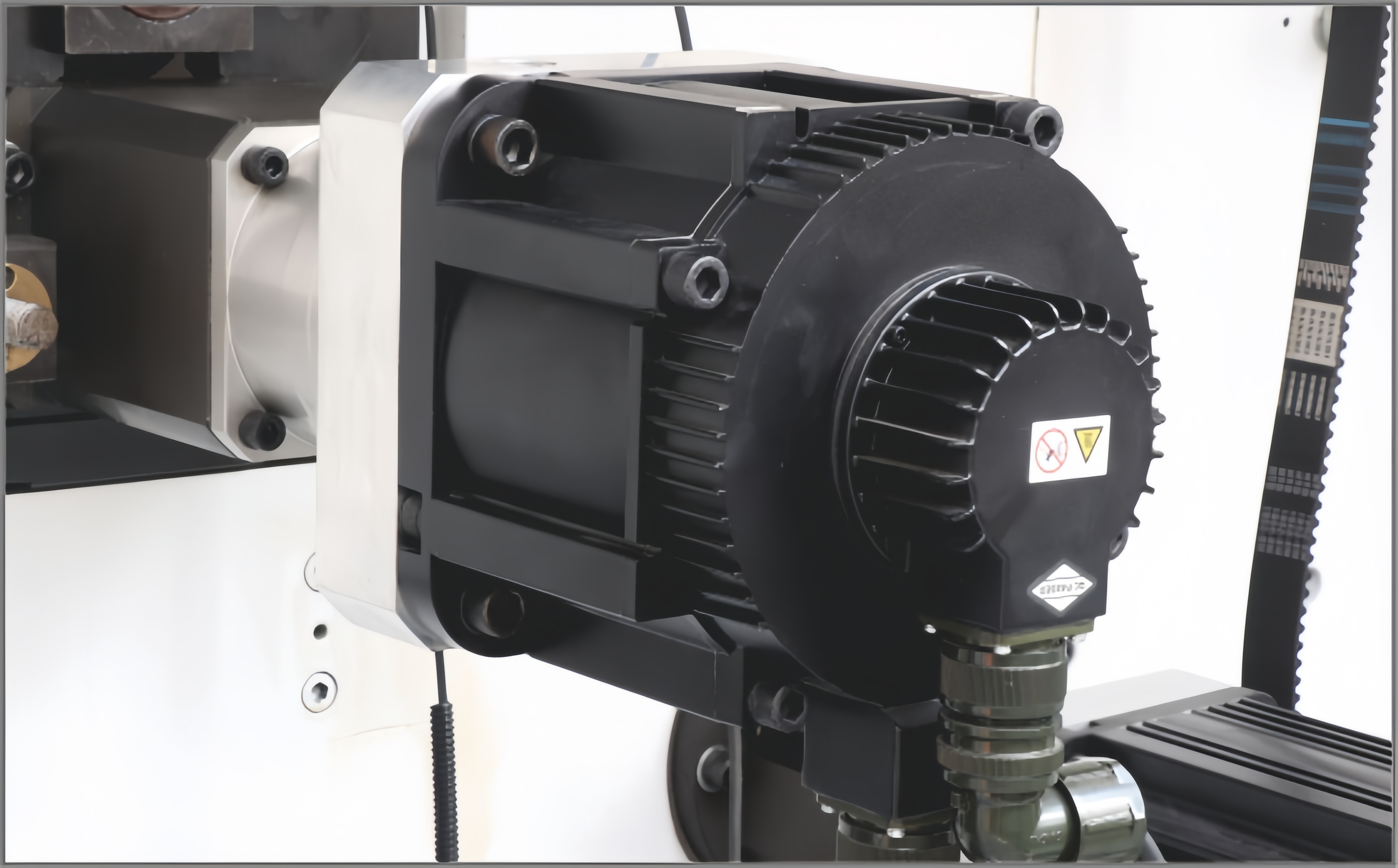

Servo Motors | Nidec | Japan |
Sensors | LEUZE | Germany |

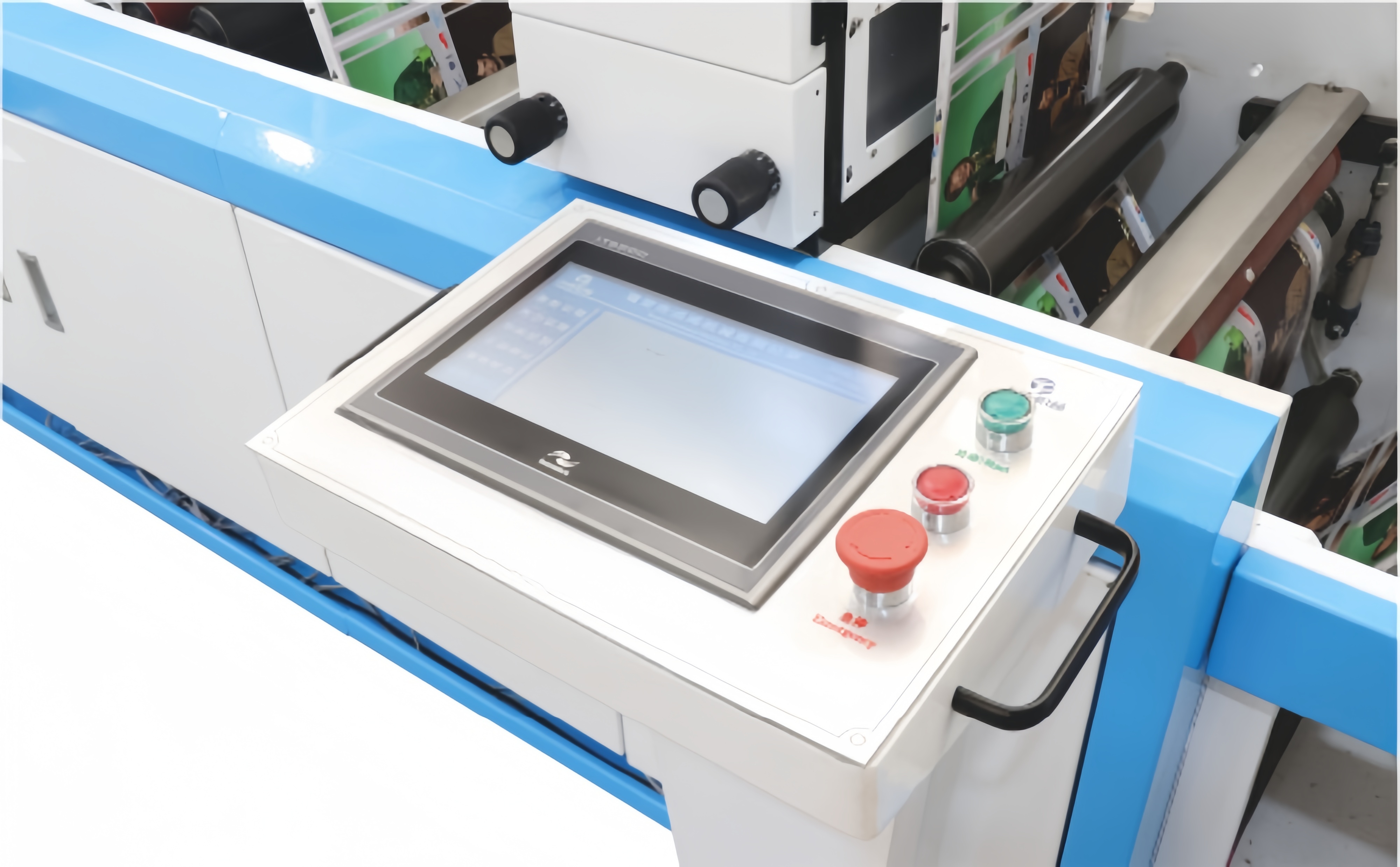

Touch Screen | FLEXEM | China |
Reducer | SHIMPO | Japan |
Electric components | Schneider | Germany |
Gears&Bearings | NSK | Japan |
Power Board | Meanwell | China |
Power Switch | Schneider | Germany |
Pneumatic Switch | Schneider | Germany |
Switch | Schneider | Germany |
Random Accessories
Hexagon | 1 set |
10 "adjustable wrench | 1 pc |
6"adjustable wrench | 1 pc |
Phillips screwdriver | 1 pc |
Belt | 2 pcs |
Air gums | 1 pc |
Magnetic Cylinder Supporter | 3 pcs |
Button | 5 pcs |
Part 1. Unwinding Unit
1.1 | Max. Unwinding dia | 800mm (31.5″)
|
1.2 | Air shaft | Φ76mm(3″) |
1.3 | Tension | independent servo motor tension control system |
1.4 | Automatic stop device | Can stop automatically when material running out or reach set Meters |
