MWT-330DA
MWELLPACK

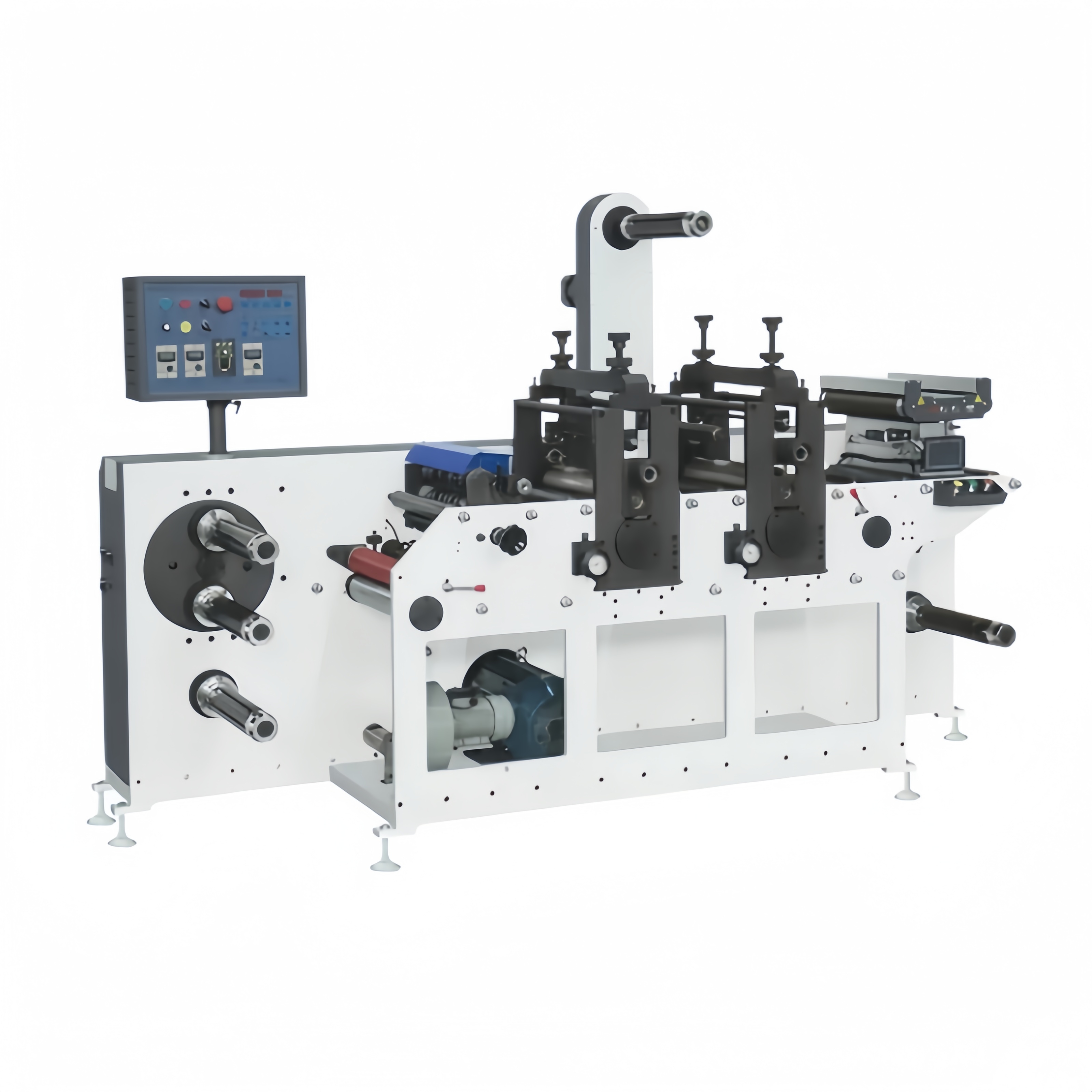

MWT-330DA Double Die Cutting Station Full Rotary Die Cutting Machine
Feature:

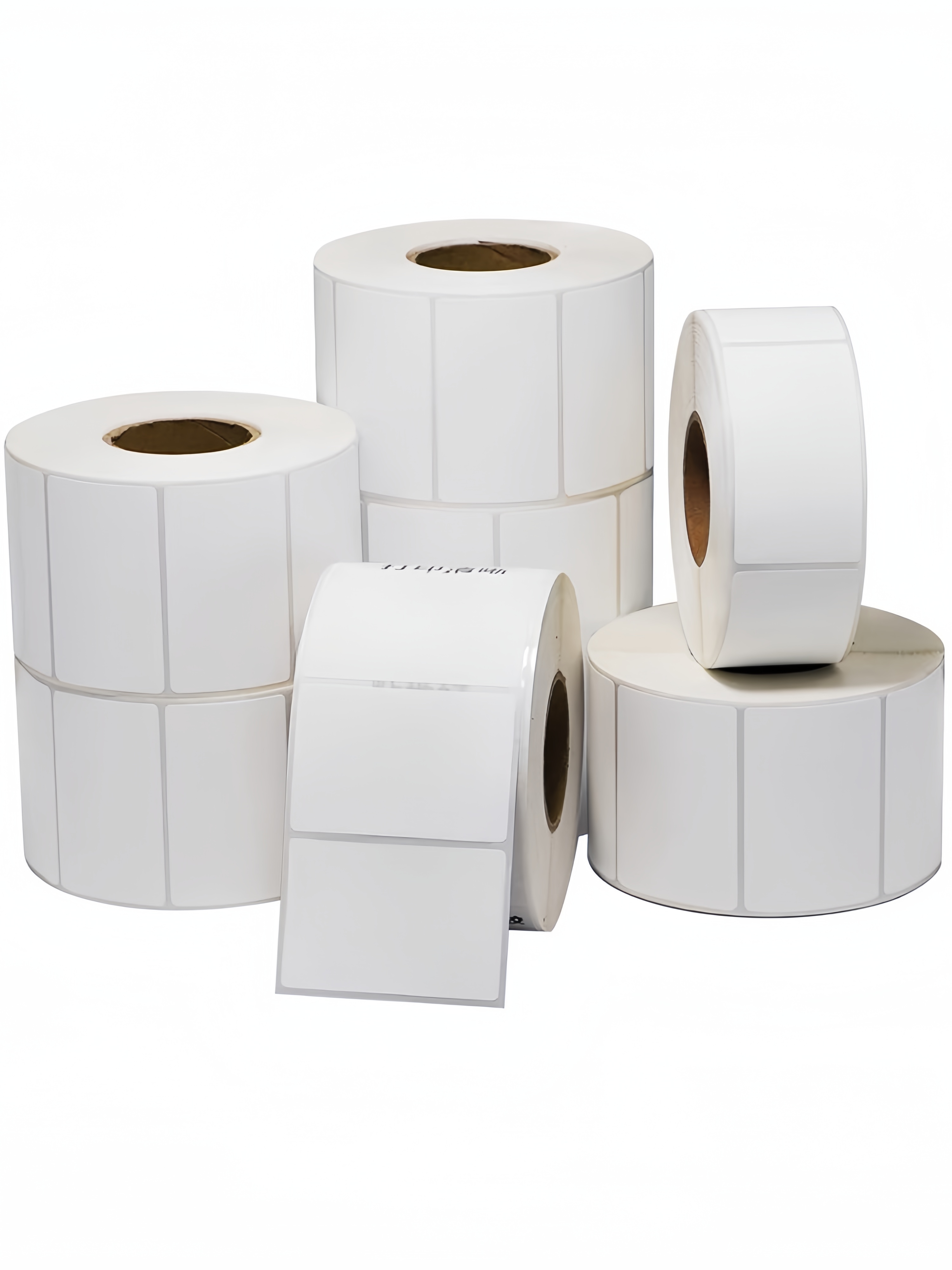

This product is suitable for blank label. Die cutting,slitting , rewinding can be in one process. It have automatic tension controller system for unwinding and rewinding, Automatic inflating air for air shafts, Optional Start and stop by foot. This machine has automatic meter count, number count, length preset, automatic-stop when up to length preset functions. The unwinding is controlled by the two photoelectric eyes. The whole machine structure is compact, fast and with high efficiency. Operation is easy and steadily
Main Parameter
Model | MWT-330DA |
Max.Web Width | 330 mm |
Max.Unwind/Rewind Diameter | 700 mm |
Max.Die Cutting Width | 330 mm |
Full Rotary Speed | 120 m/min |
Kiss-Cut Precision Accuracy | ±0.10 mm |
Die cutting Positioning Method | Color sensor |
Rating Voltage &Curren | 380V 50Hz 50A |
Power Consumption | 5 kW |
Dimension | 2.2x 0.9x1.4m (LxWxH) |
Machine Weight | 1500 kg |
Functions:
1. Advanced turret rewinder for two shafts
2. Automatic metering and counting
3. Semi-automatic tension control for unwind, waste draining
4. Automatic tension control for rewind
5. Foot switch available .
Standard configuration:
1. Two rotary die cutting station
2. One slitting station
3. With 1 pc 3" unwinding shaft
2 pcs 3" rewinding shafts
one pc 1" rewinding shaft
4. With meter/number counter
5. With two photoelectric eyes
6. With 8 pcs rotary knife
7. One magnetic brake, two magnetic clutches
Configuration List
Name | Model Brand | Manufacture |
Powder Clutch | Shengda | China |
Web Guiding | EURDOW | CHINA |
Sensors | LONGYOU | CHINA |
Electric components | CHINT | CHINA |
Gears&Bearings | HAERBING | CHINA |
Power Board | Meanwell | China |
Power Switch | Schneider | Germany |
Random Accessories
Hexagon | 1 set |
10 "adjustable wrench | 1 pc |
6"adjustable wrench | 1 pc |
Phillips screwdriver | 1 pc |
Belt | 2 pcs |
Air gums | 1 pc |
Magnetic Cylinder Supporter | 3 pcs |
Button | 5 pcs |
