MWU
MWELLPACK

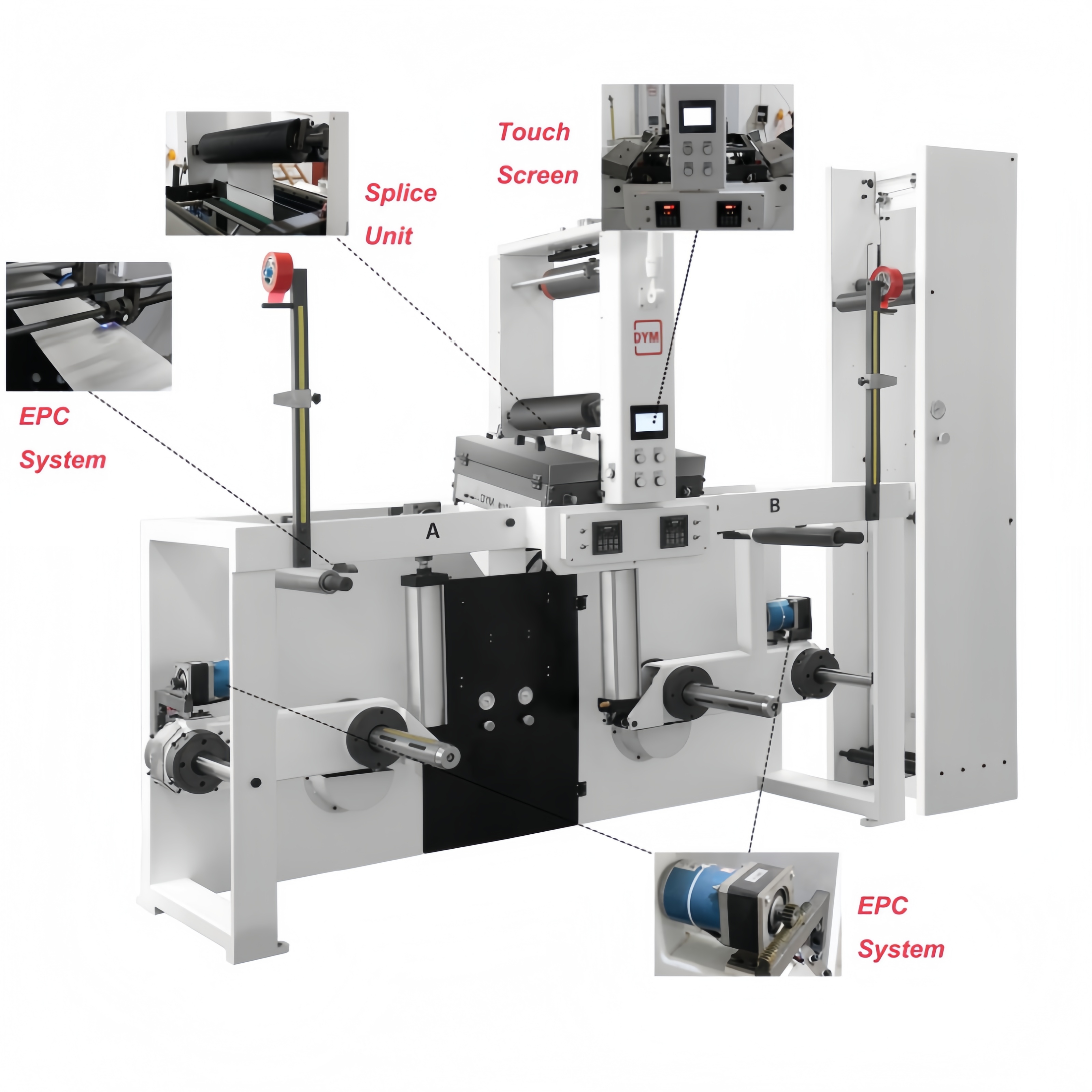

MWU Automatic Butt Splicer Unwinder
Features
Servo-controlled operation with 100% successful paper splicing rate
Features a stable tension control system with a unique tension coupling method
Dual-side tape application (front and back surfaces)
Equipped with maintenance-free storage racks

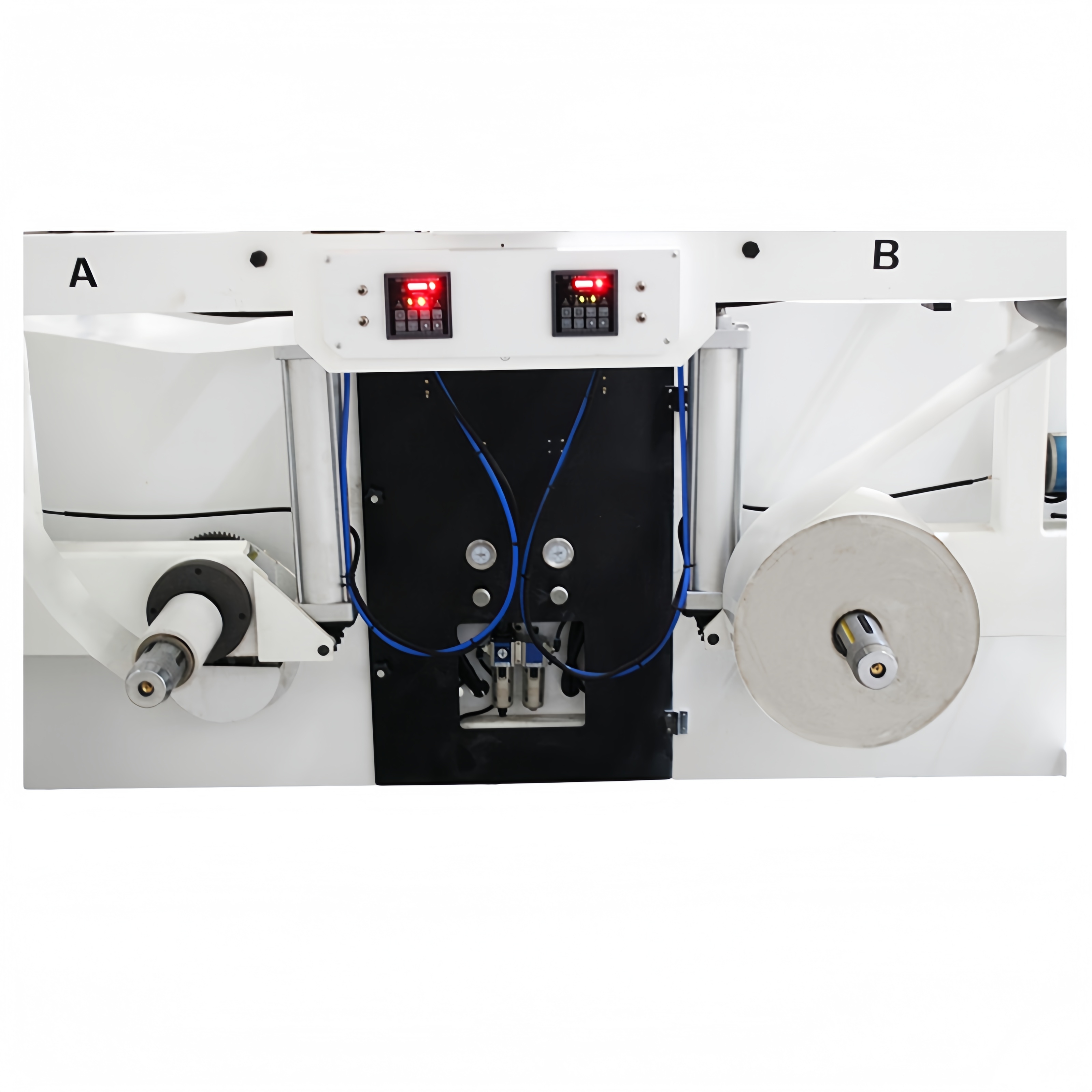

Independent web guide control for A/B axes
User-friendly material placement system
Pneumatic lift loading system enabling one-person operation without tools
Options
Secondary Tension Control System
Automatic Color Mark Tracking
Maximum operating speed: 250 m/min
Materials Range
Paper material: 60–400 gsm
Plastic film material: ≥ 25 μm (minimum thickness)
Applicable tube type: Laminated ABL/BPL tube
Main technical variables
Model | MWU-350 | MWU-450 | MWU-550 |
Max Web Width | 350mm | 450mm | 550mm |
Maximum Unwinding Diameter | Φ800 | Φ800 | Φ800 |
Max Machine Speed | 180m/min | 180m/min | 180m/min |
Unwinding Connect Paper Time | 2sec | 2sec | 2sec |
Way Of Connect Paper | Oblique splice | Oblique splice | Oblique splice |
Angle Of Paper Connect | 10° | 10° | 10° |
Pick Up Material Aligned | Laser positioning | Laser positioning | Laser positioning |
Total Power | 6kw | 6kw | 11kw |
Voltage | 380V/50hz, 3phase | 380V/50hz, 3phase | 380V/50hz, 3phase |
Unwind Paper Connect Mode | manual / winding diameter | manual / winding diameter | manual / winding diameter |
Unwind Tension Precision | ±2% | ±2% | ±2% |
Machine Weight | 1700kgs | 1800kgs | 1900kgs |
Machine Specifications (LxWxH) | 2500x1100x2400mm | 2500x1200 x 2400mm | 2500x1350 x 2400m |
