MWG-370P
MWELLPACK
https://www.youtube.com/embed/NsV7n1dTPlI?si=Vk_KRh1YqjpMZKWg
MWG-370PLUS Automatic Sticker Label Delam/Relam Finishing Machine for Composite Materials
Machine Video
Working path

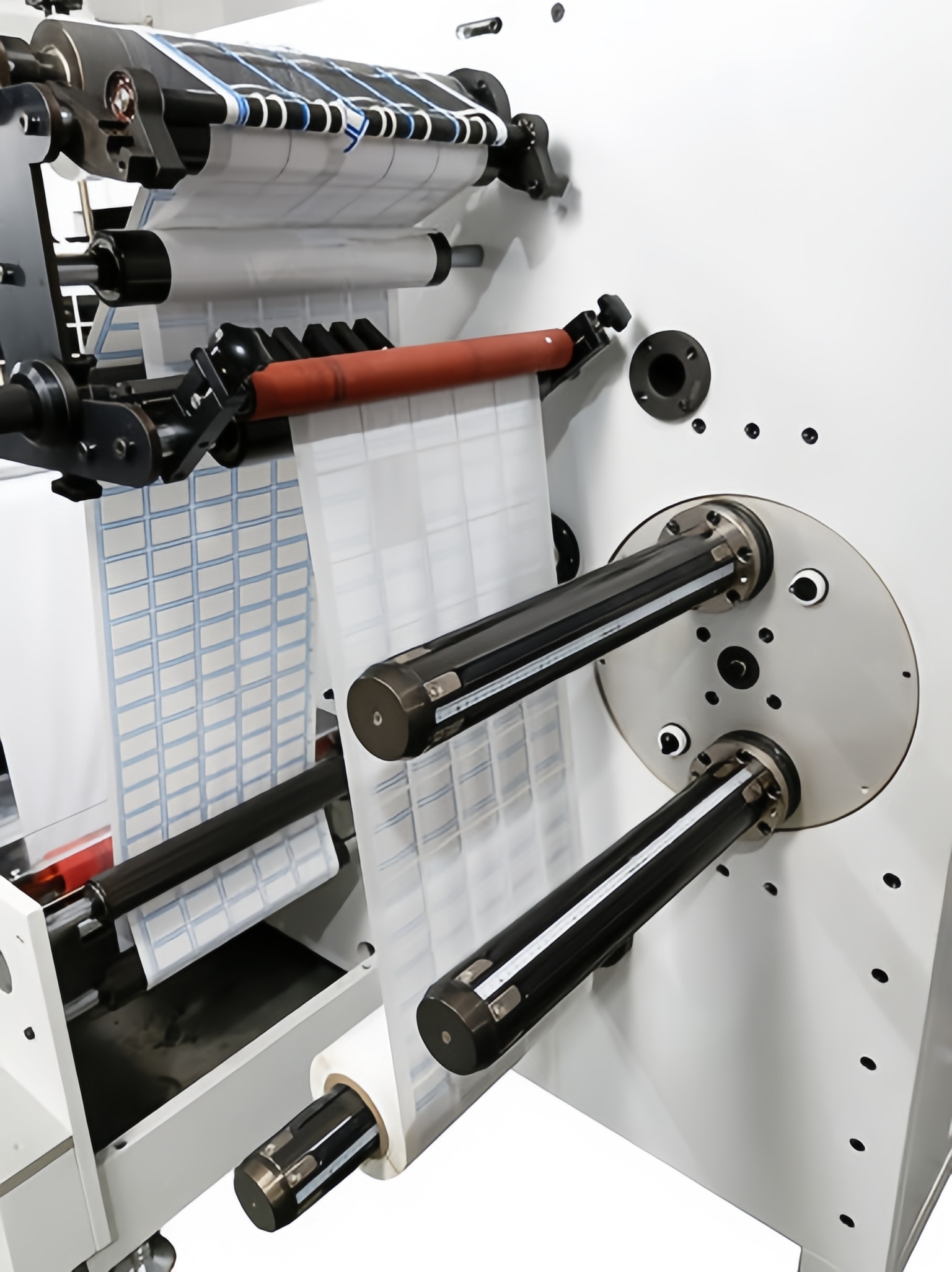

Unwind--web guide--Buffer unit--Delam--flexo printing--Relam--Turn bar--die-cutting--Snowball waste rewinder--Semi-turret rewinder/rewinder
Features

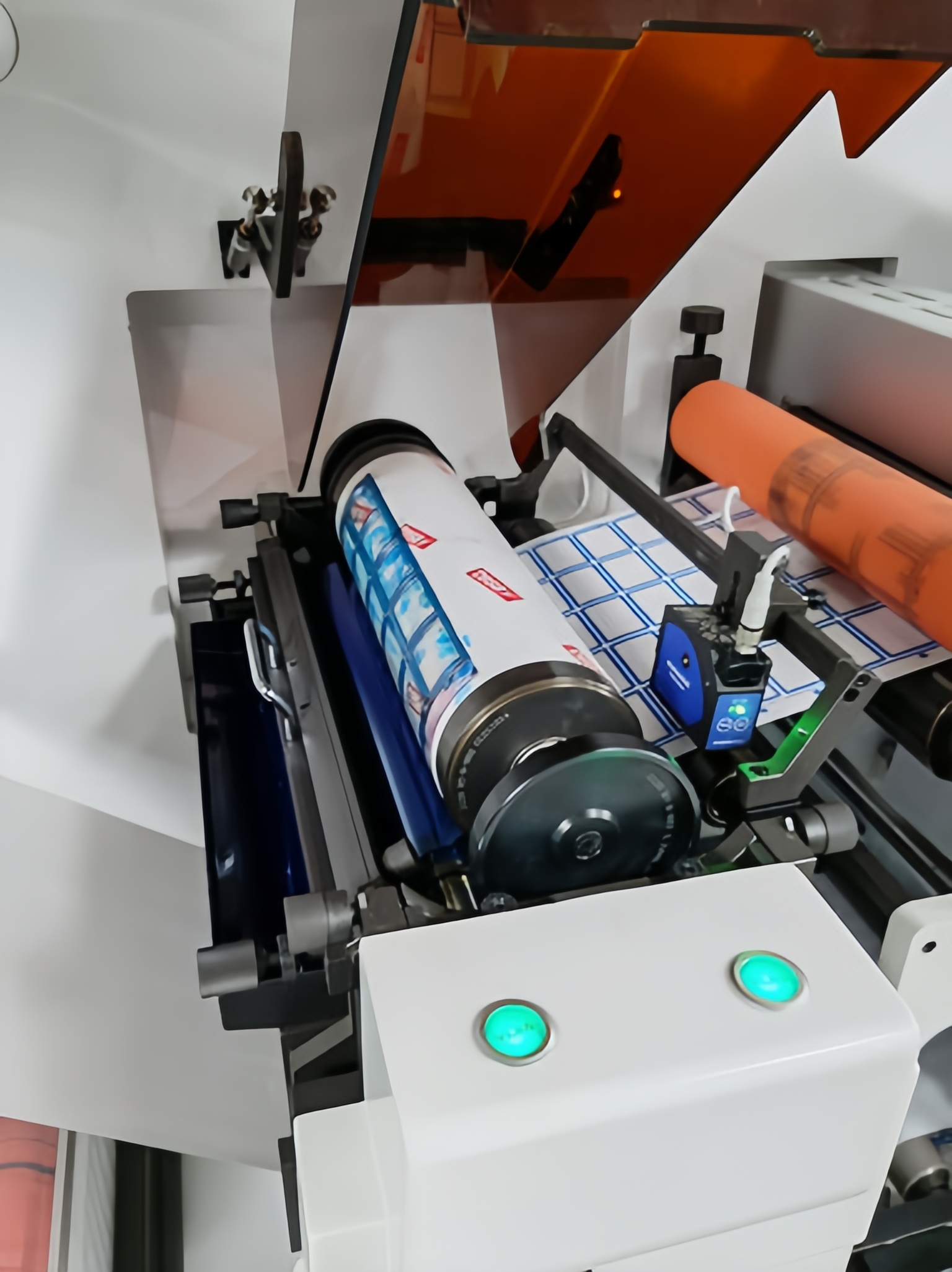

I: Semi/full Flexo station
-Servo drove tension control, quick removal of ink cassette, easy mounting of the doctor blade.
-Multi-function: UV laminating, varnishing, cold foil, or printing.
-the semi-rotary unit uses for spot varnish.
One key interchange between semi & full flexo mode.
II. Semi/Full rotary die-cutting unit
-Servo driven
-1 magnet cylinder
-Automatic registration for 2nd pass
-Waste rewind
-One key exchanged full and semi mode
III: Buffer Unit

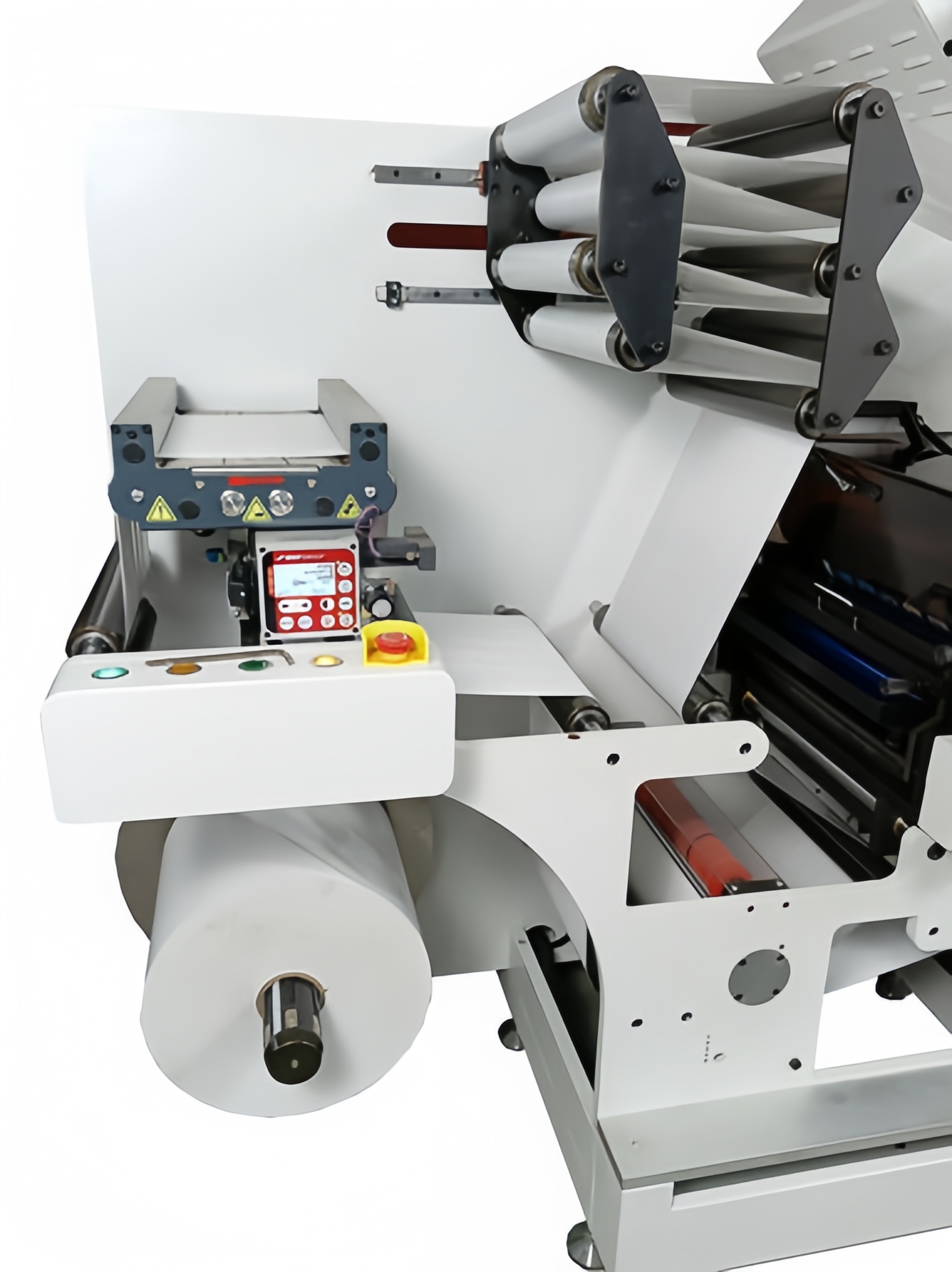

IV: Turn bar
V: Delam/Relam
VI: Automatic registration system
-Accurate, fast, and easy operation,
the registered waste is controlled within 1~2meter.
F. Additional:
-Moveable Touch Screen operation interface.
-Deviation rectification control
-Corona Unit
-Gap master and pressure meter
Main Parameter
Model | 370Delam/Relam | 420Delam/Relam | 520Delam/Relam |
Maximum Unwind OD: | 700mm | 700mm | 800mm |
Maximum Rewind OD: | 700mm (500mm for upper rewind) | 700mm (500mm for upper rewind) | 800mm (50Omm for upper rewind) |
Maximum Waste OD | 600mm | 600mm | 600mm |
Maximum Web Width: | 380mm | 430mm | 530mm |
Maximum Die Cutting Width |
370mm | 420mm | 520mm |
Maximum Speed(Semi Rotary): | 60m/min(300repeat/min) | 60m/min(300repeat/min) | 60m/min(300repeat/min) |
Maximum Speed(Full Rotary): | 120m/min | 120m/min | 120m/min |
Semi Rotary Die Cutting Repeat Range: | 50mm-300mm (12OT magnet cylinder) | 80mm-400mm (16OT magnet cylinder) | 80mm-400mm (160T magnet cylinder) |
Registration Accuracy: | ±0.15mm | ±0.15mm | ±0.15mm |
Power supply(Including UV): | 380V,3phases,18KW | 380V,3phases,18KW | 380V,3phases,18KW |
