MWG-330M
MWELLPACK
8422303090
https://www.youtube.com/embed/P9b-K2xVWok?si=OpqnzPRm-h0JVzue

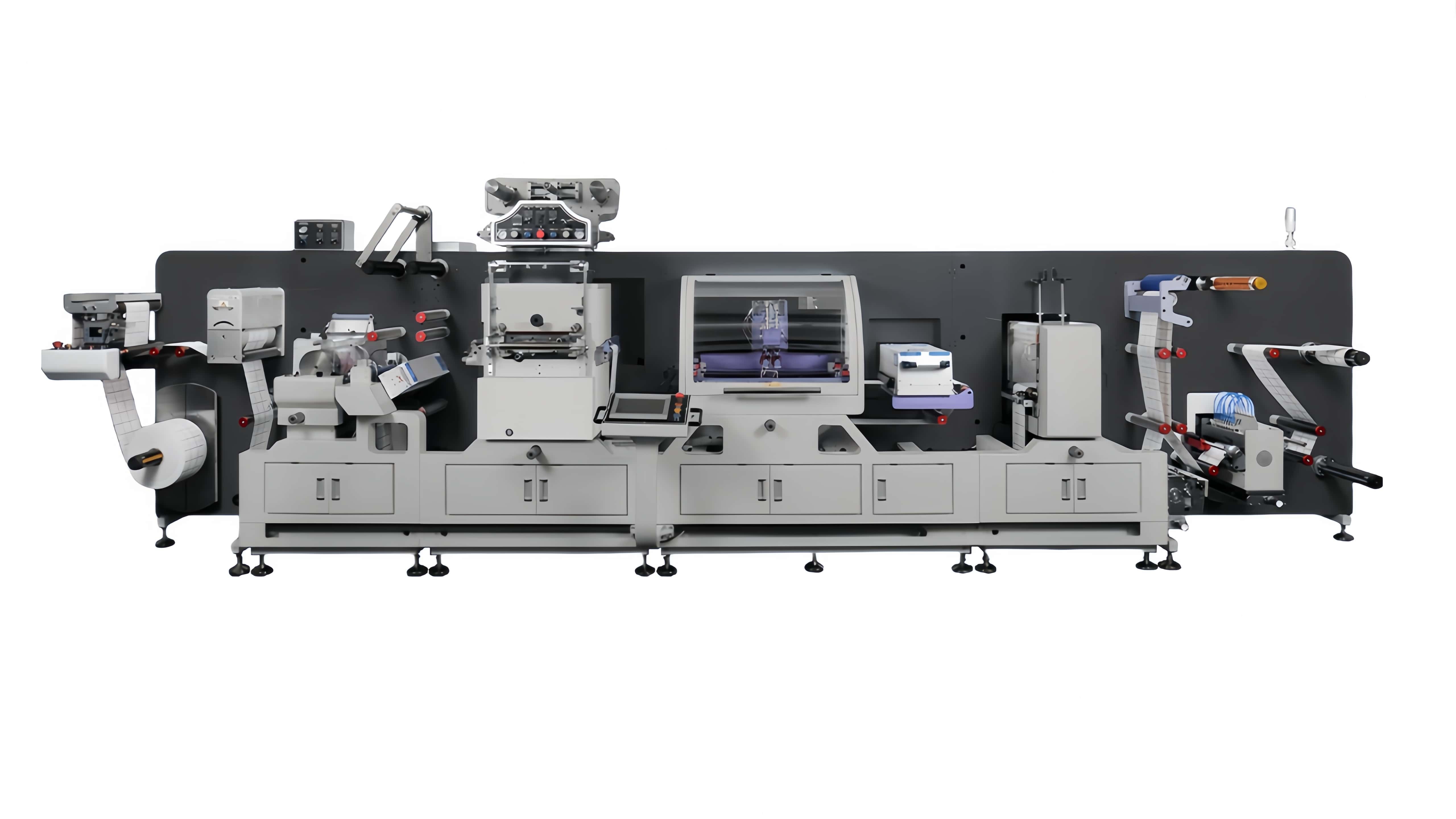

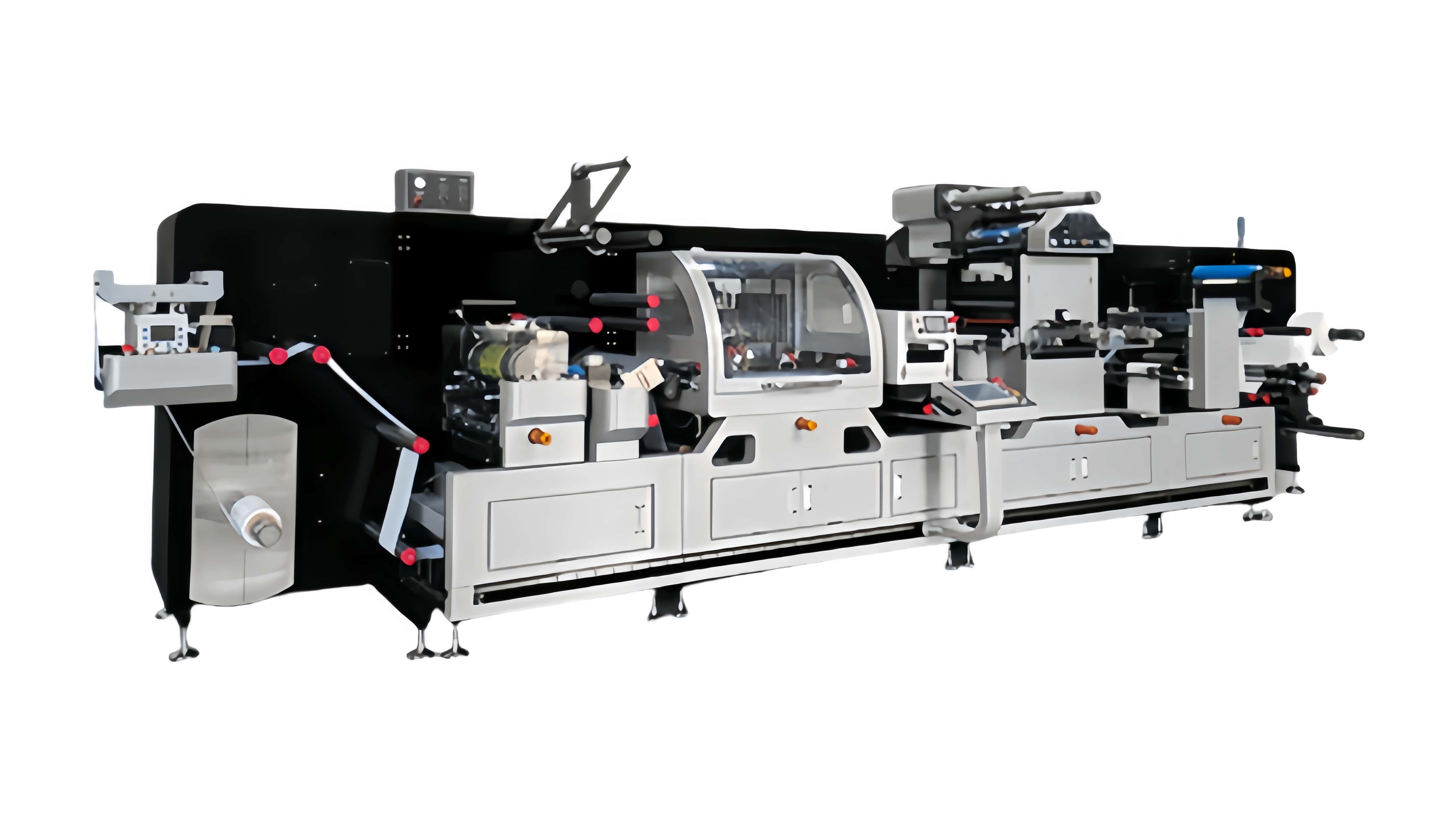

MWG-330M Printing And Die Cutting Label Converting Finishing Machine
Optimized Description:
This cutting-edge labeling system integrates 2 flexo printing units, 2 semi-rotary die-cut units, and a precision slitting module, delivering unmatched efficiency and superior finishing for packaging applications. Purpose-built for the demands of modern production lines, its modular design ensures seamless workflow integration, enabling high-speed, high-quality label conversion with minimal waste. Engineered for versatility, it handles diverse substrates-from paper to synthetic films-while maintaining tight registration and intricate die-cutting precision, making it the ideal solution for brands prioritizing operational excellence and premium label output.
Consists of 4 main workstations and 2 additional workstations
All functional modules can be customized by users, and functional modules can also be modified or added after being put into production.
The whole machine is driven by servo motor, and the unprecedented processing speed and processing accuracy are provided by servo
motors imported from Germany;
The circuit and pneumatic system of the whole machine are highly integrated, requiring only one employee to operate a PLC controller
TECHNICAL PARAMETERFS
FLEXO Printing | |||
PRINTING TYPE | SEMI-ROTARY | FULL ROTAR FLEXO | SCEEEN PRINTING |
MAX.PRINTING AREA | 350X1000MM | WIDTH 350MM | 350X420MM |
MAX.SPEED | 60M/MIN | 120M/MIN | 40M/MIN |
PRITING ACCURACY | +-0.15MM | ||
MAX.PRINTING WIDTH | 350MM | 450MM | 550MM |
NK TYPE | WATER | ||
FLAT DIE-CUTTING : HOT STAMPING | |||
MAX.STAMPING AREA | 350X335MM | ||
MAX.STAMPING SPEED | 300TIMES/MIN | ||
PLATE HEIGHT | 7-23MM | ||
PAD THICKNESS | 0.5-3.0MM | ||
DIE-CUTTING | |||
CUTTING TYPE | FULL-ROTARY | SEMI-ROTARY | FLAT |
MAX.SPEED | 120M/MIN | 60M/MIN | 40M/MIN |
MACHINE | |||
POWER | AC 380V 50HZ | AIR | 0.8MPA |
