MWG-330C
MWELLPACK

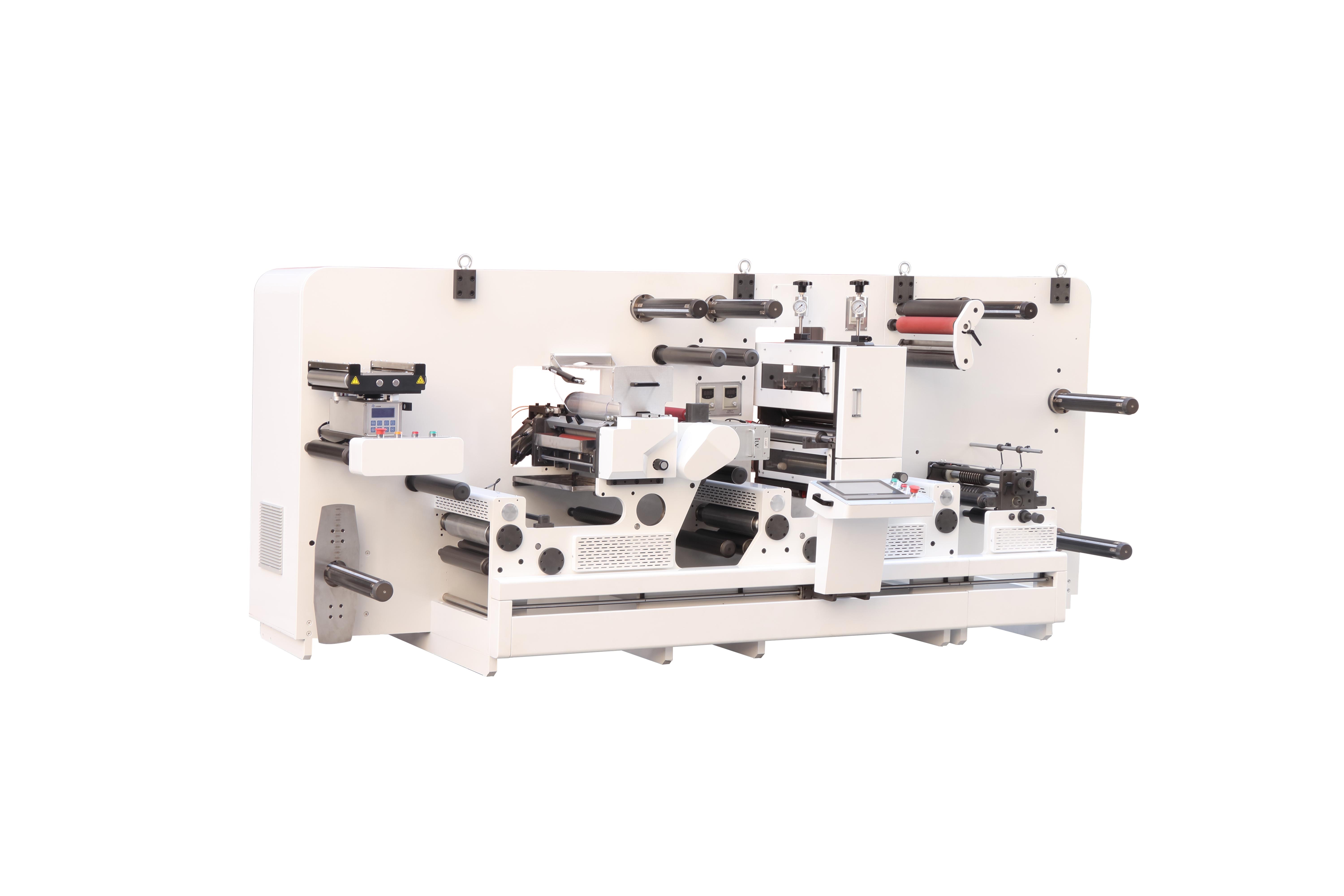

MWG-330C Flexo Printing And Semi-rotative Die Cutting Finishing Machine
Character:
This equipment is the latest research and development product of point machinery, equipped with full-wheel-turn/intermittent flexo unit, full-wheel-turn/intermittent die-cutting unit,split cutting unit,etc., in flexo printing, cold stamping, light, laminating, die-cutting, slitting,sheeting, etc.. Adopt advanced servo control system, humanized operation interface, greatly improve product quality and production efficiency. Availibility of the latest turnround and intermittent interchangeable technologies. Suitable for digital printing label short order and medium and long order die-processing.
MODEL | MWG-330C |
Max,.Running Speed | Rotary 120m/min,intermittent300times/min |
Max. Web Width | 330mm |
Printing Repeat | 200mm-450mm |
Reprinting Precision | ± 0.15mm |
Die Cutting Repeat | 50mm-444.5mm |
Die Cutting Precision | ± 0.15mm |
Max. Unwinding Dia. | 800mm |
Max. Up Rewinding Dia. | 600mm |
Max. Down Rewinding Dia. | 800mm |
Rewind Inner Core Size | 1inch-6inch (standard in 3inch) |
Thickness Of Material | 20um-300um |
Air Source | 0.8Mpa |
MWG-330C Flexo Printing And Semi-rotative Die Cutting Finishing Machine
Character:
This equipment is the latest research and development product of point machinery, equipped with full-wheel-turn/intermittent flexo unit, full-wheel-turn/intermittent die-cutting unit,split cutting unit,etc., in flexo printing, cold stamping, light, laminating, die-cutting, slitting,sheeting, etc.. Adopt advanced servo control system, humanized operation interface, greatly improve product quality and production efficiency. Availibility of the latest turnround and intermittent interchangeable technologies. Suitable for digital printing label short order and medium and long order die-processing.
MODEL | MWG-330C |
Max,.Running Speed | Rotary 120m/min,intermittent300times/min |
Max. Web Width | 330mm |
Printing Repeat | 200mm-450mm |
Reprinting Precision | ± 0.15mm |
Die Cutting Repeat | 50mm-444.5mm |
Die Cutting Precision | ± 0.15mm |
Max. Unwinding Dia. | 800mm |
Max. Up Rewinding Dia. | 600mm |
Max. Down Rewinding Dia. | 800mm |
Rewind Inner Core Size | 1inch-6inch (standard in 3inch) |
Thickness Of Material | 20um-300um |
Air Source | 0.8Mpa |
