MWT-330DD
MWELLPACK

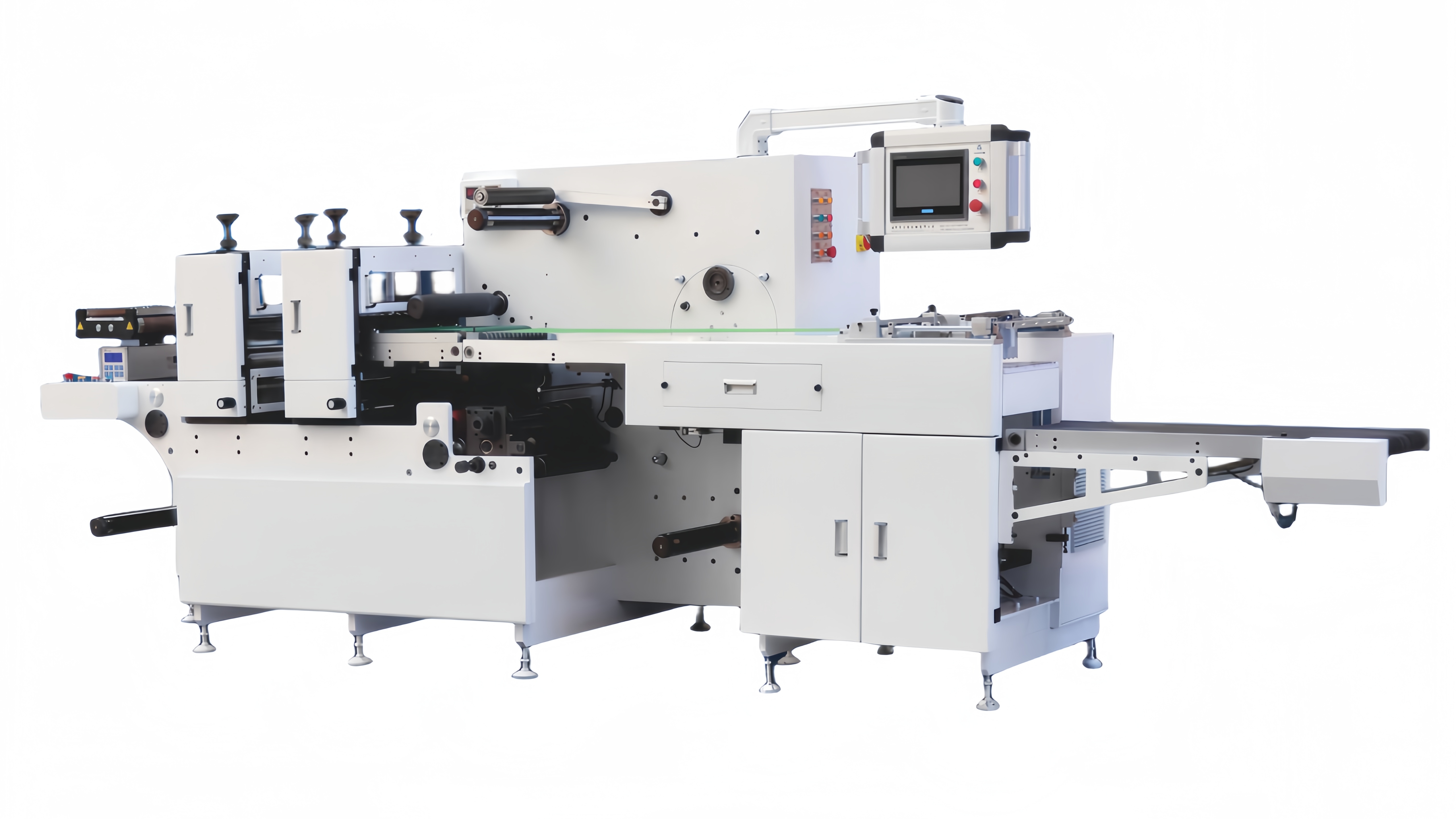

MWT-330DD Full Rotary And Intermittent Die Cutting Machine
MWT-330DD adopt rotary die cutting process technology, can run both semi rotary and full rotary, meet different order requirement.Machine is with auto stack for finish product to save labor cost.
Configuration:
1 x Unwind Reel stand unit with max. Diameter 800mm on 76mm air shaft，with magnetic brake
1 x Electronic sensing web guide with ultrasonic sensor, with splice table.
1 x Full rotary Die cutting unit for blank label, without magnetic cylinder
1 x waste matrix rewind with diameter 600mm
1 x Slitting unit with 8 pcs scissor slitting blade, min slitting width 15mm
1 x up turret rewind with diameter 280mm, and one down rewind with diameter 800mm, 76mm air shaft,
Sheet Cutting Unit
Model | MWT-450DD |
Max. speed | Rotary 120m/min, Intermittent 80m/min |
Max. web width | 370mm |
Die cutting repeat | 100-420mm |
Stacker height | 100mm |
Die cutting precision | ±0.15mm |
Max. unwind dia. | 800mm |
Max. down rewind dia. | 800mm |
Rewind inner core size | 1-6 inch (standard in 3 inch) |
Thickness of material | 20-300μm |
Air source | 0.8Mpa |
