| Quantity: | |
|---|---|

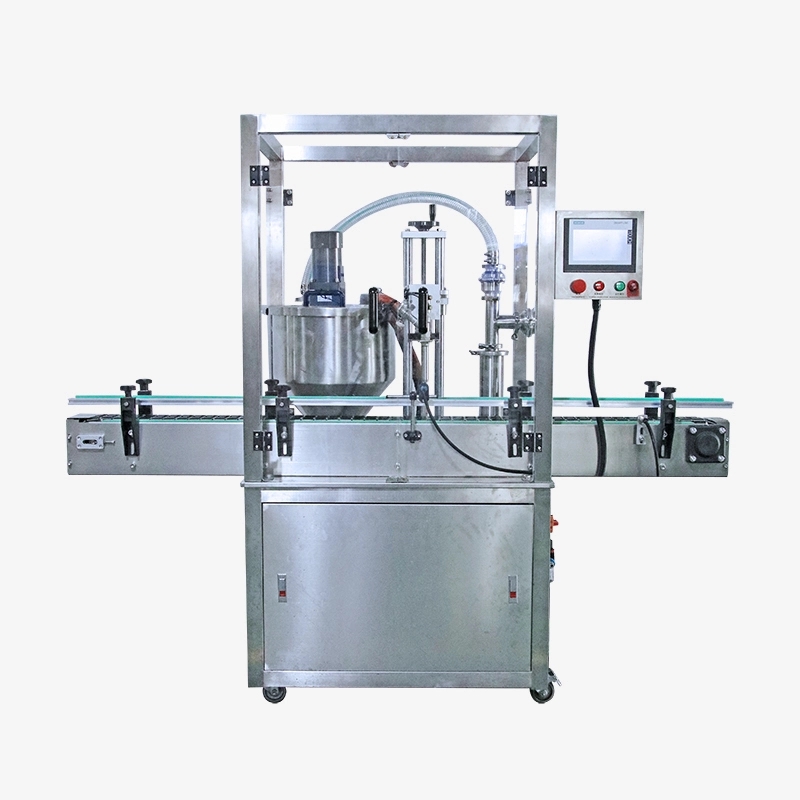

The machine is suitable for filling all kind of liquids such as juice,wine,jam,mineral water,shampoo,etc.
1,The trough, filling nozzle and liquid contact parts are made of 304# stainless steel and food grade PVC.
2, pneumatic components: Taiwan AIRTAC.
3,Program controller (PLC): Siemens, Germany.
4, man-machine interface: Germany Siemens 7-inch color touch screen.
5, photoelectric sensor: Germany LEUZE or Germany SICK.
6, relays and air switches: France Schneider.
7, pumping pump: domestic stainless steel gear pump.
8, motor inverter: the United States AB, France Schneider or Germany Siemens.
9,Conveyor belt material: 82mm wide stainless steel chain belt.
10, conveyor belt motor: domestic brand AC motor.
11,Filling machine sealing ring material: silica gel, fluorine rubber, polytetrafluoroethylene.
12, machine cover: stainless steel and plexiglass.
13,Exposed parts: stainless steel, anodized aluminum alloy, electroplated 45# Steel, engineering plastic parts.
Parameter:
Size Chart of This Design
6Number of filling heads | 6 | |
Filling capacity | 50ML-5000ML | |
Filling form | equal liquid level self-flow type | |
Filling speed | 30-35 bottles / min | |
Filling accuracy | ±1% | |
Material | 304 stainless steel | |
Program control | PLC+ touch screen | |
Air pressure | 0.6-0.8 MPa | |
Conveyor belt speed | 0-15 m / min | |
Voltage (In China) | AC220V 50/60HZ Single phase | |
Power(w) | 1KW | |
Weight(kg) | 500kg | |
Machine size | 3200(L) 1200 (W) 2100 (H) mm |
The machine is suitable for filling all kind of liquids such as juice,wine,jam,mineral water,shampoo,etc.
The machine is suitable for filling all kind of liquids such as juice,wine,jam,mineral water,shampoo,etc.
1,The trough, filling nozzle and liquid contact parts are made of 304# stainless steel and food grade PVC.
2, pneumatic components: Taiwan AIRTAC.
3,Program controller (PLC): Siemens, Germany.
4, man-machine interface: Germany Siemens 7-inch color touch screen.
5, photoelectric sensor: Germany LEUZE or Germany SICK.
6, relays and air switches: France Schneider.
7, pumping pump: domestic stainless steel gear pump.
8, motor inverter: the United States AB, France Schneider or Germany Siemens.
9,Conveyor belt material: 82mm wide stainless steel chain belt.
10, conveyor belt motor: domestic brand AC motor.
11,Filling machine sealing ring material: silica gel, fluorine rubber, polytetrafluoroethylene.
12, machine cover: stainless steel and plexiglass.
13,Exposed parts: stainless steel, anodized aluminum alloy, electroplated 45# Steel, engineering plastic parts.
Parameter:
Size Chart of This Design
6Number of filling heads | 6 | |
Filling capacity | 50ML-5000ML | |
Filling form | equal liquid level self-flow type | |
Filling speed | 30-35 bottles / min | |
Filling accuracy | ±1% | |
Material | 304 stainless steel | |
Program control | PLC+ touch screen | |
Air pressure | 0.6-0.8 MPa | |
Conveyor belt speed | 0-15 m / min | |
Voltage (In China) | AC220V 50/60HZ Single phase | |
Power(w) | 1KW | |
Weight(kg) | 500kg | |
Machine size | 3200(L) 1200 (W) 2100 (H) mm |
The machine is suitable for filling all kind of liquids such as juice,wine,jam,mineral water,shampoo,etc.
