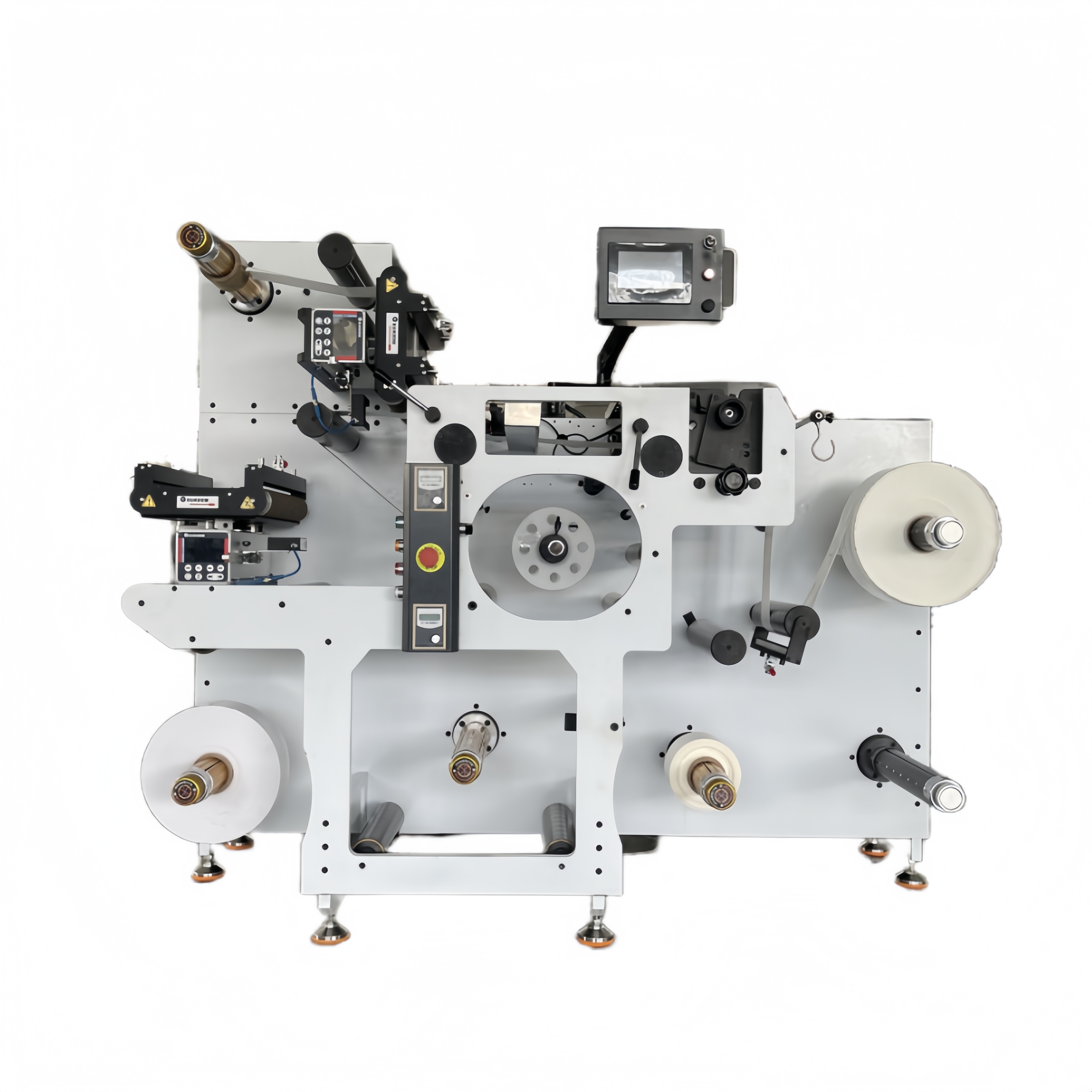

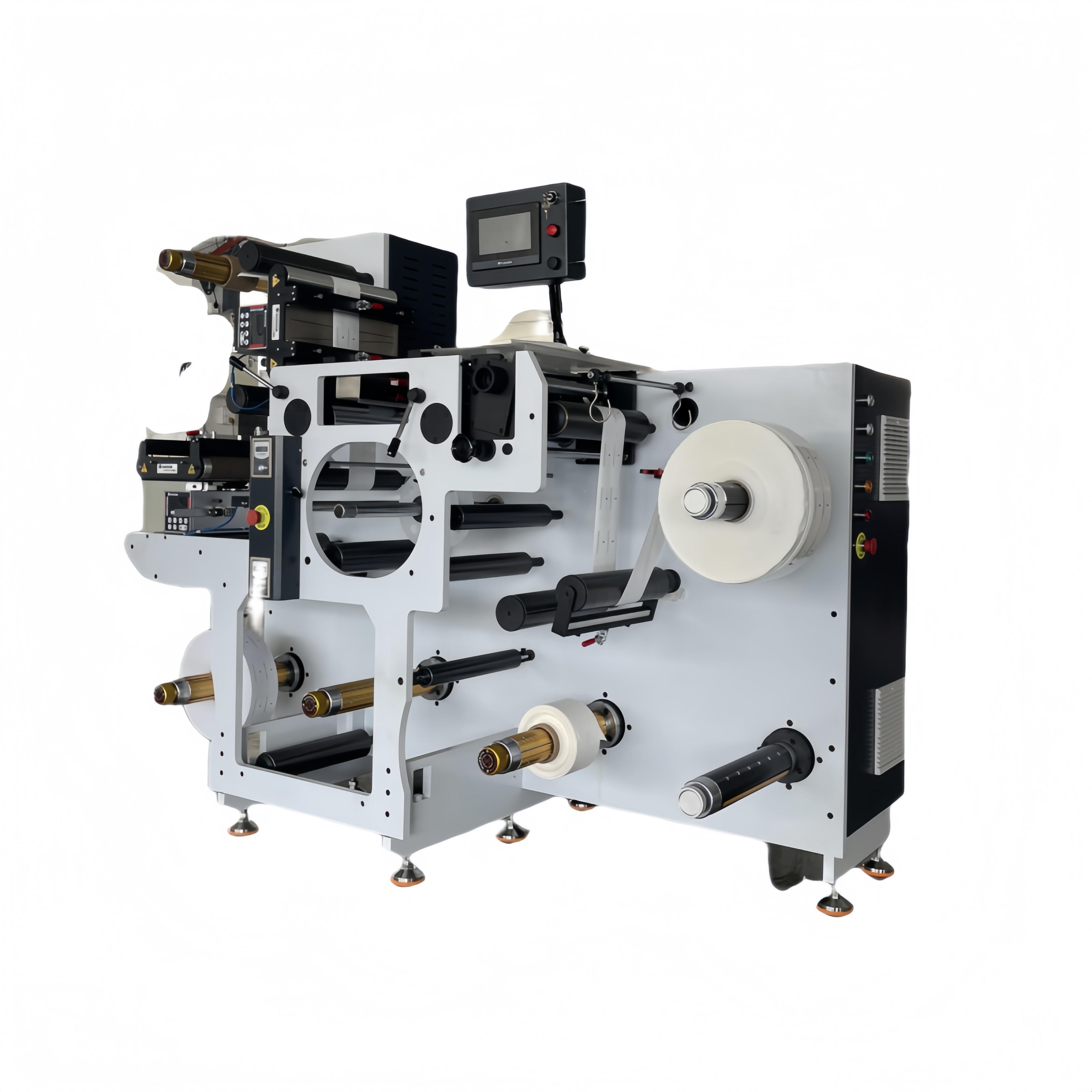

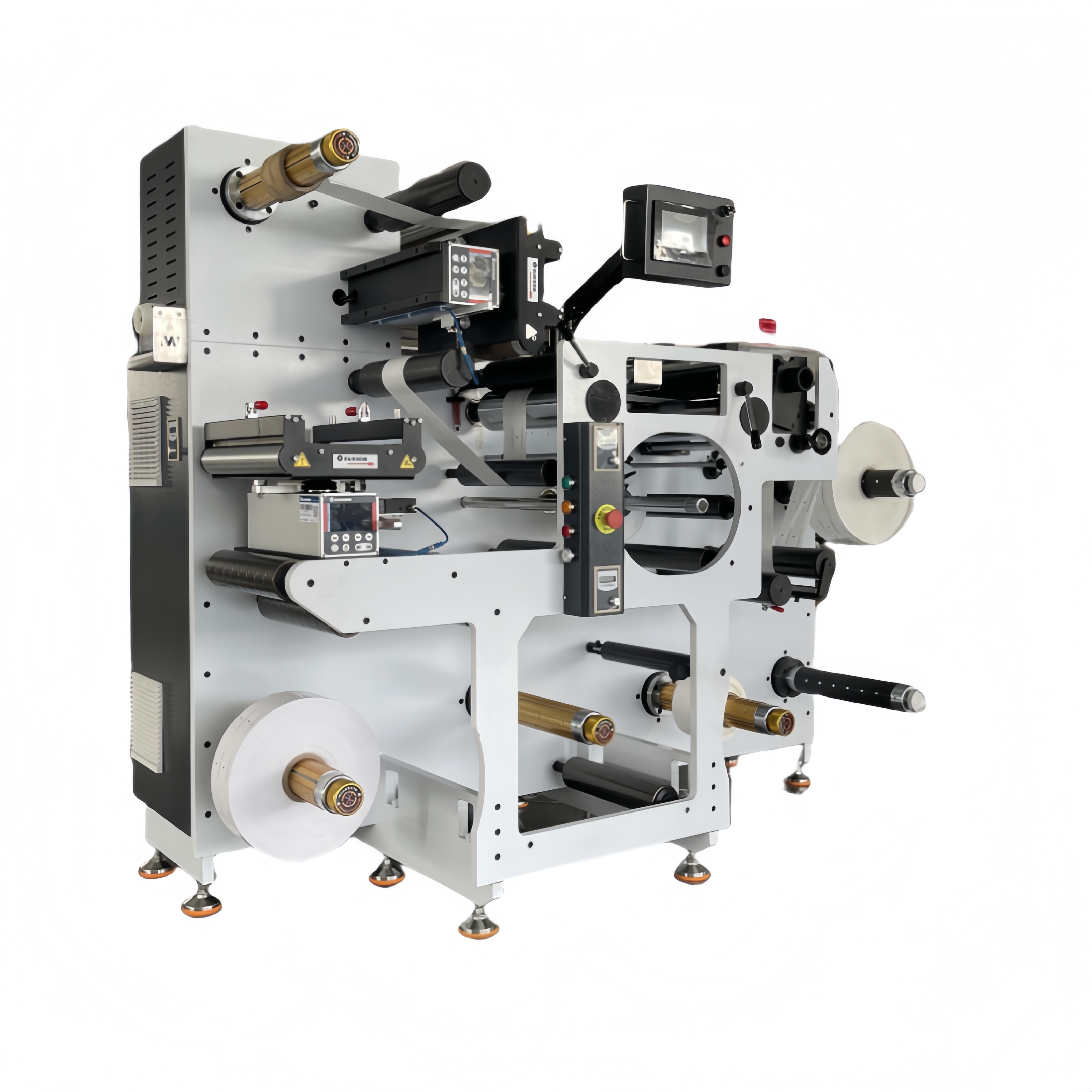

MW-MPS330 Multi-layer Label Multifunctional Positioning Laminating and Slitting Machine

The MW-MPS330 Multi-layer Label Multifunctional Positioning Laminating and Slitting Machine combines cutting-edge technology with robust design to revolutionize label processing. Its core functions include double-layer positioning lamination, precise slitting, and an interval adhesive device, enabling seamless production of complex multi-layer labels. The machine also features a waste edge collection system, edge guiding function, and an adjustable feeding shaft, ensuring high efficiency and minimal material waste. With a movable operation panel for easy control and CE certification for quality assurance, the MW-MPS330 is the perfect choice for businesses in the packaging, printing, and logistics sectors looking to enhance their label production capabilities.

Availability:
Quantity:
  • MW-MPS330

  • MWELLPACK

MW-MPS330 Multi-layer Label Multifunctional Positioning Laminating and Slitting Machine


Core Functions and Configurations

Double-Layer Positioning Lamination

Interval Adhesive Device

Bottom Paper Rewinding & Changing Device

Waste Edge Collection Function

Edge Guiding Function

Adjustable Feeding Shaft (for Interval Adhesive)

Movable Operation Panel


Main Parameter





Model

MW-MPS330

Max Material width

320 mm

Maximum rewinding and unwinding diameter

600 mm

Maximum compounding speed

50 m/min

Slitting speed

300 m/min

Color registration

sensor

Voltage

380V 50Hz 50A

Machine dimensions

2030x950X1600

Machine weight

1200 kg
