SLT-STC
MWELLPACK

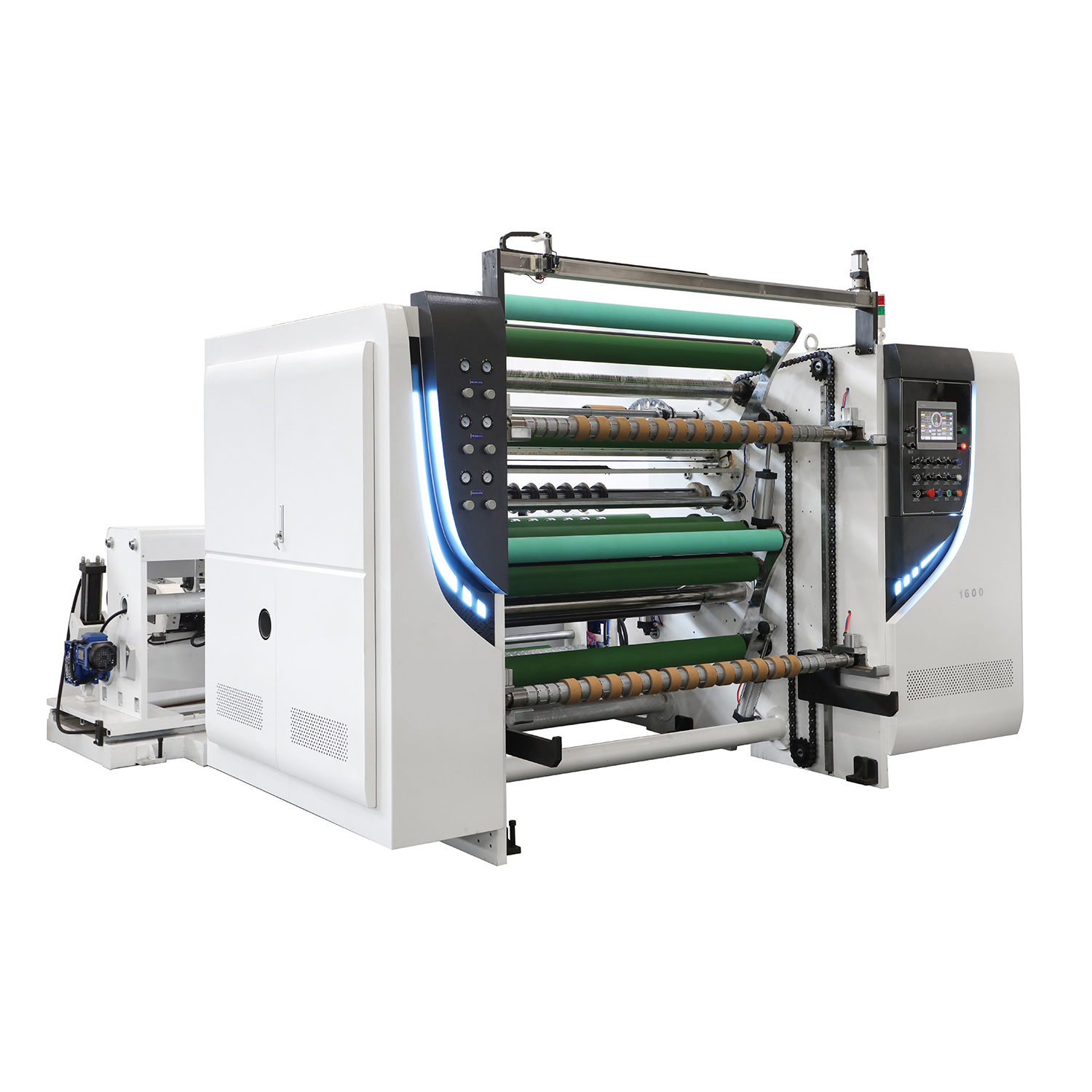

SLT-STC1600 BOPP Adhesive Tape Jumbo Roll Slitting Rewinding Machine
Use:
Machine in this series are mainly suitable for vertical stripping of reel-shape materials such as paper, aluminum, and composite plastic paper.
Feature:

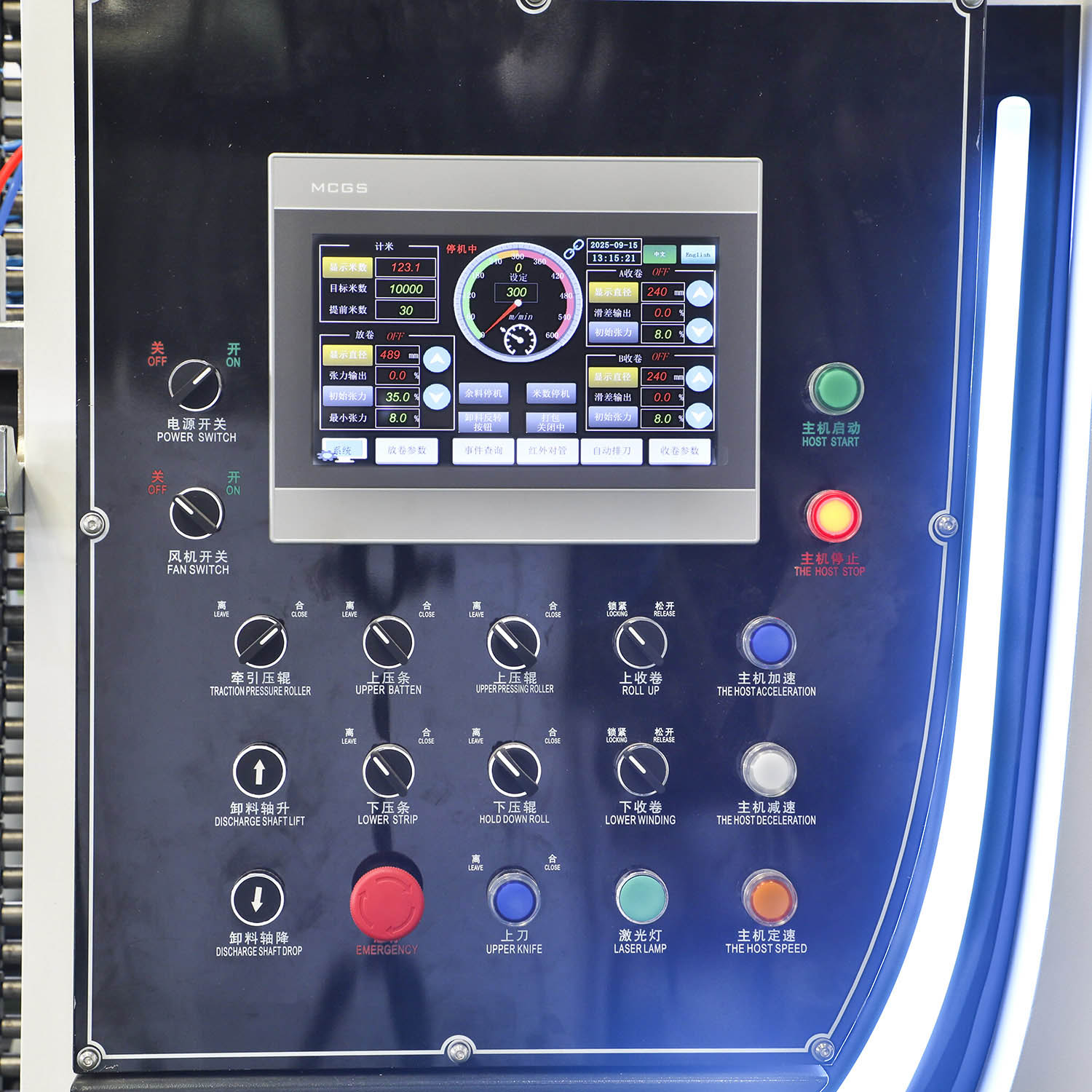

1. Adopts full servo motors and PLC control, ensuring precise and stable operation;
2. The unwinding and feeding section is equipped with a shaftless feeding and hydraulic lifting device, with a maximum load capacity of 2 tons and a maximum unwinding diameter of up to 1200mm, compatible with 3-inch and 6-inch paper cores; it is also fitted with noise-reducing rollers, which greatly reduces the operating noise of adhesive tape materials;
3. Equipped with an automatic deviation correction function, ensuring the cutting accuracy of materials;
4. Features an anti-adhesive coating design; all roller surfaces are treated with Teflon technology, making it suitable for adhesive-coated films and paper roll products;
5. Equipped with a full-automatic upper and lower row circular knife positioning system, allowing flexible and automatic adjustment of slitting length;
6. Equipped with straight knives and an integrated knife shaft, enabling convenient and efficient slitting width adjustment and installation;

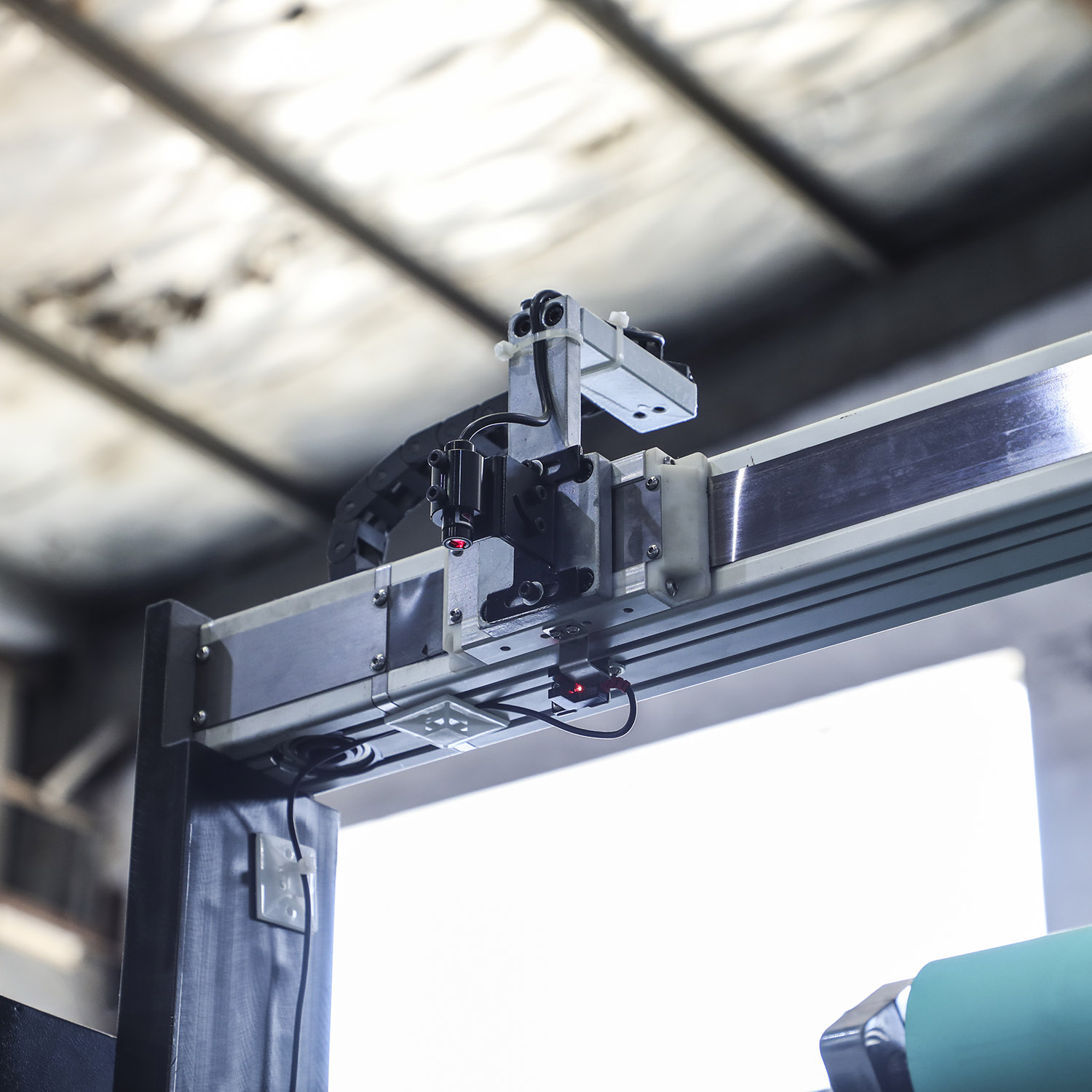

7. Equipped with a full-automatic laser guidance function for paper core placement, supporting touchscreen setting and automatic positioning; the maximum winding diameter is up to 800mm;
8. Equipped with a chain-type automatic unloading device, with a maximum lifting weight of 500kg, effectively saving labor costs.
Main technical parameter :
Model | SLT-STC1600 |
Material Thickness | 0.01-0.2mm |
Max. Width of roll material | 1600mm |
Max. Diameter of roll material | 1200mm |
Max. Diameter of rewinding roll | 800mm |
Min. Width of splitting | 25mm |
Slitting Speed | 0-300m/min |
Total Power | 20kw |
Overall dimension ( L x W x H mm) | 6000x3000x1850 |
Weight | 4500kg |
