Application:

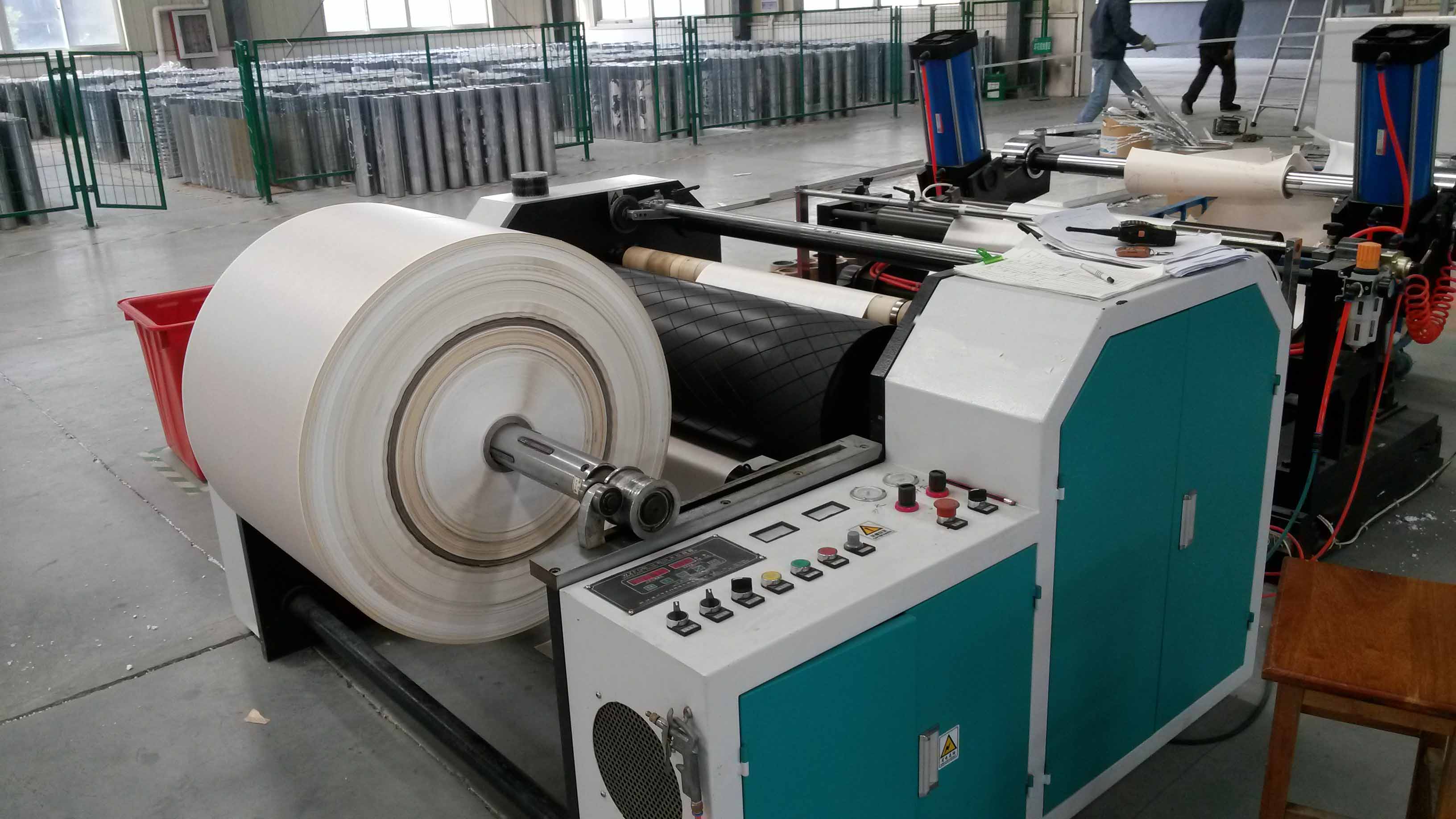

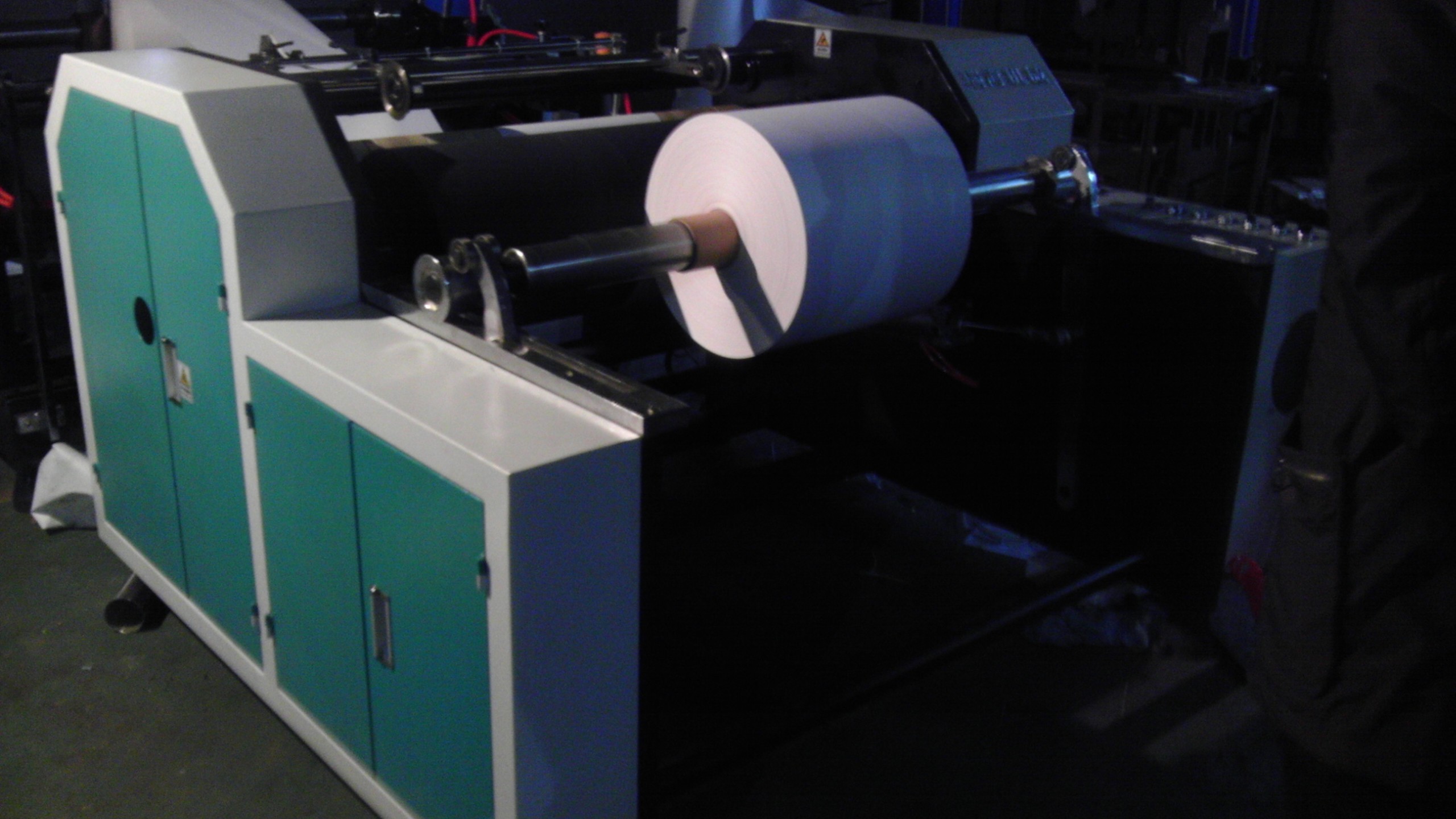

This machine is suitable for rewinding roll paper, plastic sheet, plastic transfer film, insulating material and other materials.
Features:
1.The host is equipped with frequency conversion speed regulation
2.Photoelectric automatic deviation correction control system.
3. Surface contact winding is adopted.
4.It also has functions such as preset meter counting and automatic shutdown.
| model | 800 type |
| Maximum Raw Width | 800mm |
| Inner diameter of winding paper core | Φ76mm (optional) |
Rewinding diameter | Φ1000mm |
| Total machine power | 5.5kw |
| Dimensions | 2000×2200×1300mm |
| machine weight | 2800kg |
Basic configuration
The host adopts frequency conversion pole speed regulation (5.5kw)
1. The winding adopts the key bar type air shaft structure (3 inches).
2. The winding adopts the surface winding method.
3. Automatic meter counting, alarming and automatic shutdown of prefabricated meters.
4. The whole machine adopts steel plate structure; the guide roller shafts are all treated with dynamic balance oxidation.
5. Using PLC control (Mitsubishi, Japan), touch screen (Taiwan Weilun)
