Function characteristics:

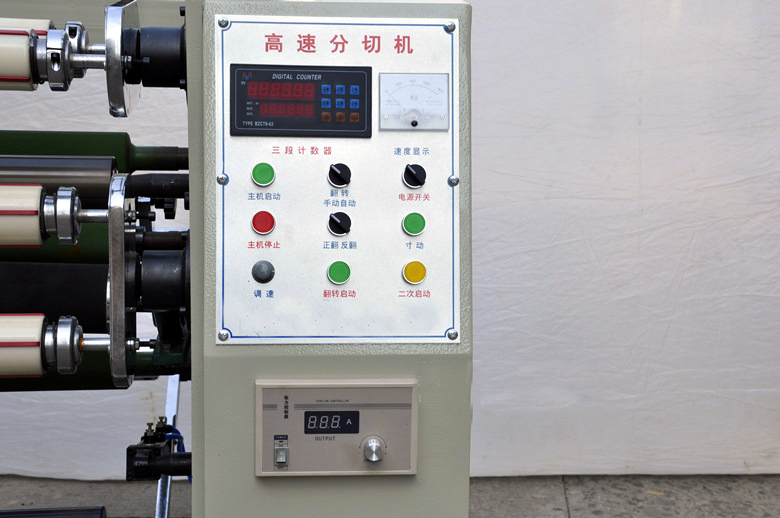

1, simplified operation control panel: This machine are centralized control, panel operation.
2, three length setting: advanced three section for counting, ensure accurate rewinding length.
3, automatic switching shaft: rolling operation is completed, a two-axis automatic exchange, simple operation, high efficiency.
4, label: label instructions at length after the automatic shutdown, on a platform attached indicating film export label mark of the paste.
5, after feeding way: from the operation surface on the rear side of material, a rubber pressing roller reduced peel away tape noise, and stable discharge.
Main technical:
Type | MW-SR1300 | MW-SR1600 |
Max. Width of Mother Roll | 1300mm | 1600mm |
Max. Diameter of Mother Roll | 800mm | 800mm |
Width of Final Roll | 24-1300mm | 24-1650mm |
Max. Diameter of Rewinding | 150mm | 150mm |
Internal Diameter of Roll Core | 76mm | 76mm |
Slitting and Rewinding Speed | 10-180m/min | 10-180m/min |
Tolerance of EPC | ±0.5mm | ±0.5mm |
Total Power | 1.5kw | 2.2kw |
Weigh t o f Machine | 1000kg | 1300kg |
Overall Dimension(L×W×H) | L2300×W2400×H1550mm | L2300×W2700×H1550mm |
