MWA-330HC
MWELLPACK

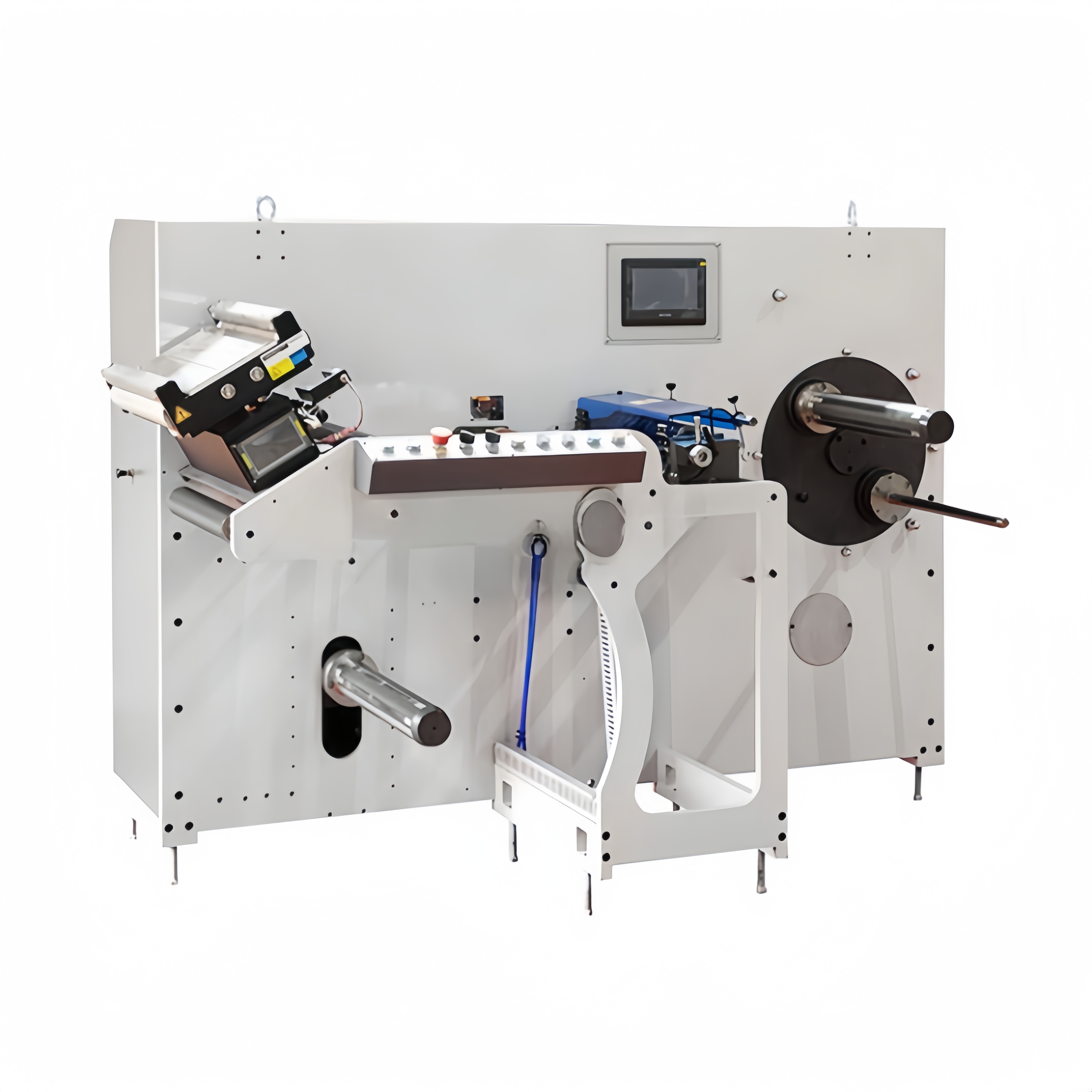

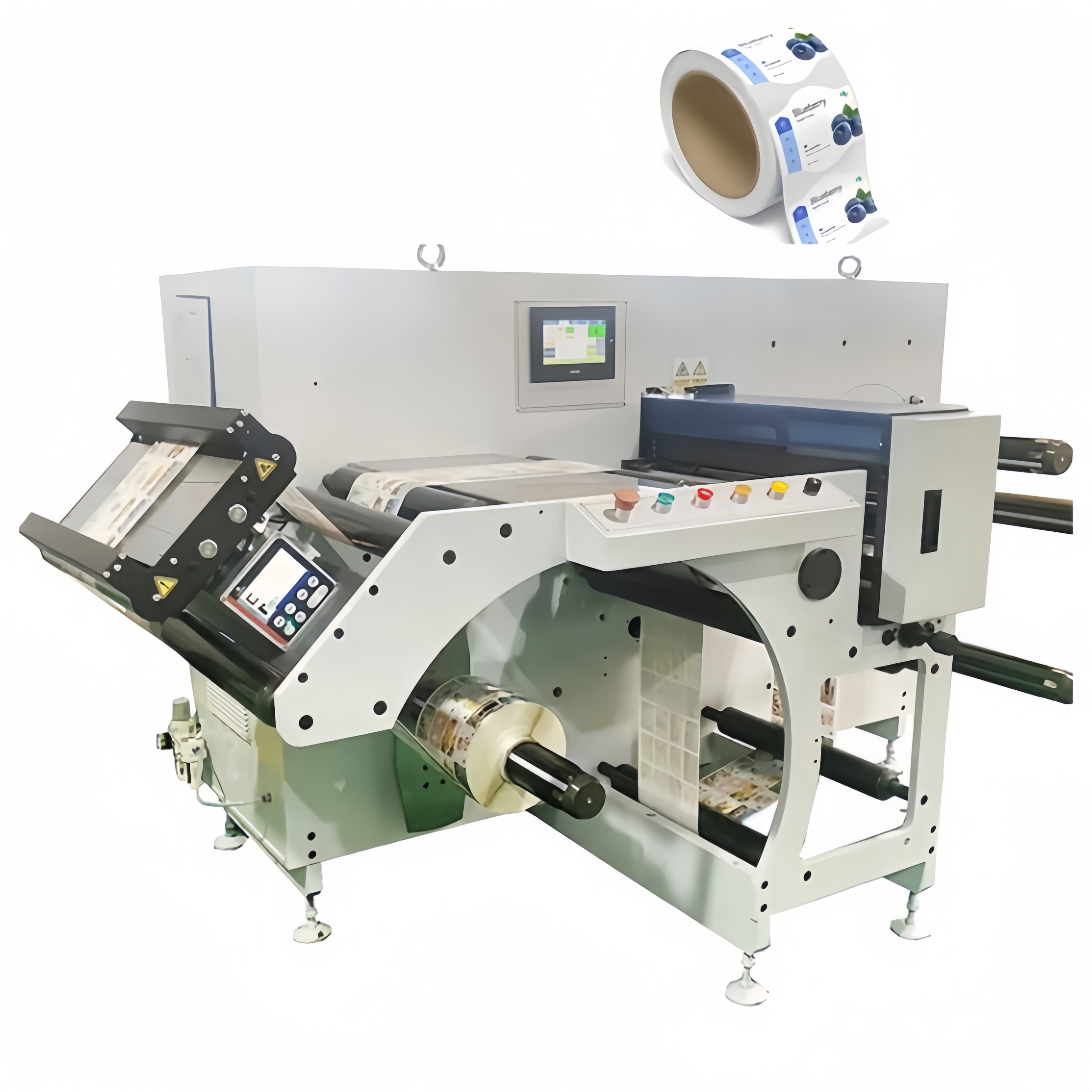

MWA-330HC Automatic Rotary Turret Film Slitting & Rewinding Machine
MWA-330HC High speed Slitting Machine which mainly for Narrow web label slitting, lt Adopts full servo motor driven system, Taper Tension control system, International famous Web guide system. Turret type rewinding system, lt's suitable for different size inner cores slitting and rewinding.
Main Parameter
Model | MWA-330 | MWA-420 | MWA-480 |
Speed | 350m/min | 350m/min | 350m/min |
Max Feed web | 370 | 480 | 550 |
Max unwind Diameter | 800mm | 800mm | 800mm |
Max up rewind Diameter | 450mm | 450mm | 450mm |
Max down rewind Diameter | 800mm | 800mm | 800mm |
Razor knife | Optional | Optional | Optional |
Precision | ±0.1mm | ±0.1mm | ±0.1mm |
Power | 9kw | 12kw | 15kw |
Dimension | 2200*1350*1350mm | 2200*1460*1350mm | 2200*1530*13500mm |
Weight | 1300kg | 1500kg | 1800kg |
Machine Speed :350m/min

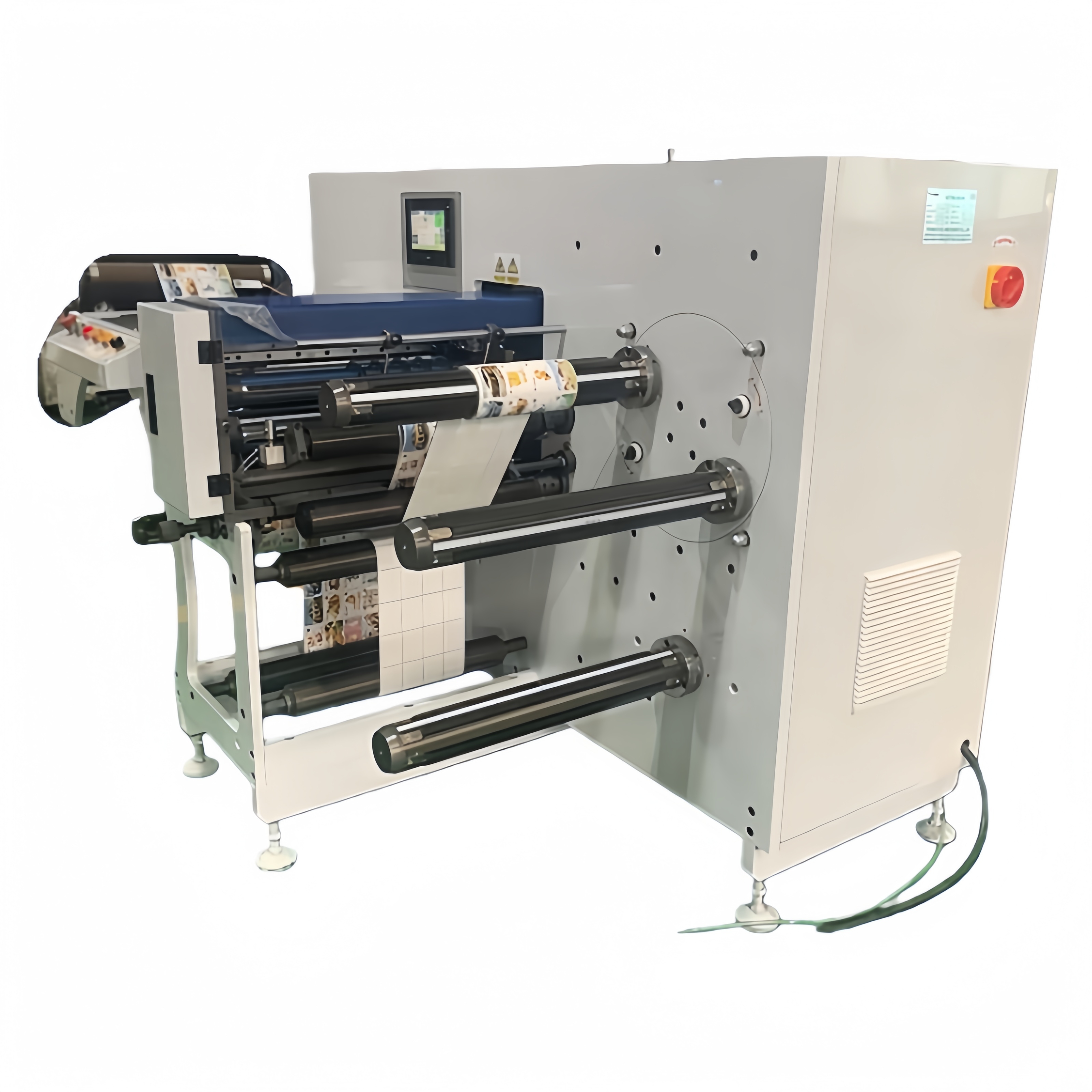

Turret rewinder
1"/1.5"/3" core available
Turret rewinding
Automatic turret rewinding
Rewinding shaft inflate and deflate by button in stead of air gun.
Worker only need press the button, the air shaft can be inflated and deflated automatically to increase efficiency

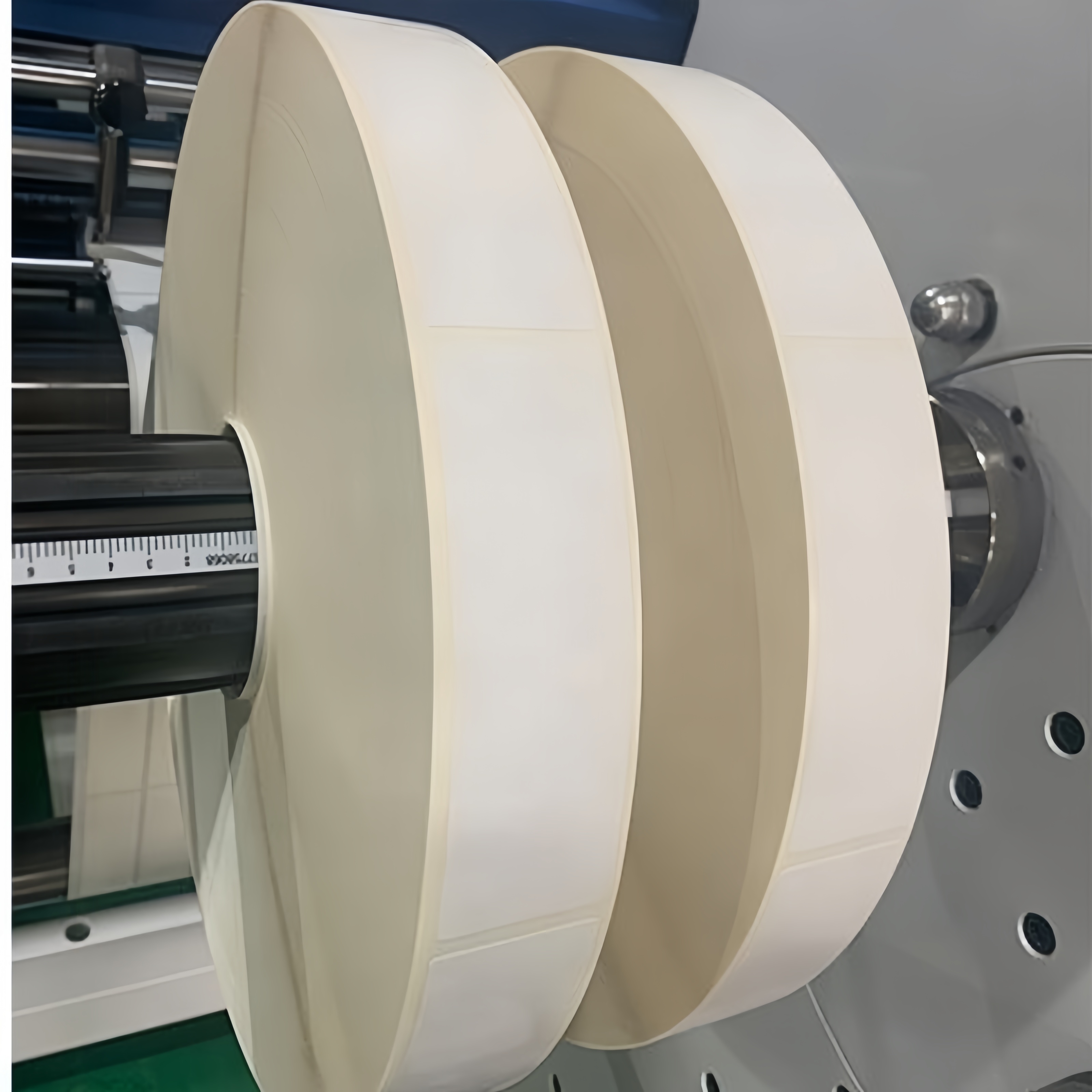

Slitting effect
Slitting effect is very even
PLC touch screen control
PLC control, Touch screen on human machine interface with high resolution colors and easy operator controls

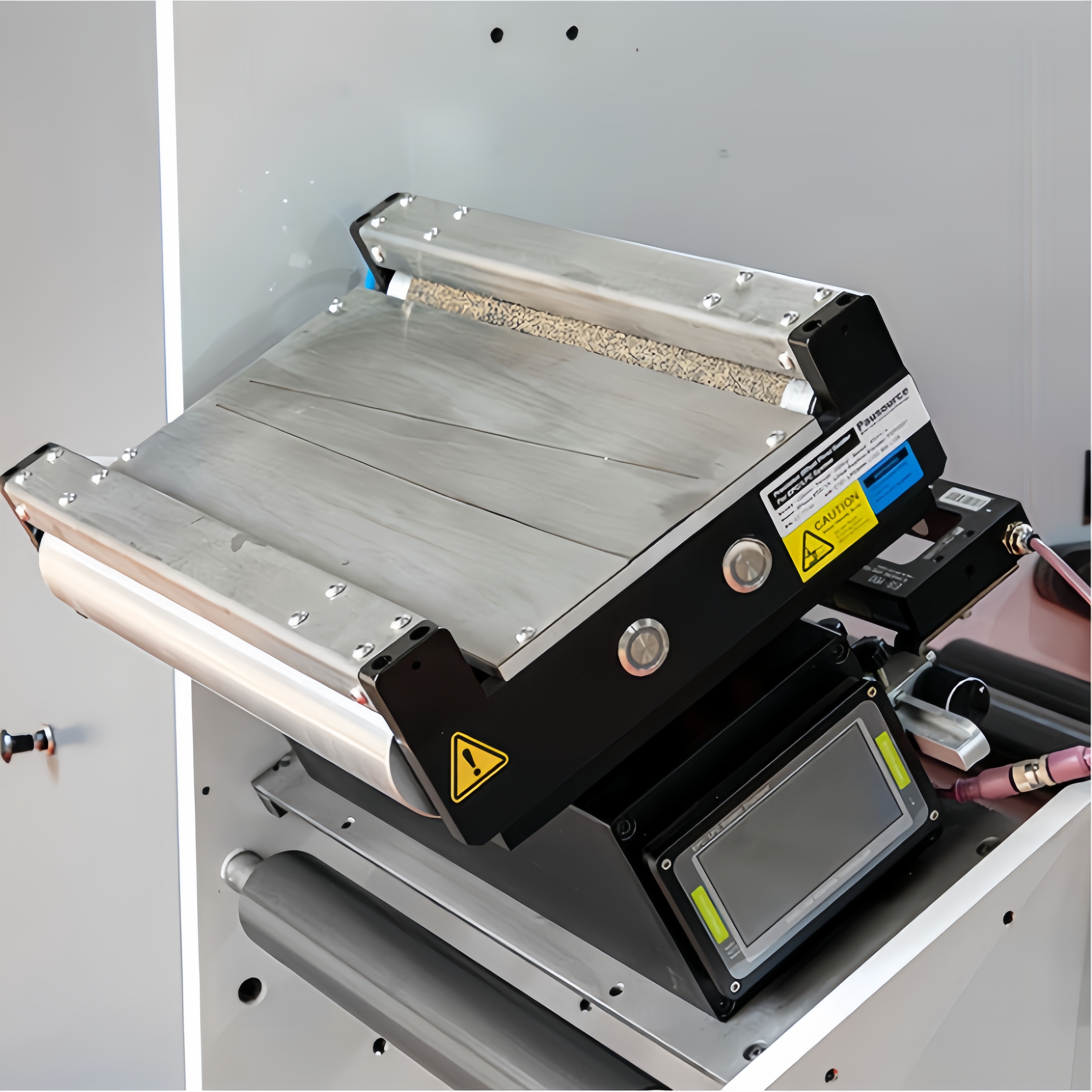

Simulation web guide
Simulation web guide ensure slitting in the correct position
Splice table on the machine.
Full servo driven system
Ensure machine running smooth in high speed and high precision
Slitting section
8 sets slitting knives are included
Plastic safety cover to ensure a safe operating environment for workers.
