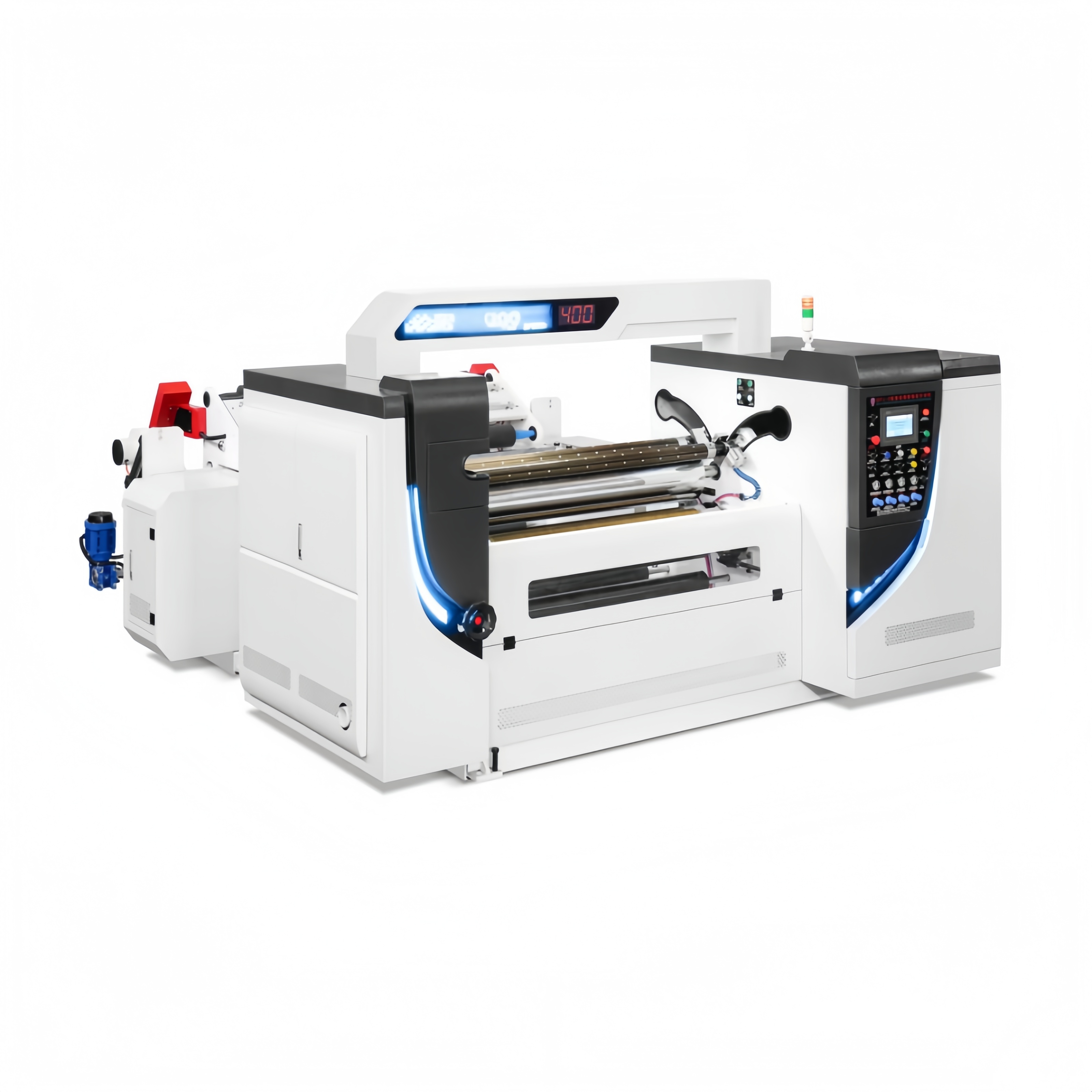

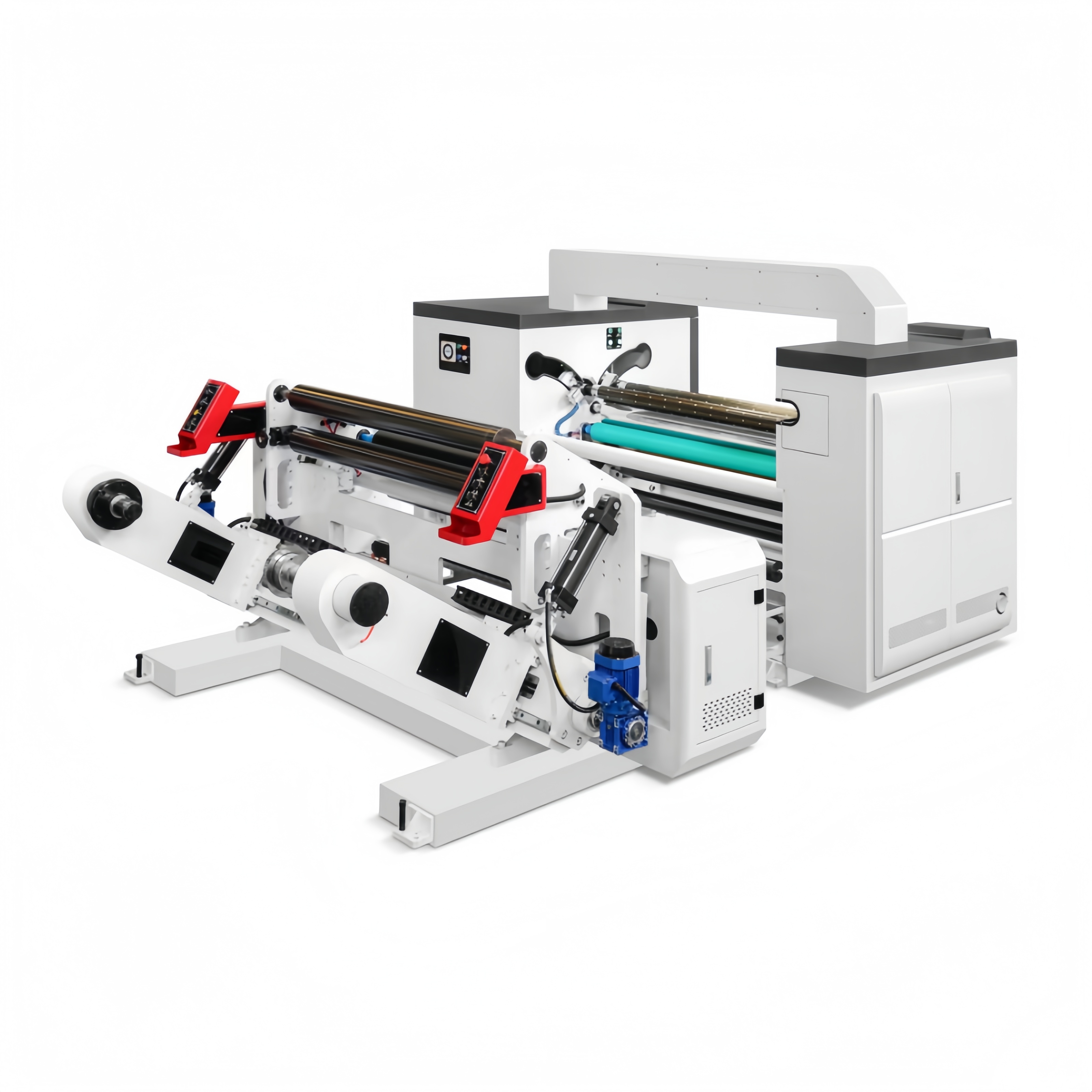

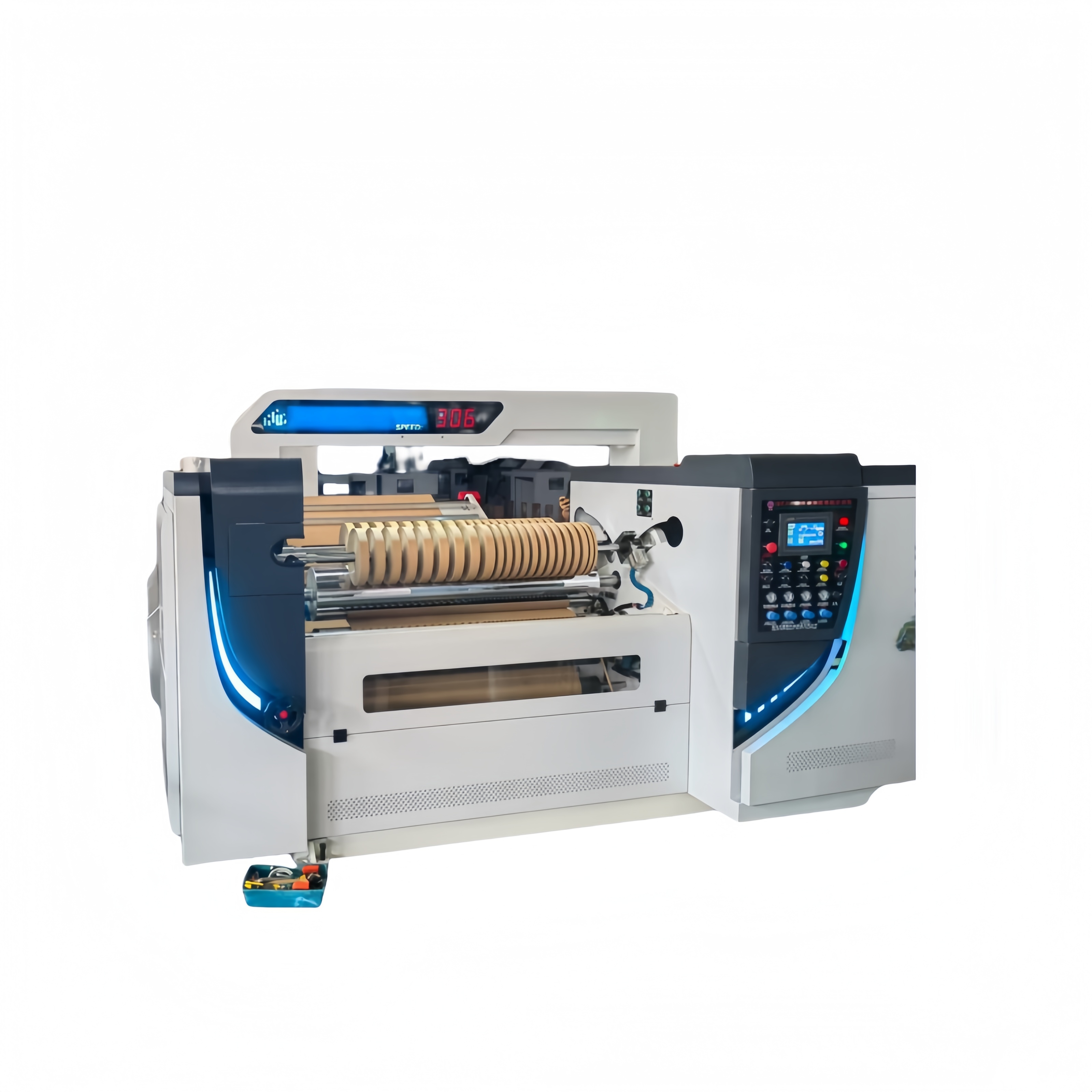

SLT-SHAL1400 400m/min High-Speed Slitter Rewinder: For Film, Paper, Foil & Plastic Processing – Suitable for Packaging, Printing & Industrial Strip Handling
Feature:
1, The machine use center winding and the surface drum rewinding .
2, Web guide system, automatic tension control system with magnetic powder brake and servo motor rewinding
3, Machine with meter counter , automatic stop
4, Frequency Inverter control main motor
Main technical parameter :
Model | SLT-SHAL1400 |
Width of roll material | 1400mm |
Max. Diameter of roll material | 1200mm |
Max. Diameter of rewinding roll | 650mm |
Min. Width of slitting | 25mm |
Slitting Speed | 0-400m/min |
Total Power | 25kw |
Overall dimension ( L x W x H mm) | 3200x2700x1400 |
Weight | 4200kg |
