Use:

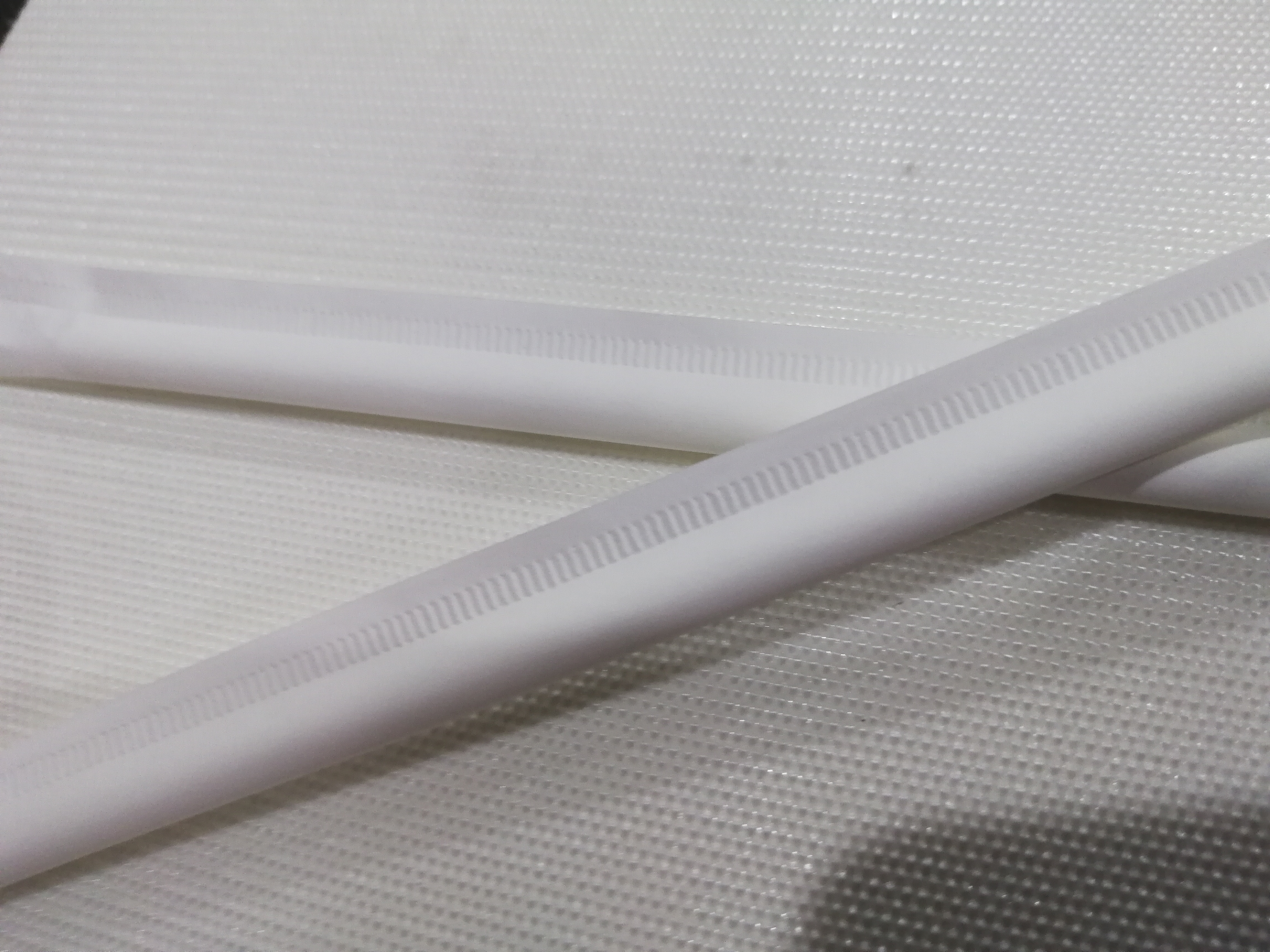

This machine is used to packing drinking straws in three sides sealing bag, printing function is available when using paper as packing material.
Feature:
1. Having two colors printing device can be chosen
2.With automatic product counting function, product quantity may pre-set, once the pre-set value is reached. the machine will give an alarm. And the dam-brush will separate each set quantity packaged straw.
3.Printing, feeding, and packing can complete in one processing.
4.Packing straw length is adjustable within a certain range.
| Straw Specification | Standard length: 190-260mm Standard Diameter: 5-12mm Packing length: 240-300mm |
| Packing Model | Paper type: wrap paper Sealing type: 3 side sealing Paper width: 30-52mm |
| Production Speed | With printing:350pcs/min Without printing:>500pcs/min |
| Printing | Printing Color:Double Colour Printing type: flexographic Thickness of plate (Including Two-sides Glue Paper): 2.28mm+double-sided adhesive 0.1mm(3M Brand)=2.38mm Printing Length: follow the packing length(need change printing cylinder) |
| Driving motor | 0.75kw Brand Controlling inverter: 1.1KW |
| Paper Unwinding Frame | One Set Tension adjust:Mechanical tension device, adjusted by manual Wrap paper roller core size:3inch,4.7inch |
| Straw feeding hopper | Material :Stainless steel frame, Plexiglass: Adjustable to match straw length Straw down device:induction and swing arm Feeding model:by chain feeding |
| Printing Unit | Single/Double Color Power transmission :By chain Between printing unit: By gear Traction unit:1sets, rubber roller and chrome plated roller Printing unit:Ink container, anilox roller, doctor blade, printing cylinder, rubber roller Dry unit:1SET , by hot air, with temperature color register:By manual |
| Sealing and Cutting Parts | Lengthways sealing:Sealing roller-on couple,pressure adjusted by manual Horizontal:Sealing roller-on couple,pressure adjusted by manual, with cutting knife-one couple Material:mould steel |
| Conveyor Belt | One set, Synchronous reduction motor+ controller Counter dam-brush: one set, lifting by pneumatic cylinder |
| Controller | Counter and buzzers:1set Controlling inverter: 1.1KW Temperature controller:1set |
| Total Power (Kw) | 1.5 (220V) |
| Over size (mm) | 1900×1000×1600 (L×W×H) |
| Weight (Kg) | 400 |
