DESCRIPTION：

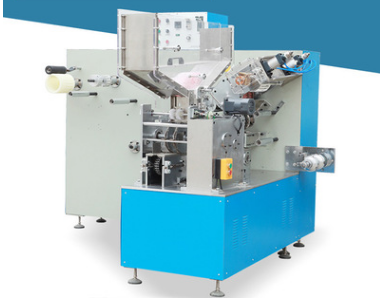

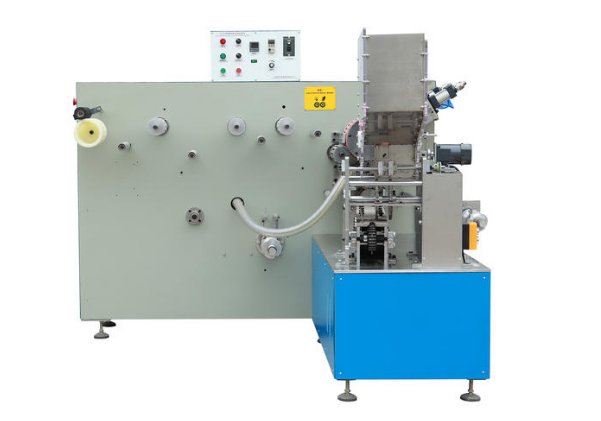

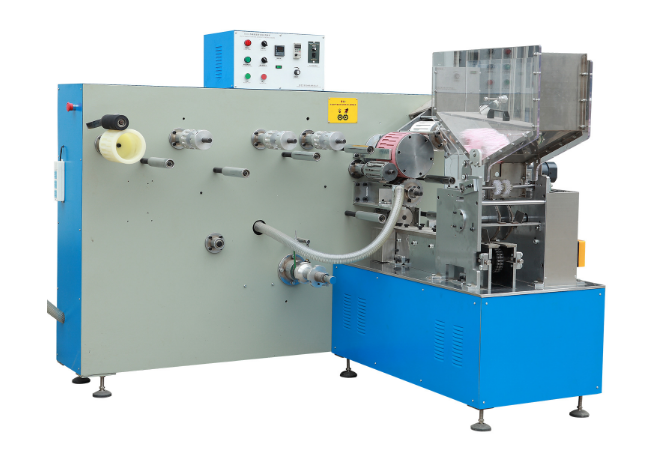

The MW-4700 machine can bend flexible drink straws into U-shape and automatically pack them into bags.The complete machine is composed of a driving motor, thin film rolling device(2 groups), a driven system, an unloading device, a straw filling device, a sealing device, a restoring substandard products device and others.The machine boasts easy operation and reliable quality. It is mainly used as the auxiliary equipment for sterile packed drinks such as Tetra-pack
CHARACTERISTICS:
1.Packing of single tetra straws and the completion of bending, filling and packing of straws at a time.
2.Automatic counting and batch alarm
3.Adjustable packing speed
SPECIFICATION:
Driving Motor | 1.5kw（control by frequency converter) | ||
Production Capacity | 500~700支/（pcs/min） | ||
Packing method | four sides sealing | ||
Specifications of the packing film | Material | can be hot sealed such as Bopp | |
Shape | Roll | ||
Roll diamtere | MAX：280mm | ||
Internal diameter of paper tubes | 76mm | ||
Width of film | MAX：180mm | ||
Thickness of film | 20μ-30μ | ||
Packing shape | 22mm(p）×100~140m(W） | ||
Straws specifications | Inn-diameter | Ø 3.8mm、Ø 4.8mm | |
Thickness | 0.19~0.25mm | ||
U-shaped concave film length | 90mm(smaill type)\105mm( middle type)、128mm( big type) | ||
Other specifications are Customizable | |||
Machine size | 3000 × 1800×1600mm | ||
Machine weight | 1100kg | ||
