Advantage
*working stable on 100 meters per minute, for example, 6*197MM, over 300000 pcs per 12 hour.
*our machine is on a par with French's machine. but the cost is a little part of their machine's
*automatic Precision gluing system from HHS, German, sealed in the barrel , cleaner and safer.
use less glue, make stronger straw. saving more than 30% glue than normal gluing system.
*making automatic reel change.
Easy operating, low re-tooling costs and great flexibility make this machine perfectly suited for very high speeds.
Uses:
The machine is used for produce paper straw
Feature :
1、Adopt human-machine operation interface, more convenient for operation;
2、Full Automatic paper splice system , automatic paste a adhesive label .
3、Automatic Stop when the paper break
4、Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven)
5、9 knife System in-line cutting unit controlled by encoder .,cutting final paper tube directly , Servo motor control cutting system
6、 Stainless steel body ,meet food grade production standards
7 、Protection cover ,conform to ISO and 6S factory inspection standard
8 、Sealed glue system , Sanitary and pollution-free
9、 Constant Tension control and Non-stop paper change system
Main technical parameter :
Inner Diameter | 3.2-12mm |
Paper Roll | 2-3 Plies , customized according to customer requirements |
Thickness | 0.25-1mm |
Cutting Length | 120-1600mm |
Production speed | 10-120m/Min |
Way Of Gluing | Single |
Blade | 9 Groups |
Servo Motor | Germany Siemens |
Pneumatic Component | Japan SMC |
low-voltage apparatus | Schneider |
Control System | Siemens |
Linear Guide System | JAPAN THK |
Operator | 1 Persons Operate 1 machines |
Main Part Dimension | 4050*1100*1450mm |
Overall Dimension | 10000*7000*1500mm |
Weight | 2000kgs |
Moving Finished Paper Straw | Automatically |
Lubricating Oil | Automatic Giving |
The machine mainly includes the following equipment (pictured) |
Multi-knife System Online Cutting Paper Straw Machine Spec |
One Unit Tension control and Non-stop paper change system |
One Unit Automatic paper splice system |
One Unit Sealed Glue system |
One Unit Spiral Paper Tube Machine With Online Cutting System |
One Unit L Type Paper Straw Gathering Machine |

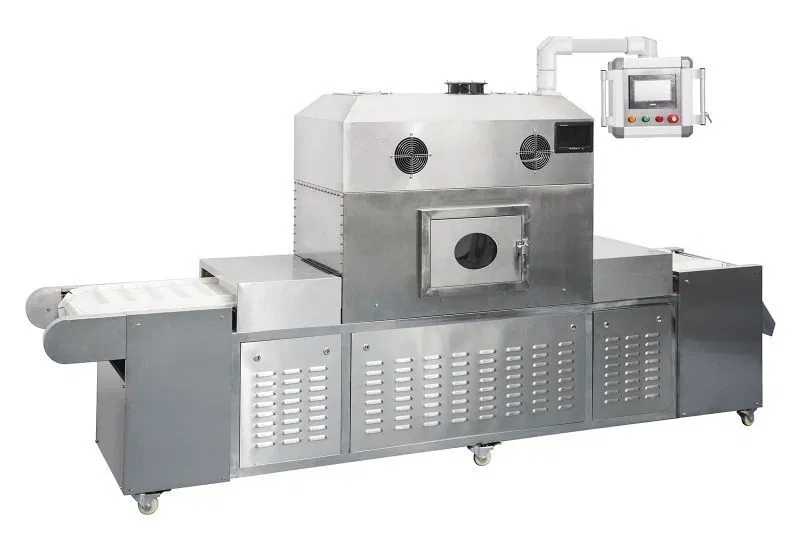

One Unit microwave oven system |
