DESCRIPTION：

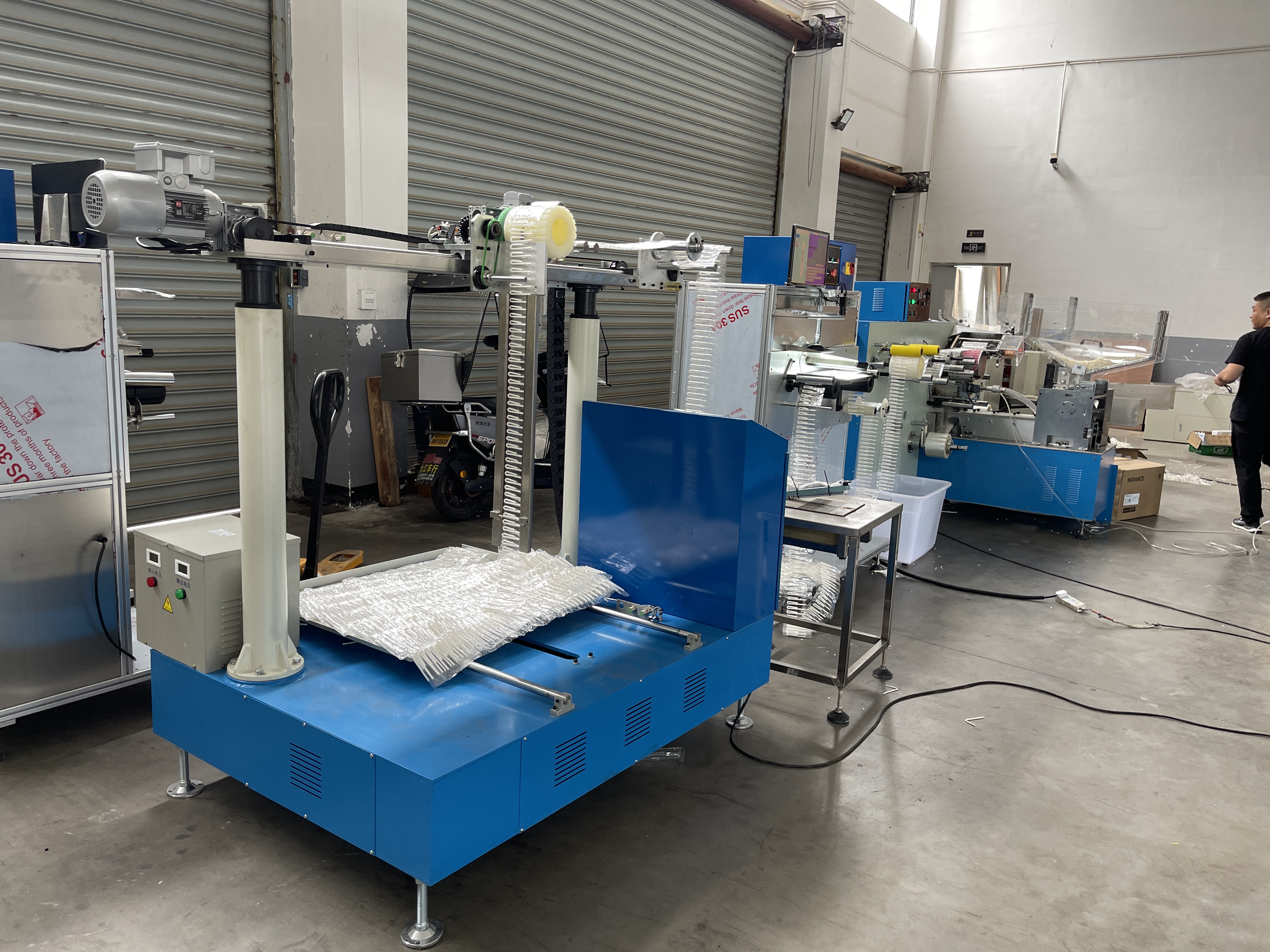

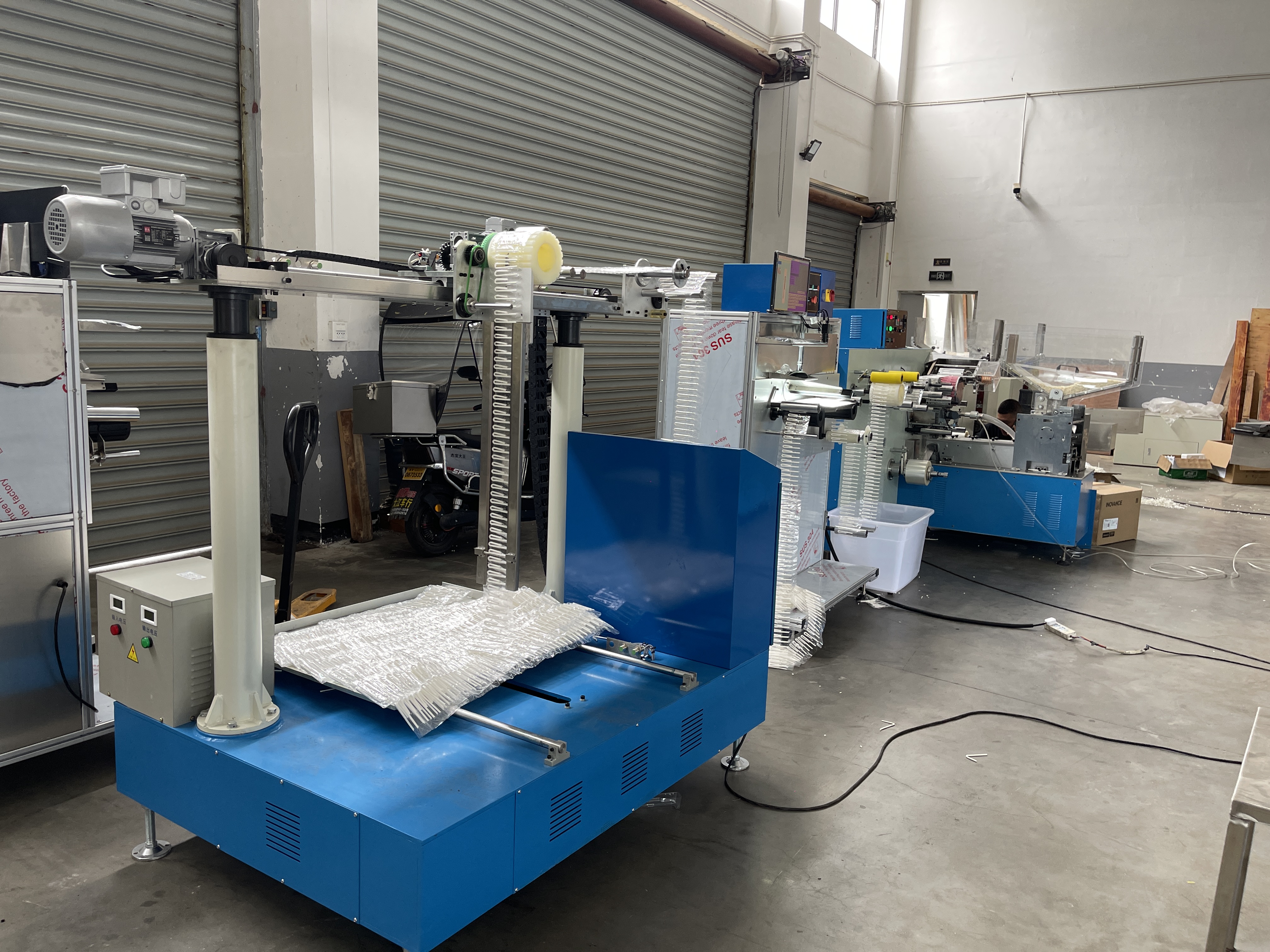

MW-4700A
automatic suction box swing machine with row of straws can greatly improve the automation degree of U-shaped Tetra straw production line. This equipment can replace the traditional manual swing box, which greatly reduces the labor intensity of workers. And it solves the problems of uneven finishing caused by the manual swinging of the box, the straws overlapping, folding and so on. The whole equipment is controlled by PLC, which has stable and reliable performance and simple operation.
SPECIFICATION:
Lifting mechanism | 0.37KW，PLC Control |
Driving mechanism | 0.37KW， PLC Control . Inverter adjust speed |
Swing straw mechanism | 0.37KW， PLC Control . Inverter adjust speed |
Box moving mechanism | 0.37KW， PLC Control . Inverter adjust speed |
Speed | 600~700 pCS/MIN |
Machine size | 1600×1200×2000mm |
Machine weight | 800kg |
