Useage:

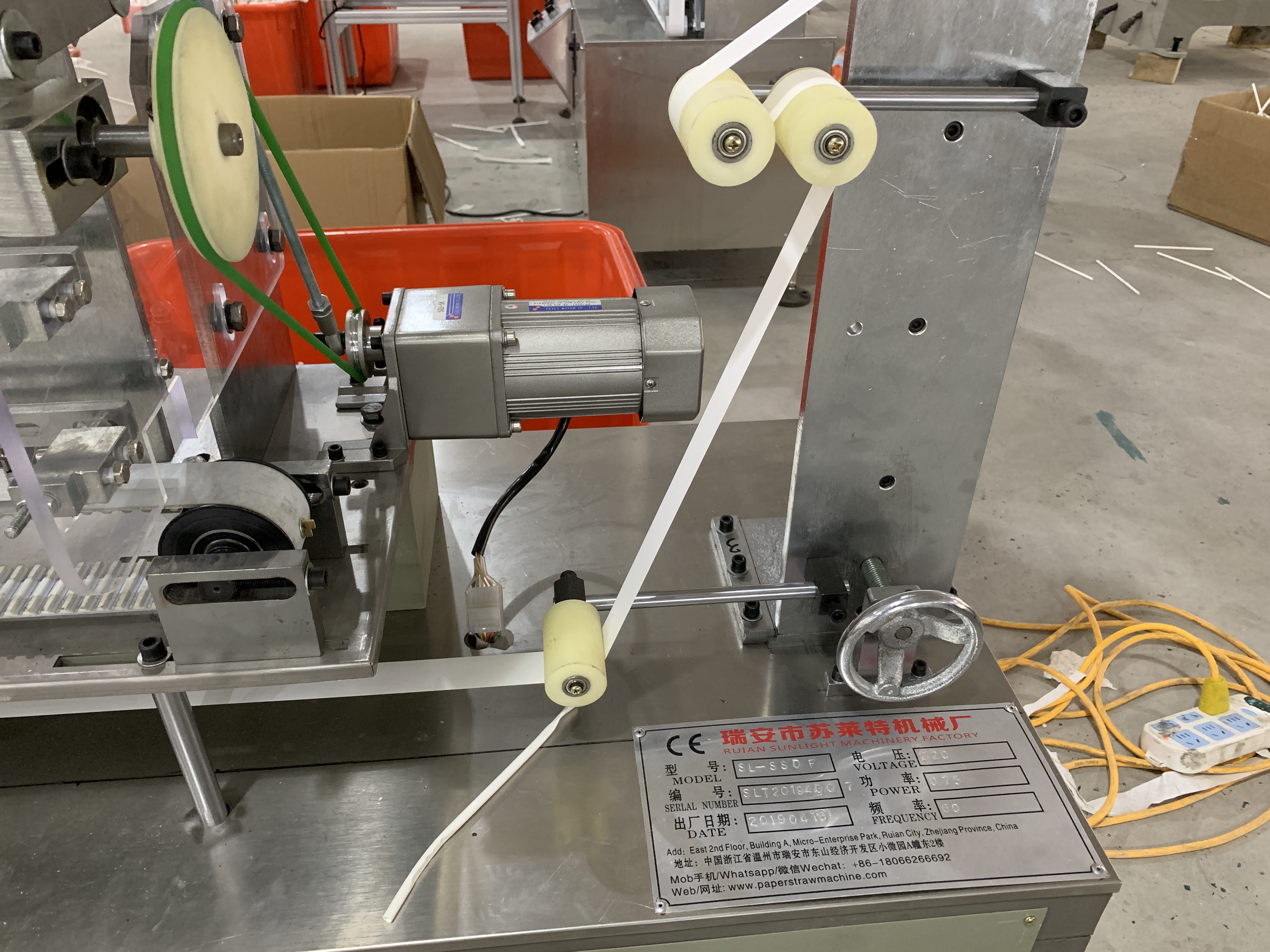

MW-SSDF machine is a kind of equipment that can pack the single drinking straw with paper With complete set of the machine is highly automatic, and has high packing speed. Also it can make delicate printing on wrapping paper.
Features：
1.Single packing. Filling, packaging in one operation
2.None, single, double color, multi-color sprinting can be choose.
3.Automatic counting. In favor of secondary packaging.
4.The packing speed is adjustable.
5. Adopt fixed mould for wrapping paper straw。Packing Length is fixed , One length one set mould . . it is stabilization and high speed .
Main Technical:
MODEL | MW-SSDF |
Capacity | 400-800 pcs/min(Non Printing), 400 pcs/min (Printed Material ) |
Packing Size | Diameter. 5-12mm, Length 150-260mm .Packing Length is fixed , One length one set mould . |
Sealing Molds&gears | 1 set |
Main Driving Motor | 0.75kw, 1p, 220V, 50HZ |
Wrapping Material | 24-54mm width Paper |
Functions | Automatic counter, quantity pre-set,、 |
Optional Part | double color printing unit |
Weight | 400 kgs |
Machine Dimension | 1500×800×1300mm |
