Introduction：

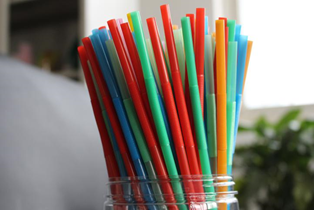

MW-3100B series art straw making machine is an equipment used to bending long straight drinking straws into flexible ones. The entire operation, from product in-feed, forming to product out-feed, is automatically performed requiring the operator to add the material into the hopper loader only. The straight straws supplied in the hopper at the top of machine, are fed one by one into the main drum of the machine and clamped by two mechanical catches.
Machine information:
Model | MW-3100B art straw making machine | |
Power supply | 1.5kw, delta inverter | |
Capacity | 150-200 pcs/min | |
Specification of straw | Inner diameter | Φ5.6mm~Φ5.8mm |
Length of straight straw | 320mm~350mm | |
Length of finished straw | 260mm | |
Number of tooth | 58 | |
Straw thickness | 0.15mm~0.17mm | |
Front section length | 30mm~50mm (Adjustable) | |
Machine dimension L×W×H | 1.8m*2m*1.9m | |
Weight | 1500kg | |
Quality Construction Throughout：
1.gears and bearings(NSK,Japan) are precision ground and hardened to ensure
smooth and quiet operations.
2.The shafts are manufactured from Aluminum Chromolybdenum alloy steel and is stress relieved.
3.The wheels undergoes nitride hardening treatment for a long service time.
Accessories:( spare parts)：
No. | Name | Specification | Quantity | Note |
1 | Tool box | - | 1 piece | Total:one set |
2 | 3-10 | 1 set | ||
3 | Double end spanner | 8-22 | 1 set | |
4 | Monkey spanner | 200mm | 1 piece | |
5 | Cross screw driver | 200mm | 1 piece | |
6 | Straight screwdriver | 200mm | 1 piece | |
7 | 160mm | 1 piece |
