Uses：
The machine is used for produce paper straw
Feature :
1、 Adopt human-machine operation interface, more convenient for operation;
2、Aluminium Paper reeling stand , Slitting rolls are easily placed into reel stand
3、Surface Paper is Single side coating , middle layer paper is double glue coating
4、 Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven)
5、 7 Cutting Knife System in-line cutting unit controlled by encoder .，cutting final paper tube directly ， Servo motor control cutting system，Adjustable length is more flexible
6、 Paint steel body
7、Automatic Stop when the paper break
8、 Buzzer alarm system, stop, change paper alarm, reduce the difficulty of operation
9、Glue tank constant temperature system , Improve glue stability.
Main technical parameter :
Inner Diameter | 5.2-12mm |
Paper Roll | 2-3 Plies customized according to customer requirements |
Thickness | 0.25-1mm |
Cutting Length | 120-1300mm |
Hub Wheel | Two Head |
Production speed | 10-50m/Min (20-30 degree summer 20-50m/min , 0-10 degree Winter 10-35m/min ) |
Way Of Cutting | 58*38*1.5mm Circular Cutting Blade |
Way Of Gluing | Single / Double Side |
Blade | 7 Groups |
Paper Reel Stand | 6 Plies Paper Reel Stand |
Glue System | 2 plies independent glue tank |
Main Motor | 1.5kwx2 CHINA |
Inverter | 4kw Germany Siemens |
Servo Motor | 1kw Germany Siemens |
Pneumatic Component | China Taiwan Airtac |
low-voltage apparatus | Schneider |
Control System | China ，by Sunlight Machinery |
Linear Guide System | JAPAN THK |
Operator | 1Persons |
Main Part Dimension | 3850*1100*1450mm |
Overall Dimension | 7800*4800*1500mm |
Weight | 2300kgs |
Way Of Scraping Glue | Independent Glue Box/Polyurethane Scraping Blade |
Moving Finished Paper Straw | Automatically |
Lubricating Oil | Automatic Giving |
The machine mainly includes the following equipment |
MW-SSDC Multi-knife System Online Cutting Paper Straw Machine Spec |

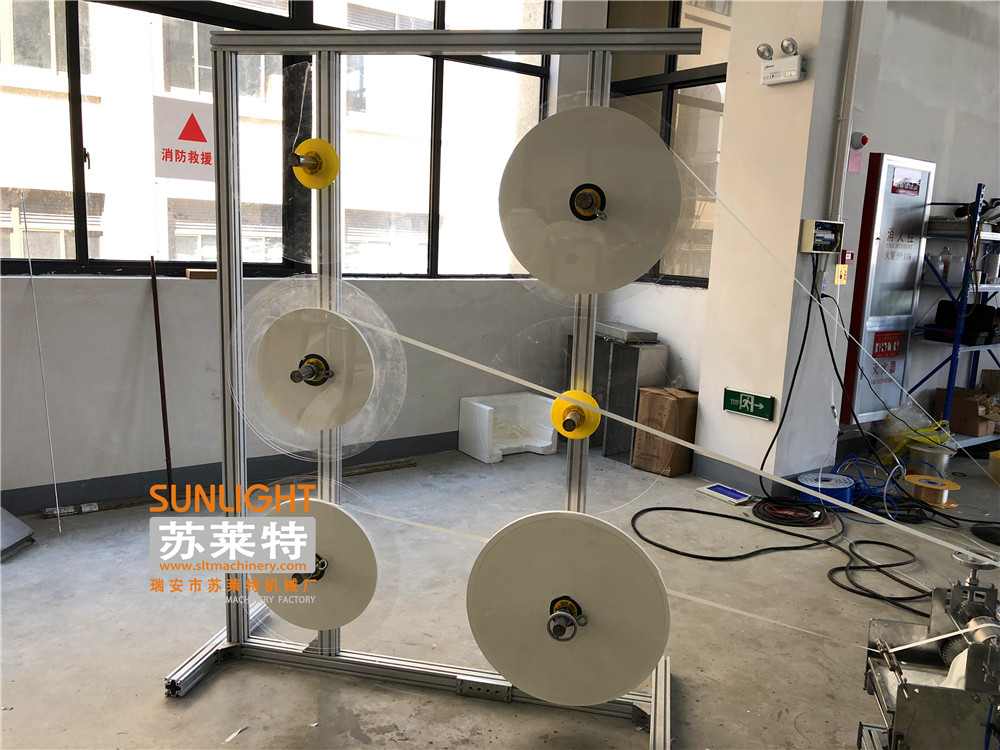

One Unit 6 Layer Reel Stand |

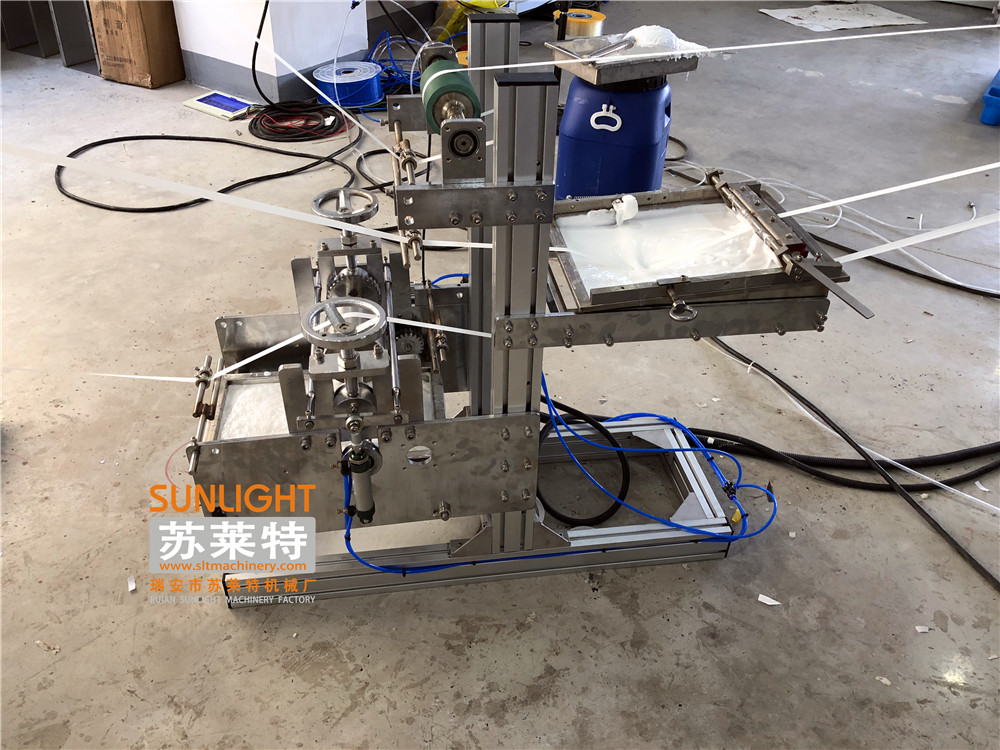

One Unit 2 Layer Glue Unit |

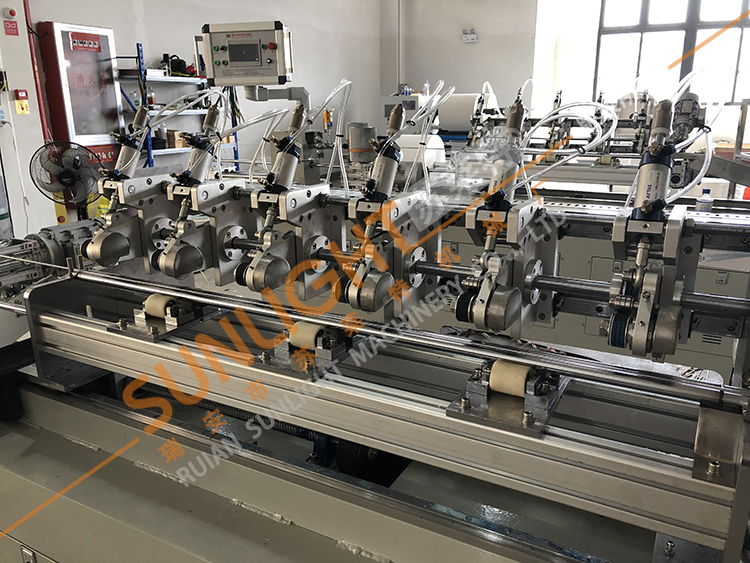

One Unit Spiral Paper Tube Machine With Online Cutting System |
| One Unit L Type Paper Straw Gathering Machine |
