Uses：
The machine is used for produce paper straw
Feature :
1.Adopt human-machine operation interface, more convenient for operation;
2.Aluminium Paper reeling stand , Slitting rolls are easily placed into reel stand
3.Surface Paper is Single side cotaing , middle layer paper is double glue coating
4.Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven)
5.7 knife System in-line cutting unit controlled by encoder .，cutting final paper tube directly ， Servo motor control cutting system。
6. Stainless steel body ，meet food grade production standards 。
7 . Protection cover ，conform to ISO and 6S factory inspection standard
8.Automatic Stop when the paper break
9. Glue tank constant temperature system , Improve glue stability.
10.Buzzer alarm system, stop, change paper alarm, reduce the difficulty of operation
11. Constant Tension control and Non-stop paper change system
Main technical parameter :
Inner Diameter | 3.8-12mm |
Paper Roll | 2-3 Plies ， customized according to customer requirements |
Thickness | 0.25-1mm |
Cutting Length | 120-1300mm |
Hub Wheel | Two Head |
Way Of Fixing Shaft | Clamp |
Production speed | 10-75m/Min (20-30 degree summer 20-75m/min , 0-10 degree Winter 10-50m/min ) |
Way Of Cutting | 58*38*0.8mm Circular Cutting Blade |
Way Of Gluing | Single |
Blade | 7 Groups |
Paper Reel Stand | 6 Plies Paper Reel Stand |
Main Motor | 1.5kwx2 CHINA KEJIN |
Servo Motor | Germany Siemens |
Pneumatic Component | China Taiwan Airtac |
low-voltage apparatus | Schneider |
Control System | China ，by Sunlight Machinery |
Linear Guide System | JAPAN THK |
Operator | 1 Persons Operate 3 machines |
Main Part Dimension | 4050*1100*1450mm |
Overall Dimension | 8000*4800*1500mm |
Weight | 2500kgs |
Way Of Scraping Glue | Independent Glue Box/Polyurethane Scraping Blade |
Moving Finished Paper Straw | Automatically |
Lubricating Oil | Automatic Giving |
L model |
The machine mainly includes the following equipment (pictured) |
Multi-knife System Online Cutting Paper Straw Machine Spec |
Tension control and Non-stop paper change system |
One Unit 6 Layer Reel Stand |

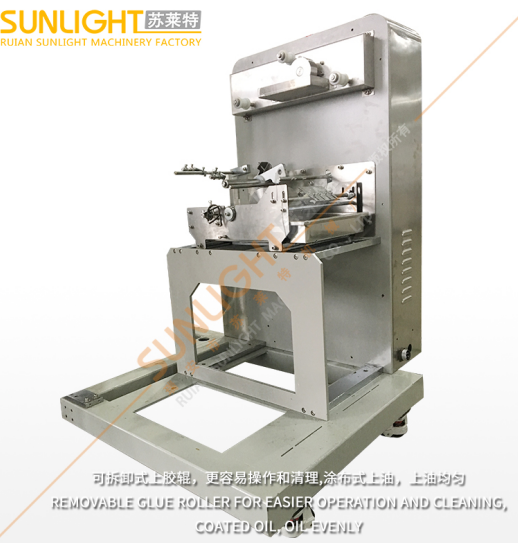

One Unit 2 Layer Single layer Glue Unit |
One Unit Spiral Paper Tube Machine With Online Cutting System |
One Unit L Type Paper Straw Gathering Machine |
