Uses：
The machine is used for produce paper straw
Feature :
1、Adopt human-machine operation interface, more convenient for operation;
2、Aluminium Paper reeling stand , Slitting rolls are easily placed into reel stand
3、Surface Paper is Single side cotaing , middle layer paper is double glue coating
4、Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven)

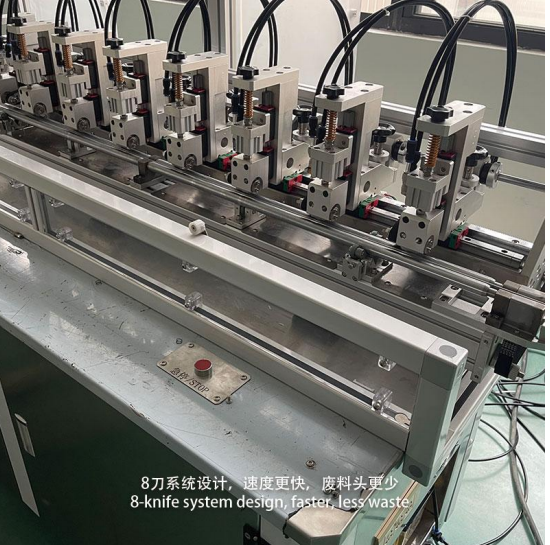

5、7 knife System in-line cutting unit controlled by encoder .，cutting final paper tube directly ， Servo motor control cutting system。
6、 Stainless steel body ，meet food grade production standards 。
7、 Protection cover ，conform to ISO and 6S factory inspection standard
8、Automatic Stop when the paper break
9、 Buzzer alarm system, stop, change paper alarm, reduce the difficulty of operation 。
10、 Constant Tension control and Non-stop paper change system
Main technical parameter :
| Inner Diameter | 3.8-12mm |
| Paper Roll 2-4 Plies | customized according to customer requirements |
| Thickness | 0.25-1mm |
| Cutting Length | 120-1300mm |
| Hub Wheel | Two Head |
| Way Of Fixing Shaft | Clamp |
| Production speed | 10-80m/Min (20-30 degree summer , 0-10 degree Winter 10-50m/min ) |
| Way Of Cutting | 58*38*0.8mm Circular Cutting Blade |
| Way Of Gluing | Single |
| Blade | 8 Groups |
| Paper Reel Stand | 4 Plies Paper Reel Stand |
| Main Motor | Servo motor |
| Inverter | France Schneider |
| Servo Motor | France Schneider |
| Pneumatic Component | China Taiwan Airtac |
| low-voltage apparatus | Schneider |
| Control System | China ，by Sunlight Machinery |
| Linear Guide System | JAPAN THK |
| Operator | 1 Persons Operate 3 machines |
| Main Part Dimension | 4050*1100*1450mm |
| Overall Dimension | 8000*4800*1500mm |
| Weight | 2500kgs |
| Way Of Scraping Glue | Independent Glue Box/Polyurethane Scraping Blade |
| Moving Finished Paper Straw | Automatically |
| Lubricating Oil | Automatic Giving |
| L model |
| The machine mainly includes the following equipment (pictured) |
| Multi-knife System Online Cutting Paper Straw Machine Spec |
| Tension control and Non-stop paper change system |
| One Unit 4 Layer Reel Stand |
| One Unit 2 Layer Single layer Glue Unit |
| One Unit Spiral Paper Tube Machine With Online Cutting System |
| One Unit L Type Paper Straw Gathering Machine |
