Uses：

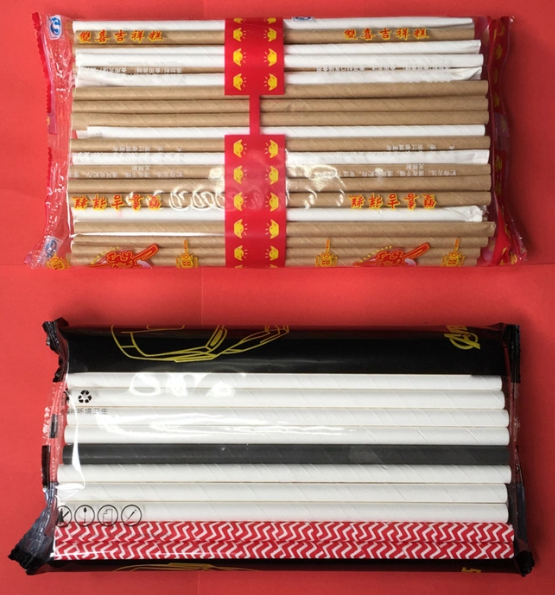

The machine is used for produce paper straw
Feature :
1、Adopt human-machine operation interface, more convenient for operation;
2、Aluminium Paper reeling stand , Slitting rolls are easily placed into reel stand
3、Surface Paper is Single side cotaing , middle layer paper is double glue coating
4、Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven)
5、7 knife System in-line cutting unit controlled by encoder .，cutting final paper tube directly ，
Servo motor control cutting system
6、 Stainless steel body ，meet food grade production standards 。
7 、Protection cover ，conform to ISO and 6S factory inspection standard
8、Automatic Stop when the paper break
9、 Buzzer alarm system, stop, change paper alarm, reduce the difficulty of operation 。
10、Constant Tension control and Non-stop paper change system
Main technical parameter :
Inner Diameter | 4.2-12mm |
Paper Roll | 2-4 Plies ， customized according to customer requirements |
Thickness | 0.25-1mm |
Cutting Length | 120-1500mm |
Hub Wheel | Two Head 2 |
Way Of Fixing Shaft | Clamp |
Production speed | 10-100m/Min (20-30 degree summer , 0-10 degree Winter 10-50m/min ) |
Way Of Cutting | Circular Cutting Blade |
Way Of Gluing | Single |
Blade | 9 Groups |
Paper Reel Stand | 4 Plies Paper Reel Stand |
Main Motor | Servo motor |
Inverter | France Schneider |
Servo Motor | France Schneider |
Pneumatic Component | China Taiwan Airtac |
low-voltage apparatus | Schneider |
Control System | China ，by Sunlight Machinery |
Linear Guide System | HIWIN |
Operator | 1 Persons Operate 1 machines |
Main Part Dimension | 4050*1100*1450mm |
Overall Dimension | 8000*4800*1500mm |
Weight | 2600kgs |
Way Of Scraping Glue | Independent Glue Box/Polyurethane Scraping Blade |
Moving Finished Paper Straw | Automatically |
Lubricating Oil | Automatic Giving |
L model |
The machine mainly includes the following equipment (pictured)
|
Multi-knife System Online Cutting Paper Straw Machine Spec |
Tension control and Non-stop paper change system |
One Unit 4 Layer Reel Stand |
One Unit 2 Layer Single layer Glue Unit |
One Unit Spiral Paper Tube Machine With Online Cutting System |
One Unit L Type Paper Straw Gathering Machine |
