Use:

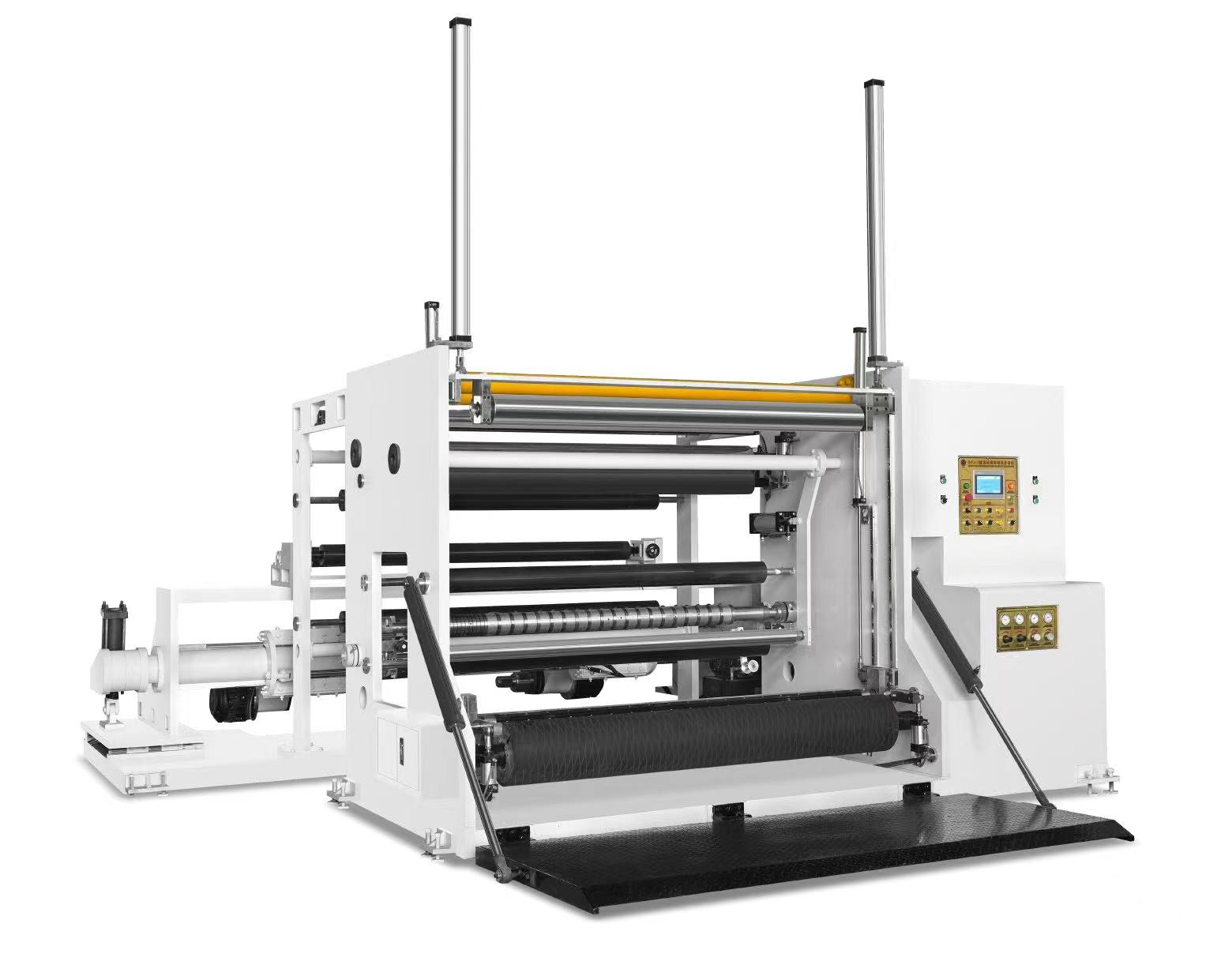

This machine is used for slitting and rewinding various large rolling materials such as paper,（50g/m2~450g/m2 non-carbon paper, capacitance paper, bill paper）, double-face adhesive tape, coated paper, aluminum foil, BOPP Film PVC, plastic material, etc.
Performance and Characteristics :
This machine use three motors synchronous for controlling, automatic taper tension, central surface reeling.
Frequency converter timing for main machine，keeping speedup and stable operation.
It has the functions of automatic metering, automatic alarm, etc.
Adopt A pneumatic shaft structure for rewinding, easy for loading and unloading.
It adopts liquid press style subtense system
Equipped with automatic waste film blowing device by circle blade.
Automatic material inputting shaftless ,hydraulic loading.
Technical Data:
Max Width | 2200mm |
Thickness Of Material | 300g-350g（According To The Material） |
Max Diameter Of Raw Material | Φ1500mm |
Max Diameter Of Rewinding | Φ1500mm |
Slitting Width | 50-22z00mm |
The Unwinder Diameter Core | 76 |
Rewinding Shaft | 76 |
Error Correcting Precision | ±2mm |
Precision Of Slitting | ±0.3mm |
Max Speed | 50-400m/Min |
Total Power | 33kw |
Weight | About10000kg |
Main Color Of Machine Body | Milky Color |
Machine Dimension LxWxH | 6000x3500x2500mm |
Unwinder Unit
Adopts casting style for machine body |
Adopts hydraulic shaft less loading system |
40kg tension magnetic powder controller and auto taper style control |
With Hydraulic shaft less unwinding |
Transmission guide roller: aluminum guide roller with active balance treatment (￠120×2250mm) |
Transmission guide roller: aluminum guide roller with active balance treatment (￠120×2250mm) |
Adopts liquid press style sub tense system, Error-correction precision: ±0.3mm |
Unwinder tension control by PLC |
Main Machine Part
Adopts 60# high-quality casting structure |
Supported by non-gap empty steel tube |
Drive and transmission structure
Adopts motor and speed reducer together |
Adopts frequency timing system for main motor |
Transducer |
Transmission structure: adopts control V6/H11KW(encode made in Japan) |
Guide roller: adopts aluminum alloy guide roller with active balance treatment |
Aluminum guide roller: ￠120×2250mm |
Import synchronous belt drive and wheel together |
Traction device
Structure: active traction manual pressing style |
Pressing style is controlled by cylinder: ￠63×30mm |
Pressing roller: rubber roller (￠120×2250mm) |
Active roller: chrome plate steel roller (￠150×2250mm |
Drive style: main transmission shaft will be drove by main motor, and active shaft traction will be drove by main shaft |
Slitting device
5 Sets Shear Type Rotary blade for slitting |
Upper knife shaft: pneumatic |
Upper round knife: can be adjusted freely. |
Lower knife shaft: steel shaft |
Lower round knife: can be adjusted by shaft cover |
Slitting precision: ±0.2mm |
1.5mm cold rolled sheet safety cover and Transparency organic glass |
Rewinding device(surface and center rewinding)
Structure style: double air shafts (also can use single air shafts) |
Import slide way for rewinding |
Adopts tile style air shaft (￠76×2250mm) |
Adopts moment motor for rewinding (60NL/set) |
Diameter of rewinding: Max ￠1500mm |
Impaction style: adopts air cylinder fixing cover structure |
Rewinding control by frequency conversion motor . |
Discharge by hydraulic pressure , easy operate . |
Electric control part
It is composed of main motor control, tension control and others, |
Main motor: adopts three-phase moment motor 30kw |
Main motor control: including main motor control and main controlling box |
Tension control: unwinding tension, rewinding tension, speed. |
Enclose with electronic metering, stop by alarm system, auto length-position. |
All electrical components is made by French Schneider |
Configuration list
PLC | SEIMENS Germany |
Touch Screen | CHINA TAIWAN |
Web Guide Photo cell | CHINA TAIWAN |
Motor | DECHI China |
Encoder | TOKYO Janpan |
Inverter | ZHENGXIAN |
Main Electric part | CHINT |
The Pneumatic Parts | CHINA |
Hydraulic system | CHINA |
Spare Parts list
Monkey wrench | 1 pc | |
Ringent wrench | 12×14 | 1 pc |
Ringent wrench | 17×19 | 1 pc |
Ringent wrench | 8×10 | 1 pc |
Screw driver | “十”shape | 1 pc |
Screw driver | “一”shape | 1 pc |
Inner hexagonal wrench | 1 pc | |
Oil gun | 1 pc |
