SLT-SGC
MWELLPACK

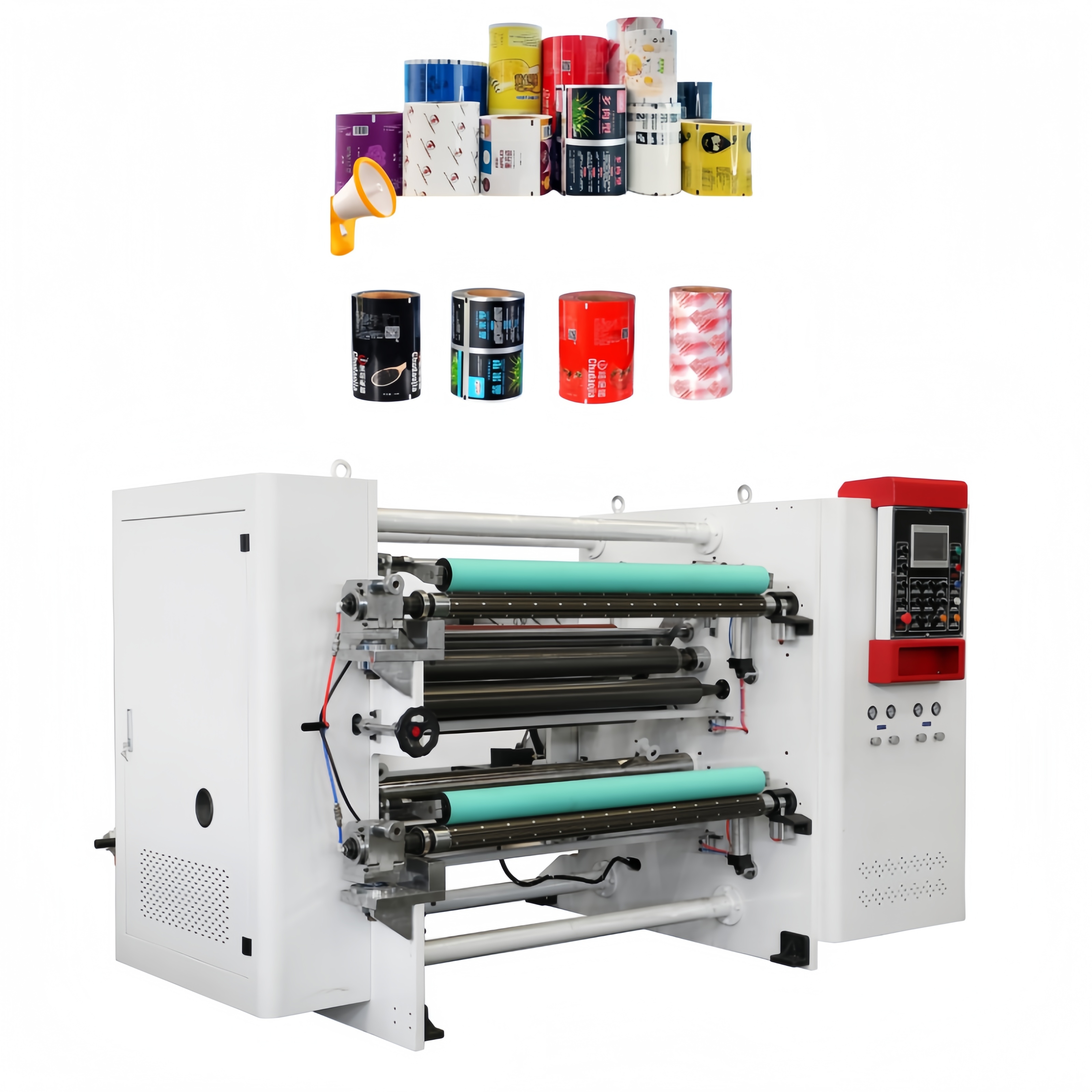

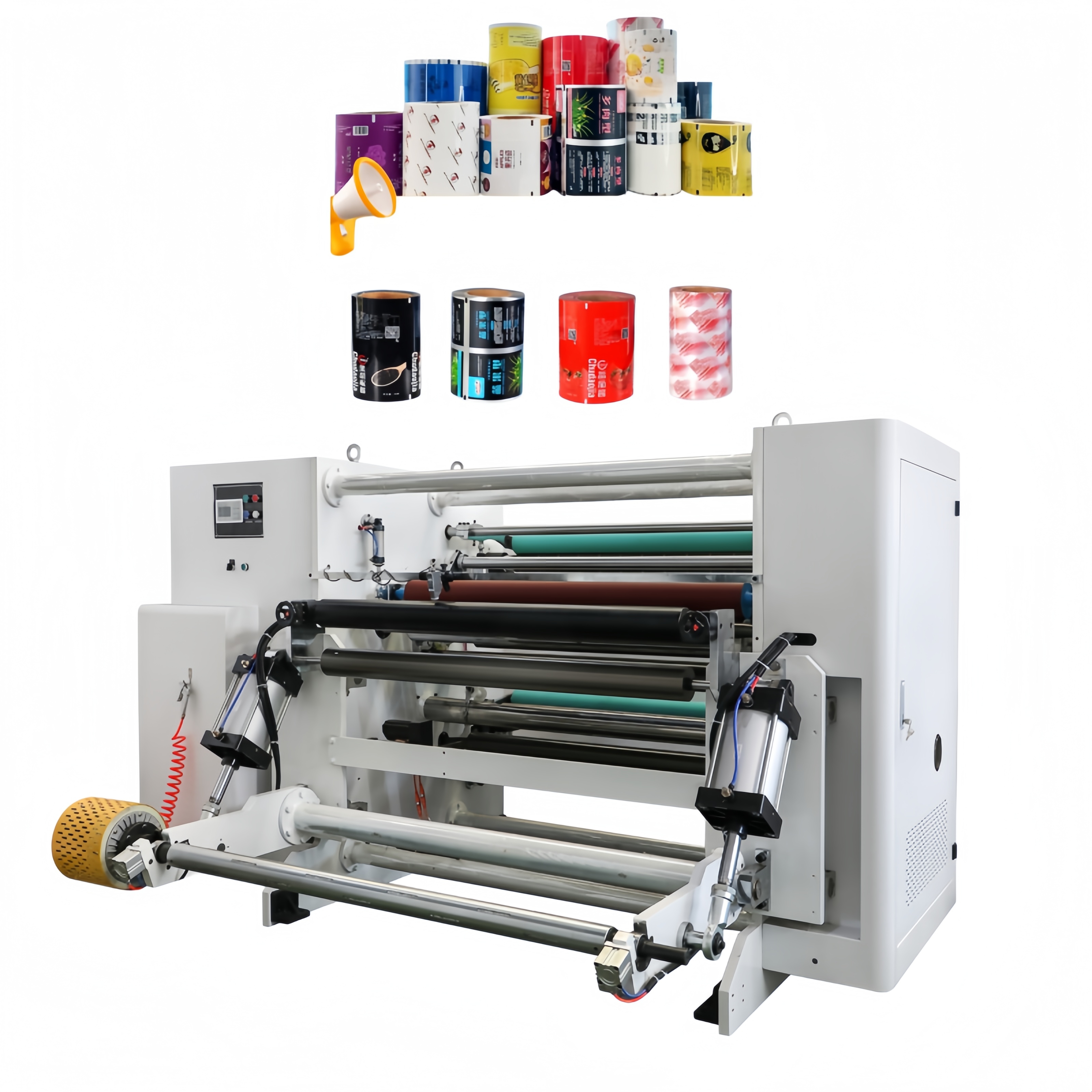

SLT-SG1300 Paper and Film Slitting Rewinding Machine
Use:
This machine are suitable for stripping of reel-shape materials such as BOPP, PET, PE, PVC , Aluminum foil , reel paper and so on
Feature :
Main Motor: electromagnetic speed regulation motor
Separated General Control Cabinet, more flexible and even easier operation.

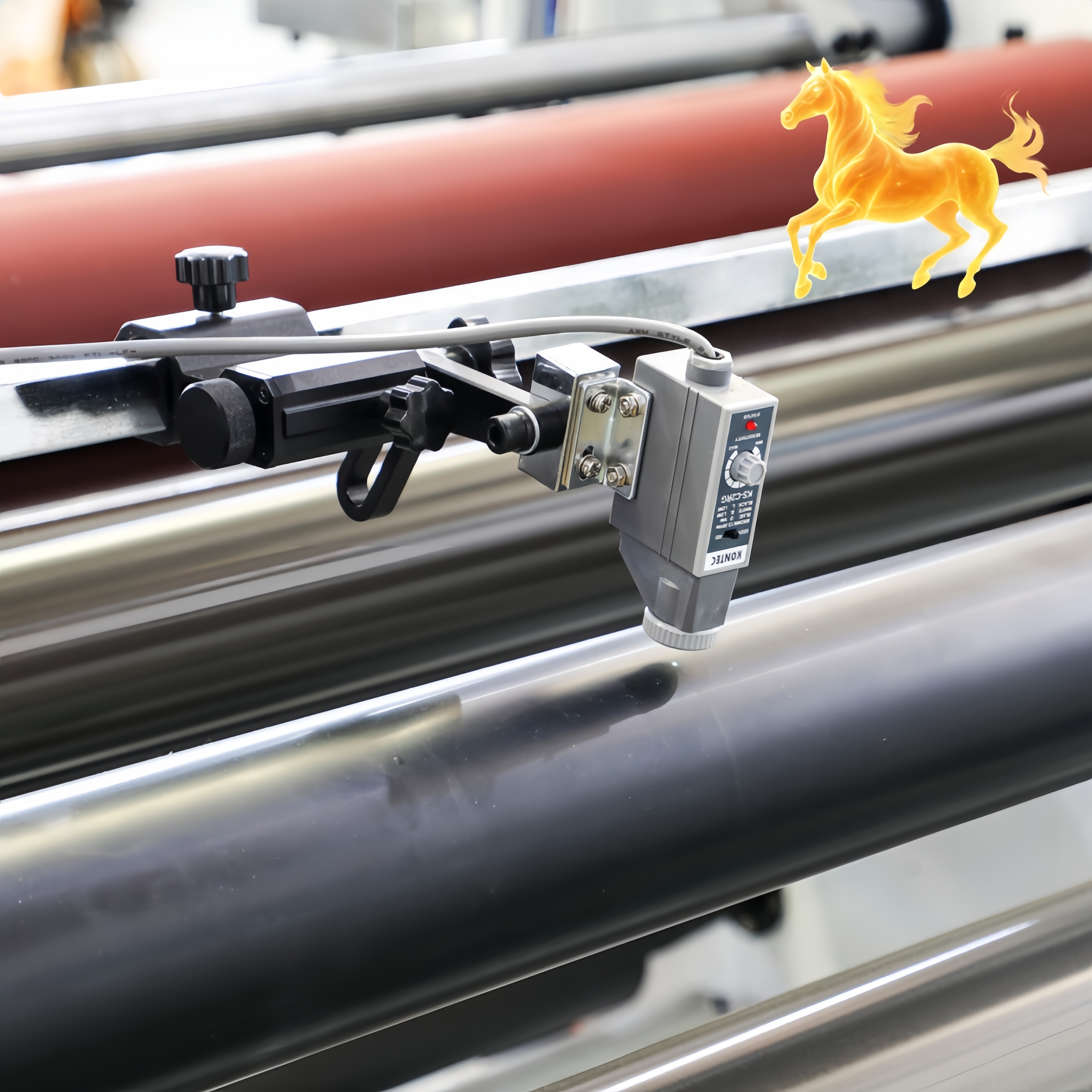

Automatic EPC for unwinding, photocell is suitable for tracking the edge and the line of material.

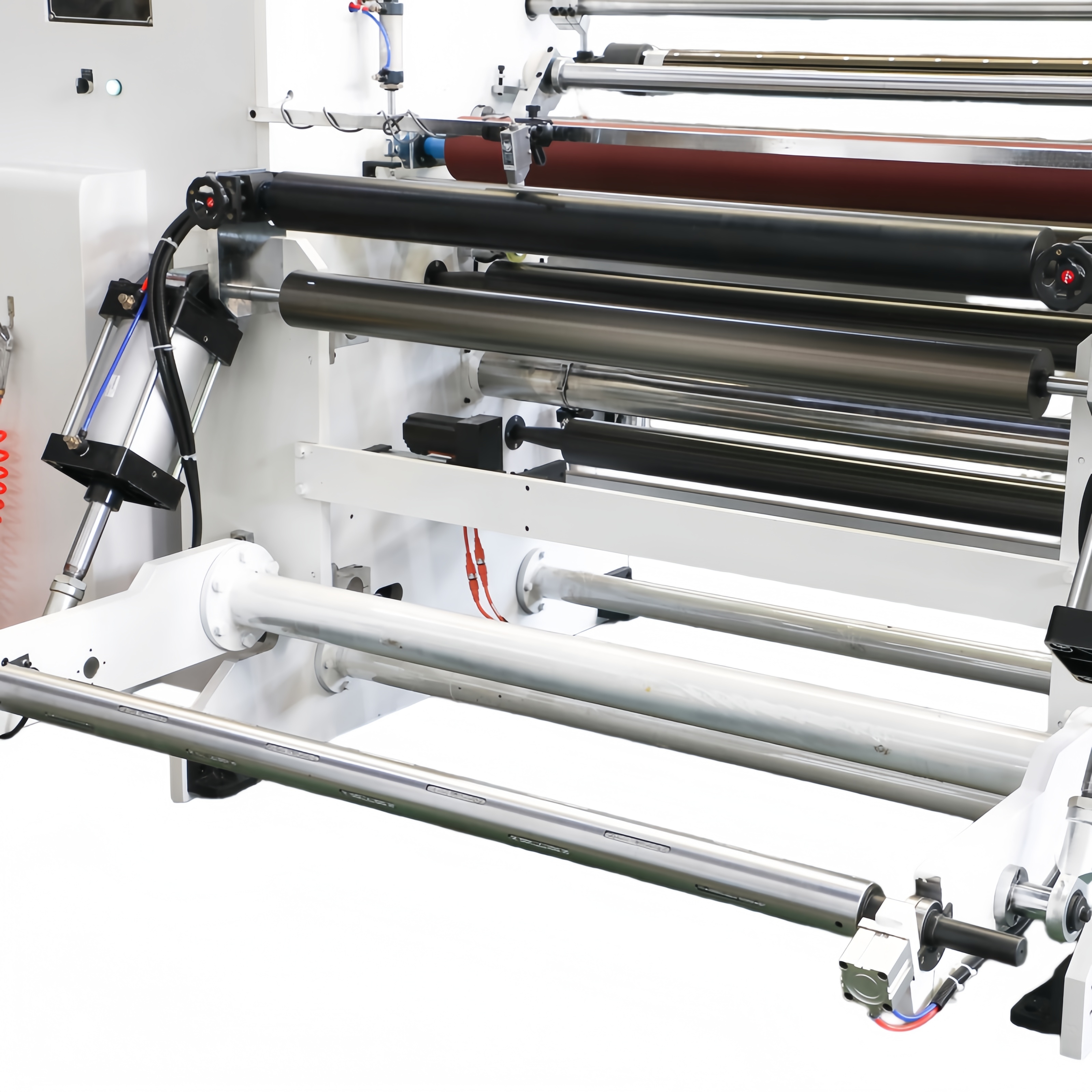

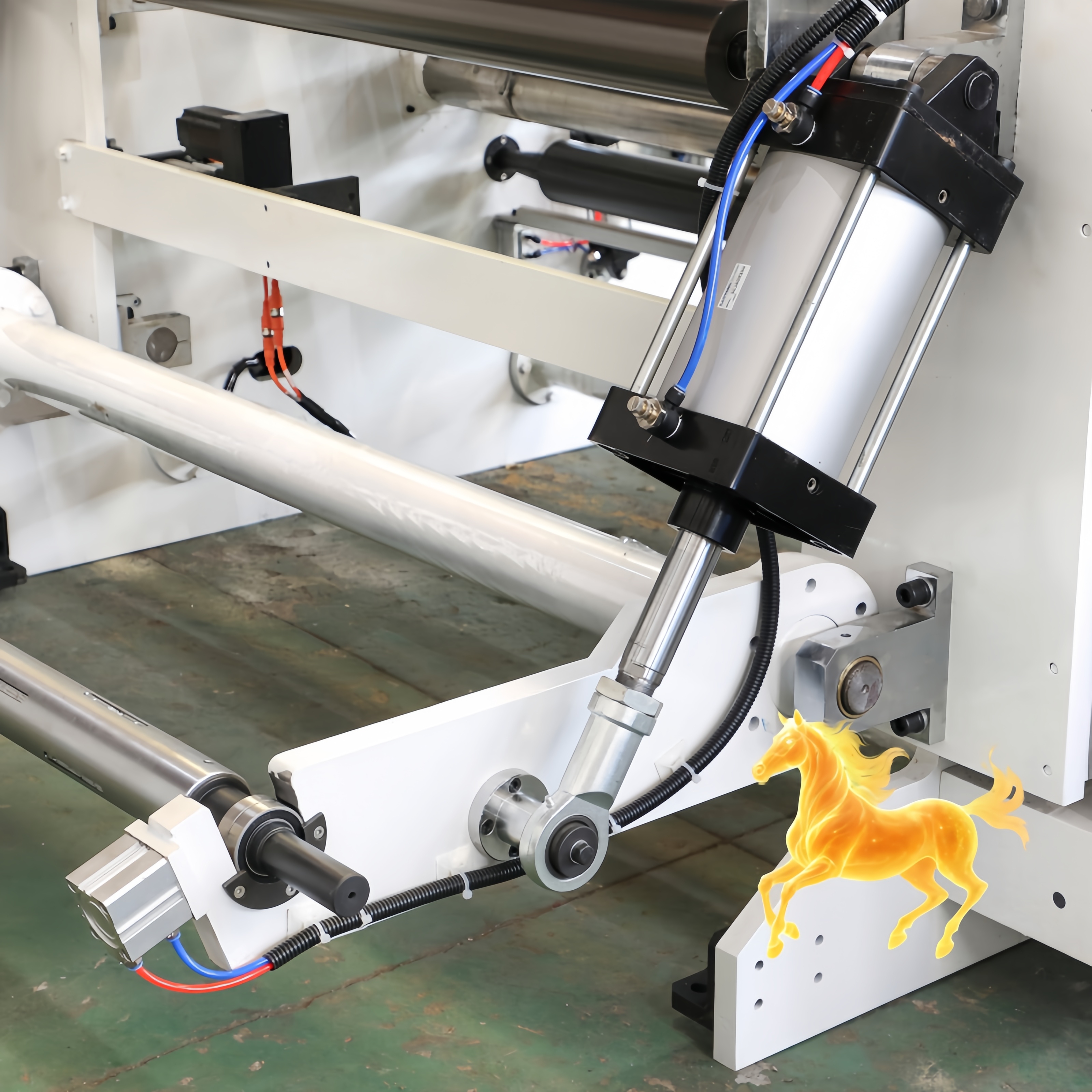

Equipped with air shaft for unwinding material loading, magnetic powder brake
for unwinding tension control
Slip clutch shaft for rewinding, Magnetic powder clutch for rewinding tension control
Equipped with air trim discharge conveying system.
Automatic meter counting device.
Main technical parameter :
Model | SLT-SGC1300 |
Max. Width of Mother Roll | 1300mm |
Max. Diameter of Mother Roll | 1000mm |
Width of Final Roll | 20~1300mm |
Max. Diameter of Rewinding | 800mm |
Slitting and Rewinding Speed | 250m/min |
Precision of EPC | ±0.5mm |
Total Power | 15Kw |
Overall Dimension(L×W×H mm) | 4200×2400×1300 |
Weigh t o f Machine | 5000kg |
Integrated Compact Structural Design
Adopting an all-in-one integrated structure, the equipment has a greatly optimized footprint compared with traditional split-type slitting machines. It saves valuable workshop space without reducing equipment operating performance and slitting accuracy, and is easy to install and deploy in existing production lines.
User-friendly & Easy Operation System
Equipped with an intuitive human-machine interface and centralized control panel, all core parameters (slitting speed, unwinding tension, rewinding tightness) can be set and adjusted with one button. The simplified operation process greatly reduces the operator's learning curve, no long-term professional training is required, effectively cutting labor training costs.
Large Diameter Unwinding System
The industry-leading large unwinding diameter design is compatible with various specifications of jumbo film rolls, which effectively reduces the number of roll changes during continuous production, shortens non-production downtime, and improves the continuous operation capacity and overall production efficiency of the equipment.
Stable Center Winding Technology
Adopting high-precision center winding structure, it maintains constant tension control during high-speed slitting and rewinding process, effectively avoids film wrinkling, stretching and deviation problems, ensures neat rewinding end faces and consistent tightness of finished rolls, and meets the high-quality slitting requirements of different film materials.
Wide Material Compatibility
It is suitable for slitting and rewinding of various flexible film materials, including BOPP, PET, PE, PVC, protective film, composite film, aluminum-plastic film and other common packaging and industrial film materials, with adjustable slitting width and speed, to meet diversified production needs of different industries.
Flexible packaging manufacturing industry: slitting processing of various packaging films for food, daily chemicals, medicine and electronic products
Plastic film production industry: precision slitting of BOPP, PET, PE, PVC and other general plastic films
Protective material processing industry: slitting of PE protective film, self-adhesive film, stretch film and other protective materials
Printing and composite industry: post-processing slitting of printed composite films, laminated films and aluminized films
Electronic industry: precision slitting of electronic protective films, optical films and other thin film materials
