MWS-450
MWELLPACK

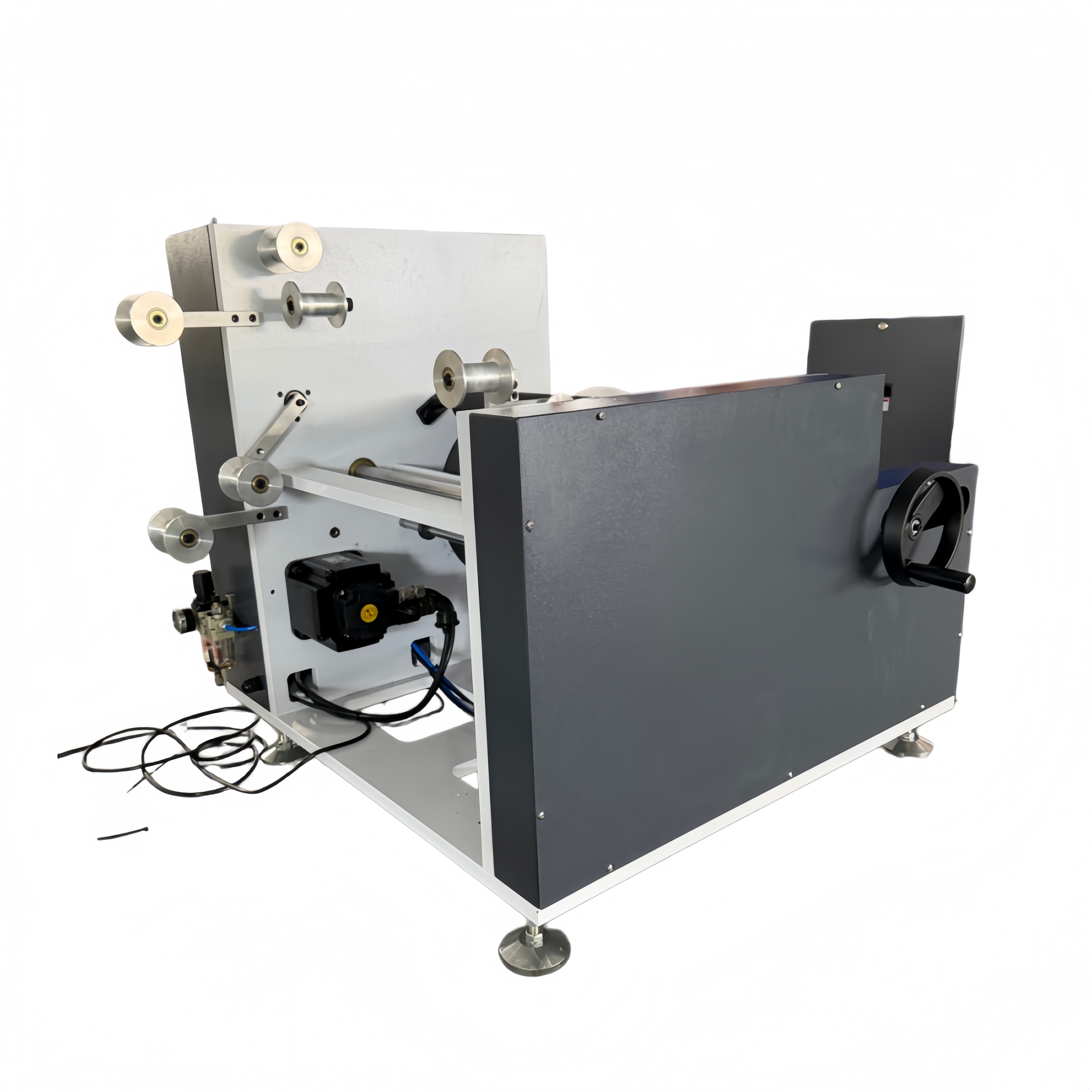

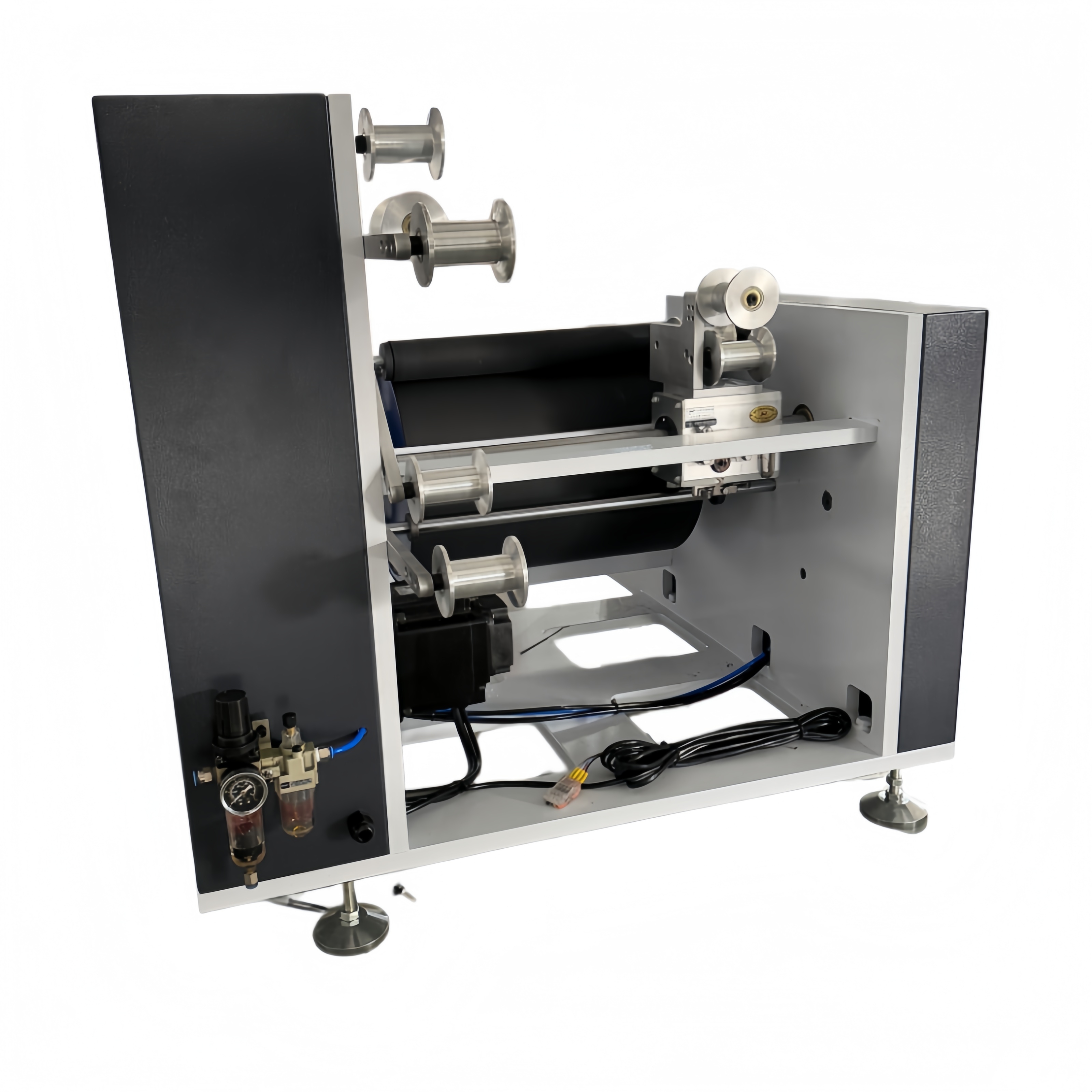

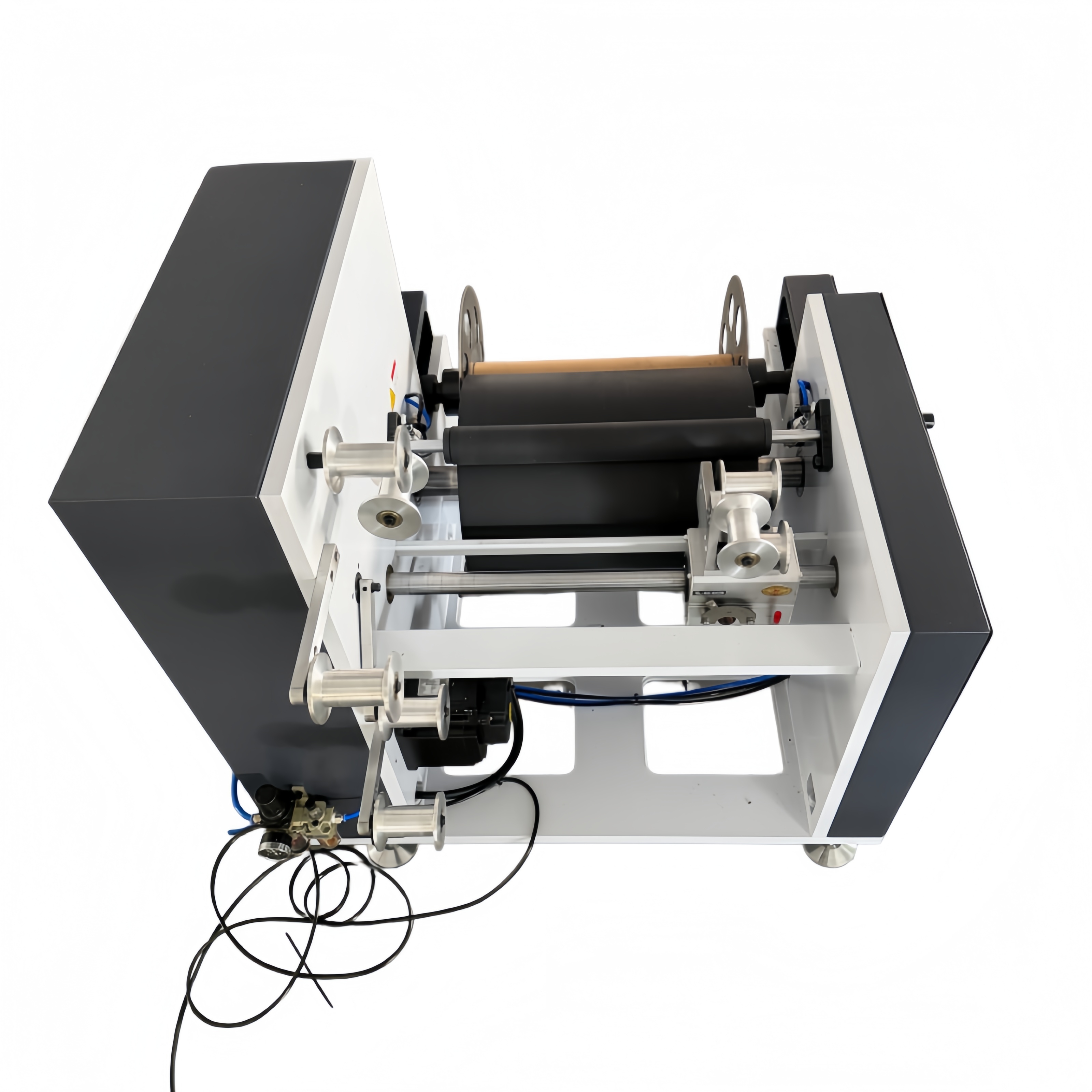

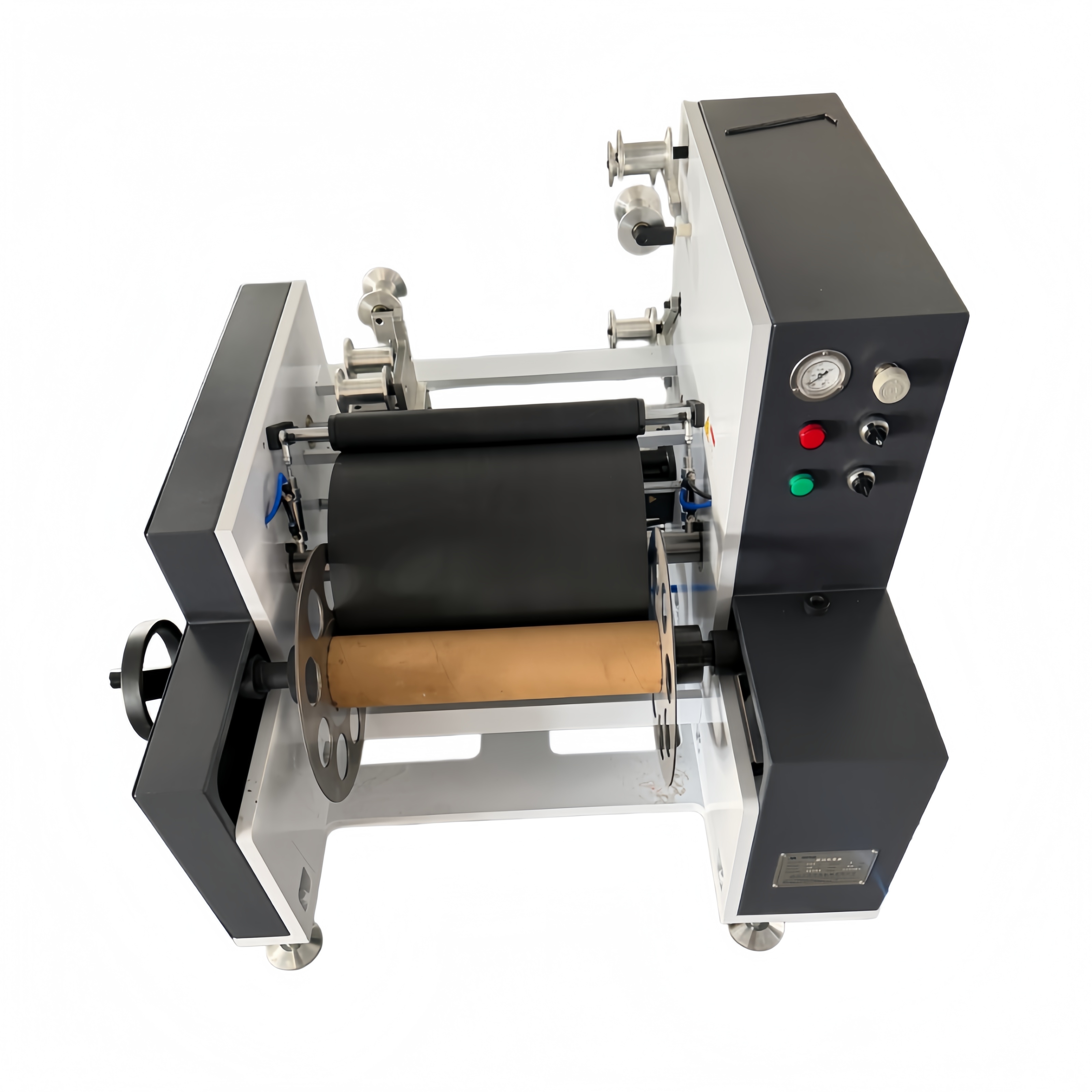

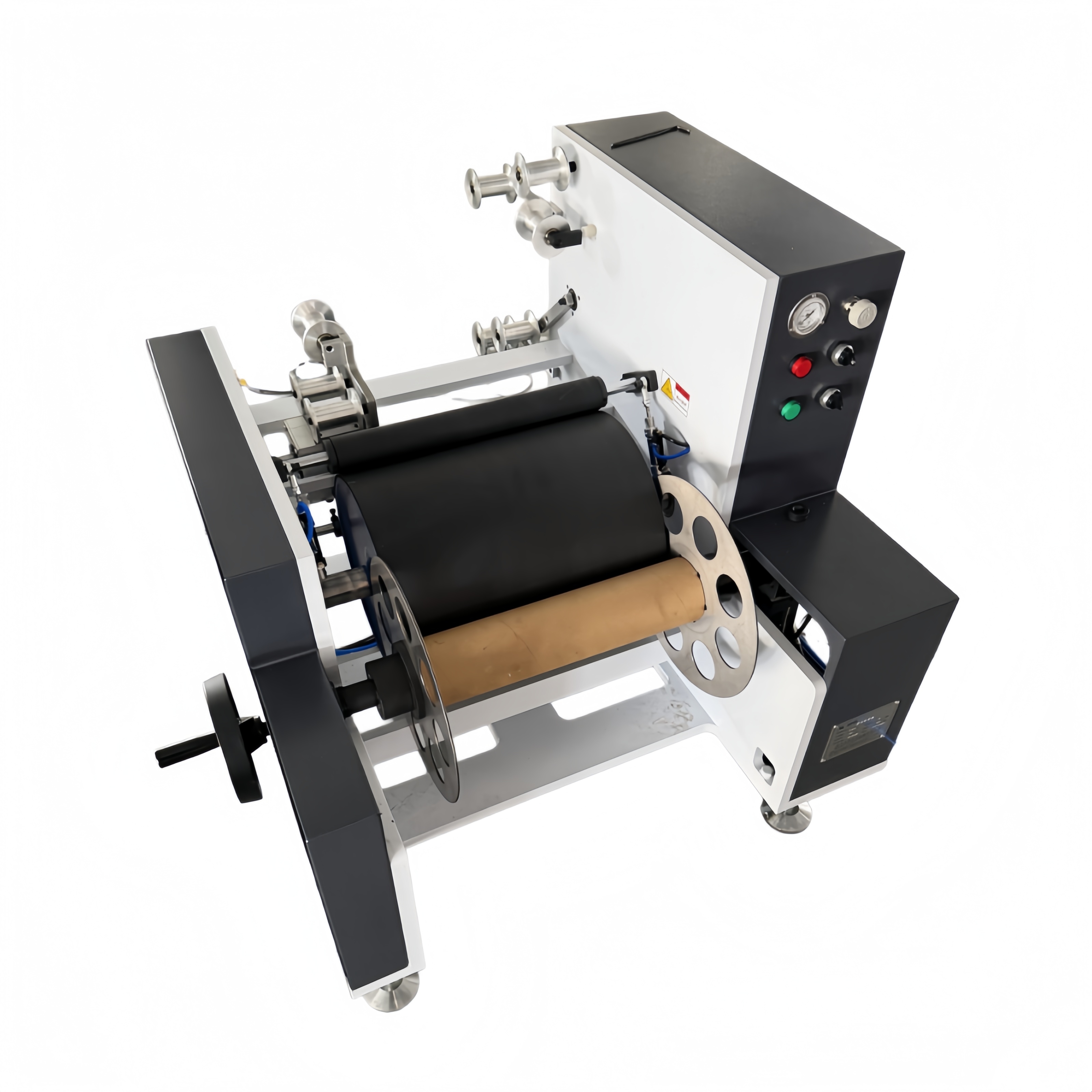

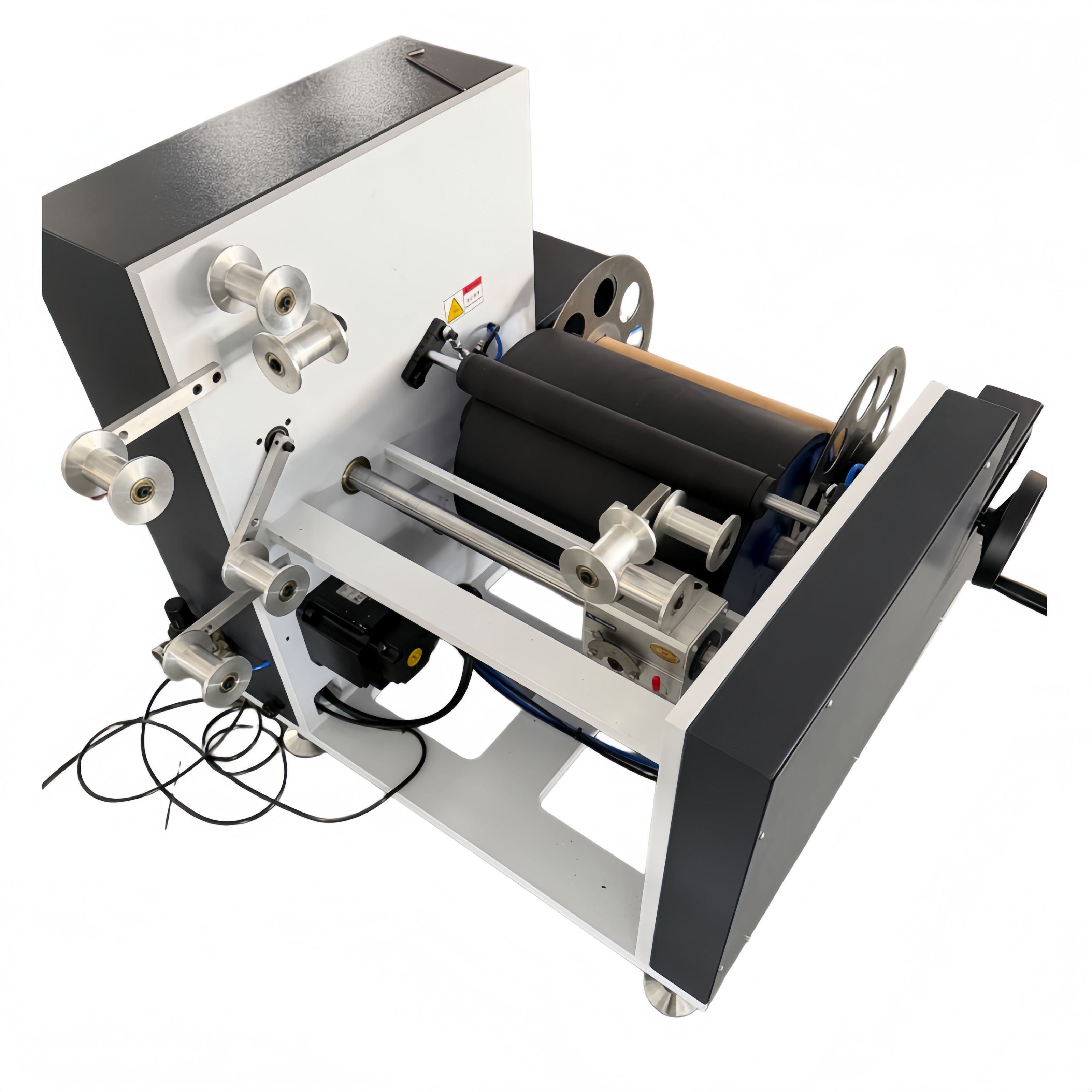

MWS-450 300m/min High Speed Full Automatic Waste Edge Rewinding Machine
300m/min Full Load Stable Operation | Full Automatic Closed-loop Tension Control | Universal Compatibility for All Production Lines
A professional fully automatic online waste edge recycling solution for printing, packaging, paper products and new material industries, solving core industry pain points including material breakage, irregular winding, poor compatibility and low efficiency in high-speed production.
Our Core Solution
This 300m/min high-speed waste edge rewinding machine is specially developed for online waste edge recycling of high-speed production lines. With core strengths of ultra-high speed stable operation, precise closed-loop tension control and strong universal compatibility, it is perfectly compatible with full-range production lines slitting machines, . It realizes fully automatic unmanned waste edge winding, greatly improves production efficiency, and reduces labor, operation and maintenance costs for customers.
Parameter Item | Standard Specification | Customization Scope |
Model | MWS-450 | Customized models available on demand |
Max Winding Line Speed | 300m/min | 100-600m/min customizable |
Tension Control Mode | Full Automatic Closed-loop Tension Control (PID Intelligent Algorithm) | Open-loop / Semi-closed-loop / Explosion-proof control system optional |
Compatible Winding Width | Mini 1mm | Widened specification customizable according to production line needs |
Winding Station | Standard Single-station | Single-station / Multi-station customizable |
Winding Shaft Specification | Standard 3-inch Air Shaft | Smooth Shaft / Custom-sized Air Shaft optional |
Core Drive | Panasonic Servo Motor | International first-tier brand servo / variable frequency drive optional |
Power Supply | 380V 50Hz | Export-exclusive voltage specification customizable |
Rated Power | 3kW | Adjusted synchronously with station / configuration |
Net Weight | 370kg (Standard Model) | Adjusted synchronously with customized specifications |
