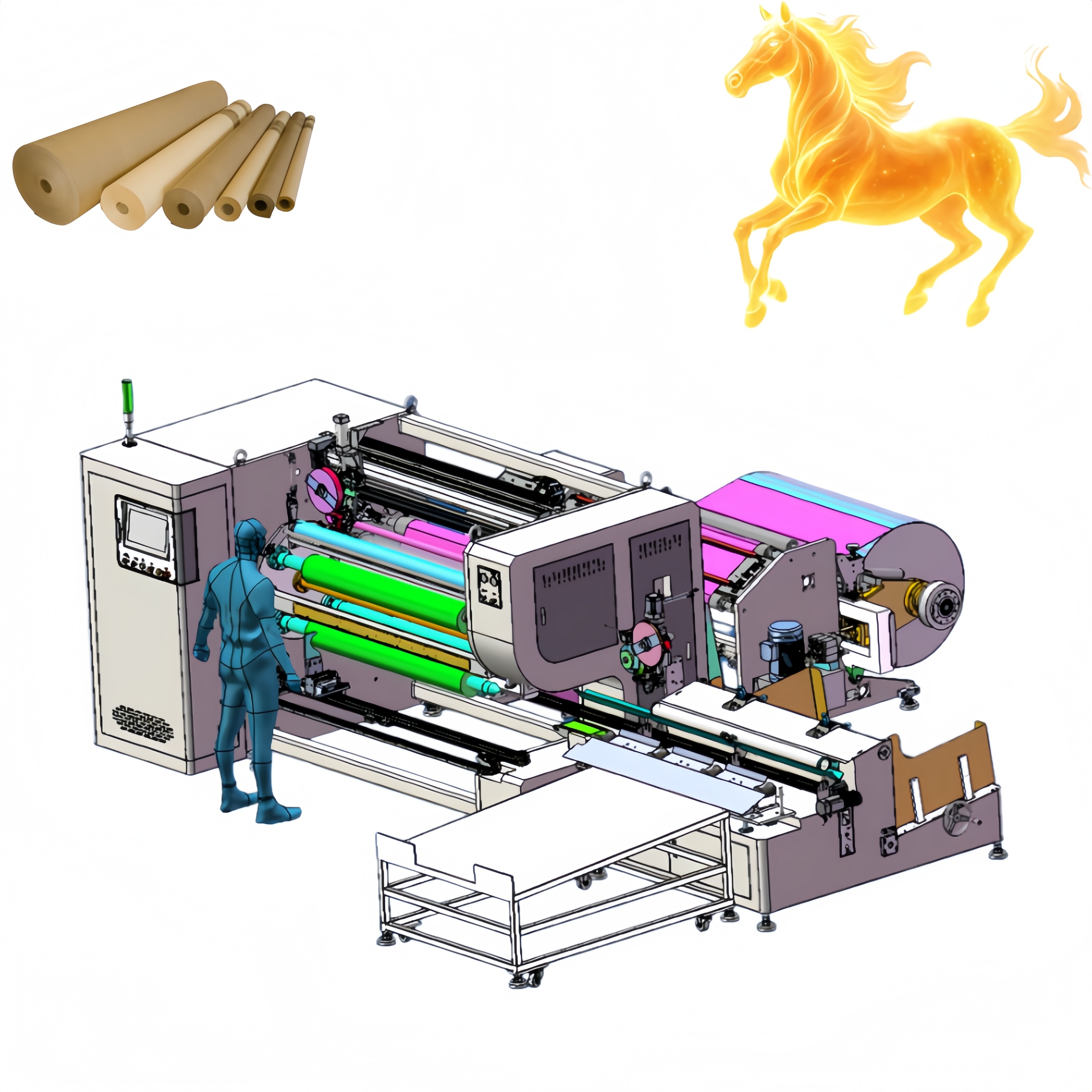

SLT-SUE Automatic Paper Film Label Rewinding Machine with 11 Servo High Speed System

SLT-SUE High-Speed Servo Rewinding Machine Smart Automation for Paper & Film Rolls

 This automatic rewinding machine is designed for paper film and label roll converting.

Equipped with 11 servo motors and PC control system it ensures high speed production stable tension and precise rewinding performance.

- Servo rewinding system ensures precise tension control

- Automatic turret rewinding machine supports non stop production

- Glue free rewinding design improves roll quality

- High speed rewinding machine for paper film and label materials

Widely used for:

- paper roll rewinding

- film converting industry

- label production line

- packaging material processing

Equipment layout

# Basic Use

Mainly used for the non-adhesive rewinding of such materials as aluminum foil tape, copper foil tape, car protective film, advertising paper, color changing film and kraft paper.

# Product Characteristics

• Adopt a PC computer motion control system and 11 servo motors for the whole machine, which avoids the instability of pneumatic control and improves the stability and high efficiency of the equipment. (Servo-controlled rewinding, servo-controlled active traction, servo-controlled label pulling, servo-controlled glue application, servo-controlled shaft flipping and changing, servo-controlled discharging, servo-controlled rewinding pressure roller, servo-controlled cutter, servo-controlled finishing, servo-controlled finishing labeling, and servo-controlled paper core insertion).

• Equipped with a high-precision indexer transmission and positioning structure and 4-axis automatic exchange to realize non-stop production and improve production efficiency.

• Automatic labeling is equipped for rewinding and finishing with flat sticking edges, facilitating subsequent processing.

• Automatic flattening rollers are added at the rewinding and finishing positions to ensure fast sealing of materials without wrinkles.

• Adopt the 0-friction and 0-contact rewinding structure independently developed by our company, which replaces the traditional locked-shaft mechanical structure, enabling the whole machine to run with low noise and no harm to human body.

• The servo automatic shifting pressure roller automatically follows the change of material diameter to ensure the optimal gap between the pressure roller and the rewinding shaft, making the rewinding flatter.

• Adopt hydraulic brake for automatic feeding, which prevents the deformation of the master roll paper core and the difficulty in shaft insertion, being convenient, fast and labor-saving.

• Equipped with automatic alarm and stop function when out of film to reduce material waste.

• With automatic deviation correction function to avoid unsightly finished products caused by uneven master roll materials.

• A material splicing platform is provided for easy material threading, improving efficiency and avoiding material waste.

• The servo module is used for pulling and releasing sealing labels, with the length and position adjustable at will, featuring convenient adjustment and precise positioning.

• The movable discharge table can store 20-40 rolls of finished products and be moved freely, facilitating subsequent processing.

• Realize automatic paper core feeding, servo-driven paper core insertion, automatic glue application, automatic finishing and sealing label application, automatic cutting and automatic discharging.

• Adopt automatic tension control for unwinding and rewinding, with stable tension, flat lamination, smooth start and stop as well as edge alignment control to ensure flat rewinding.

• Servo-controlled rewinding is adopted with digital linear growth of rewinding tension (automatic tension calculation for each coil), making the transition of rewinding and unwinding force more smooth and perfect.

• Servo motor-driven material pulling ensures accurate length calculation. Servo motor torque-controlled rewinding realizes stable and precise rewinding tension, as well as exquisite rewinding with flat end faces.

• The unwinding part adopts a shaftless hydraulic brake for convenient and fast loading and unloading, hydraulic cylinder lifting and automatic deviation correction; it is also equipped with diameter-based automatic tension control with a magnetic powder brake for unwinding to realize accurate torque control.

• Adopt tungsten steel circular knife for rotary cutting, equipped with automatic knife cleaning function, featuring a durable blade and neat cutting edges.

• Realize automatic alarm and stop in case of film shortage, material break and paper core shortage.

• Adopt Hichuan Motion Control System with one-key start and easy specification change.

• Achieve unmanned production, allowing one operator to operate multiple machines at the same time, which greatly saves labor costs and improves production efficiency.

Main Parameter

This machine is suitable for paper film label tape and packaging materials.

It is an ideal solution for high speed rewinding machine demand in industrial converting applications.
