Use:

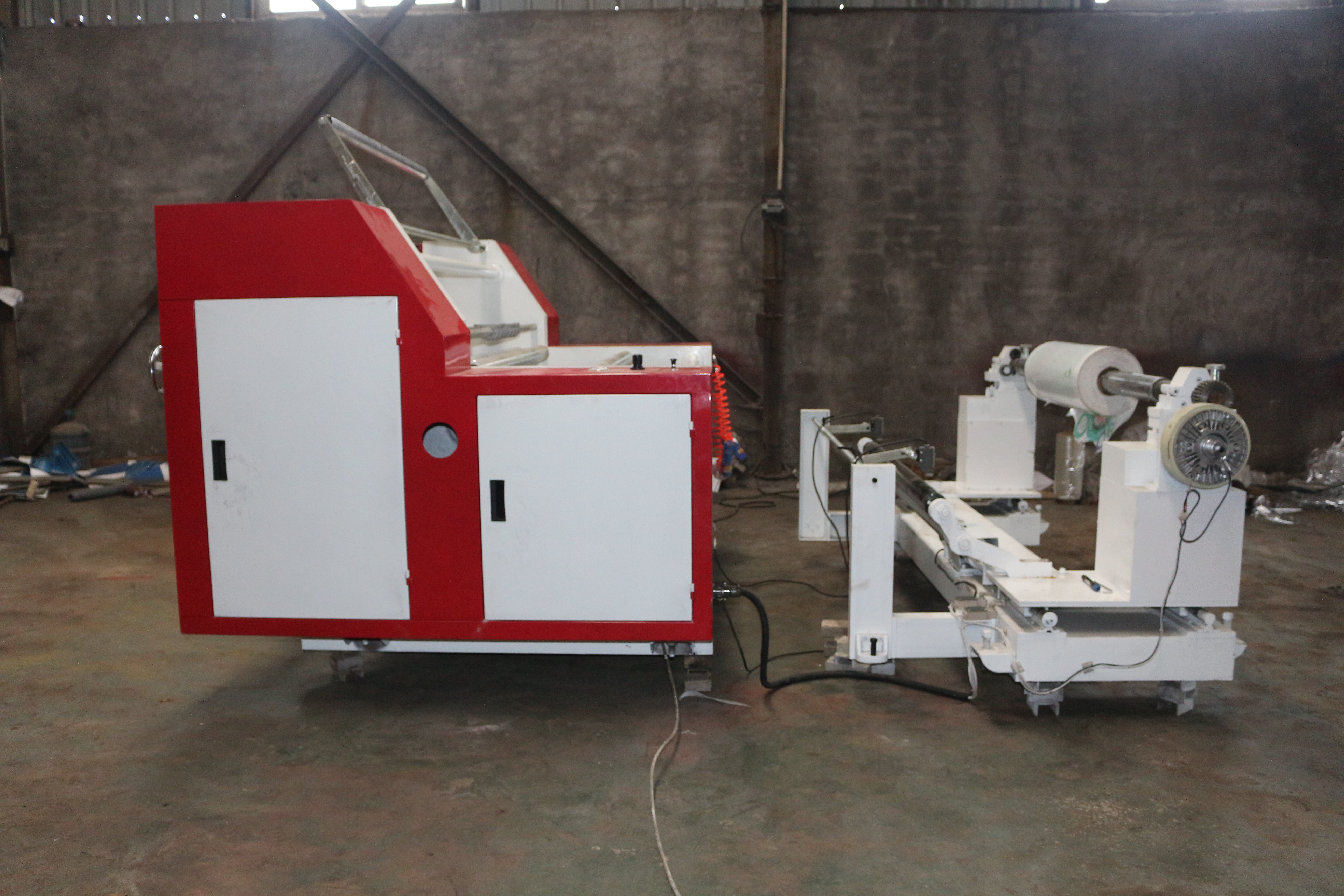

This machine are suitable for stripping of reel-shape materials such as BOPP, PET, PE, PVC , Aluminum foil , reel paper and so on
Feature :
Main Motor: electromagnetic speed regulation motor Separated General Control Cabinet, more flexible and even easier operation.Automatic EPC for unwinding, photocell is suitable for tracking the edge and the line of material.
Equipped with air shaft for unwinding material loading, magnetic powder brake for unwinding tension control
Air shaft for rewinding, Magnetic powder clutch for rewinding tension control Equipped with air trim discharge conveying system.Automatic meter counting device.
Main technical parameter :
Model | MW-SG1600 |
Max. Width of Mother Roll | 1600mm |
Max. Diameter of Mother Roll | 1200mm |
Width of Final Roll | 25~1600mm |
Max. Diameter of Rewinding | 600mm |
Slitting and Rewinding Speed | 200m/min |
Precision of EPC | ±0.5mm |
Total Power | 9Kw |
Overall Dimension(L×W×H mm) | 3200×2700×1300 |
Weigh t o f Machine | 3500kg |
Unwinder Unit
Adopts casting style for machine body |
Adopts air shaft with magnetic powder tension control |
20kg tension magnetic powder controller and auto taper style control |
Transmission guide roller: aluminum guide roller with active balance treatment |
Adopts liquid press style sub tense system, Error-correction precision: ±0.5mm |
Pneumatic lift system |
Main Machine Part
Adopts 120# high-quality casting structure |
Supported by non-gap empty steel tube |
Drive and transmission structure
Adopts motor and s change wheel together |
Adopts frequency timing system for main motor |
Transducer (SHENZHEN RIYE brand) |
Transmission structure: gear and change wheel |
Guide roller: adopts aluminum alloy guide roller with active balance treatment |
Aluminum guide roller: ￠70×1650mm |
High quality drive chain and wheel together |
Traction device
Structure: active traction control by pneumatic pressing roller |
Pressing style is controlled by pneumatic cylinder: ￠50×25mm |
Pressing roller: rubber roller (￠120×1650mm) |
Active roller: rubber roller (￠130×1650mm |
Drive style: main transmission shaft will be drove by main motor, and active shaft traction will be drove by main shaft |
Slitting device
Shear Type Rotary blade for paper slitting |
Razor type slitting blade for film slitting |
Upper knife shaft: empty steel shaft |
Upper round knife: can be adjusted freely. |
Lower knife shaft: steel shaft |
Lower round knife: can be adjusted by shaft cover |
Slitting precision: ±0.2mm |
Rewinding device
Structure style: double air shafts (also can use single air shafts) |
Adopts tile style air shaft (￠76×1650mm) |
Adopts 10kg magnetic powder clutch for rewinding |
Diameter of rewinding: Max ￠600mm |
Press roller and pneumatic cylinder fix air shaft |
Manual Discharge |
Wasted-material device
Elimination style of wasted material: by blower |
0.55kw Blower motor |
Electric control part
It is composed of main motor control, tension control and others, |
Main motor: adopts three-phase moment motor 5.5kw |
Main motor control: including main motor control and main controlling box |
Tension control: unwinding tension, rewinding tension, speed. |
Enclose with electronic metering, stop by alarm system, auto length-position. |
All electrical components is made by CHINA CHINT |
Configuration list
Web Guide Photo cell | CHINA LONGYOU |
Motor | CHINA SHANGHAI |
Encoder | OMRON JANPAN |
Inverter | RIYE CHINA |
Main Electric part | CHINT CHINA |
The Pneumatic Parts | KAOGER CHINA |
PLC | SIEMENS |
Spare Parts list
Monkey wrench | 1 pc | ||
Ringent wrench | 12×14 | 1 pc | |
Ringent wrench | 17×19 | 1 pc | |
Ringent wrench | 8×10 | 1 pc | |
Screw driver | “十”shape | 1 pc |
Screw driver | “一”shape | 1 pc | |
Inner hexagonal wrench | 1 pc | ||
Oil gun | 1 pc |
