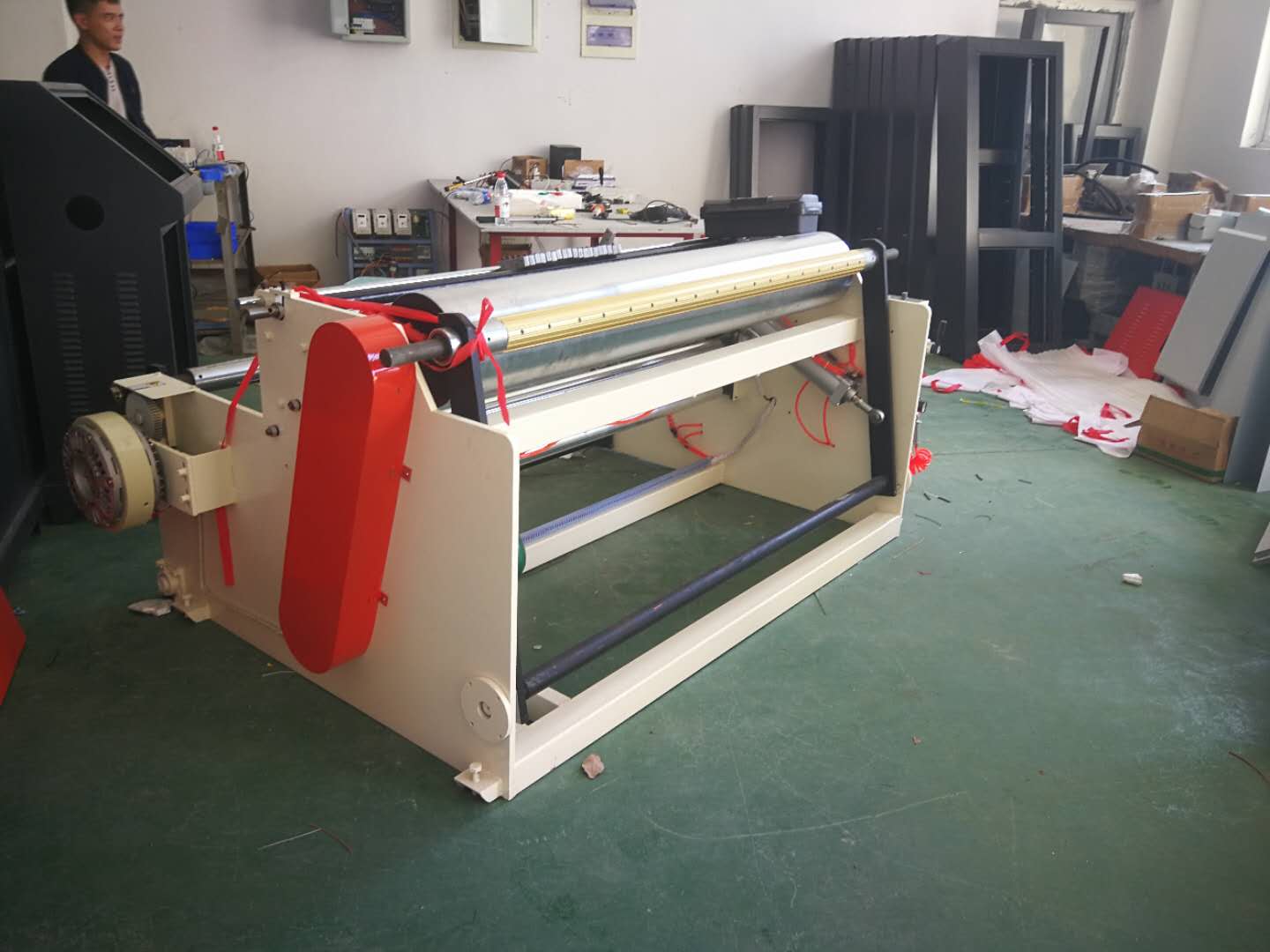

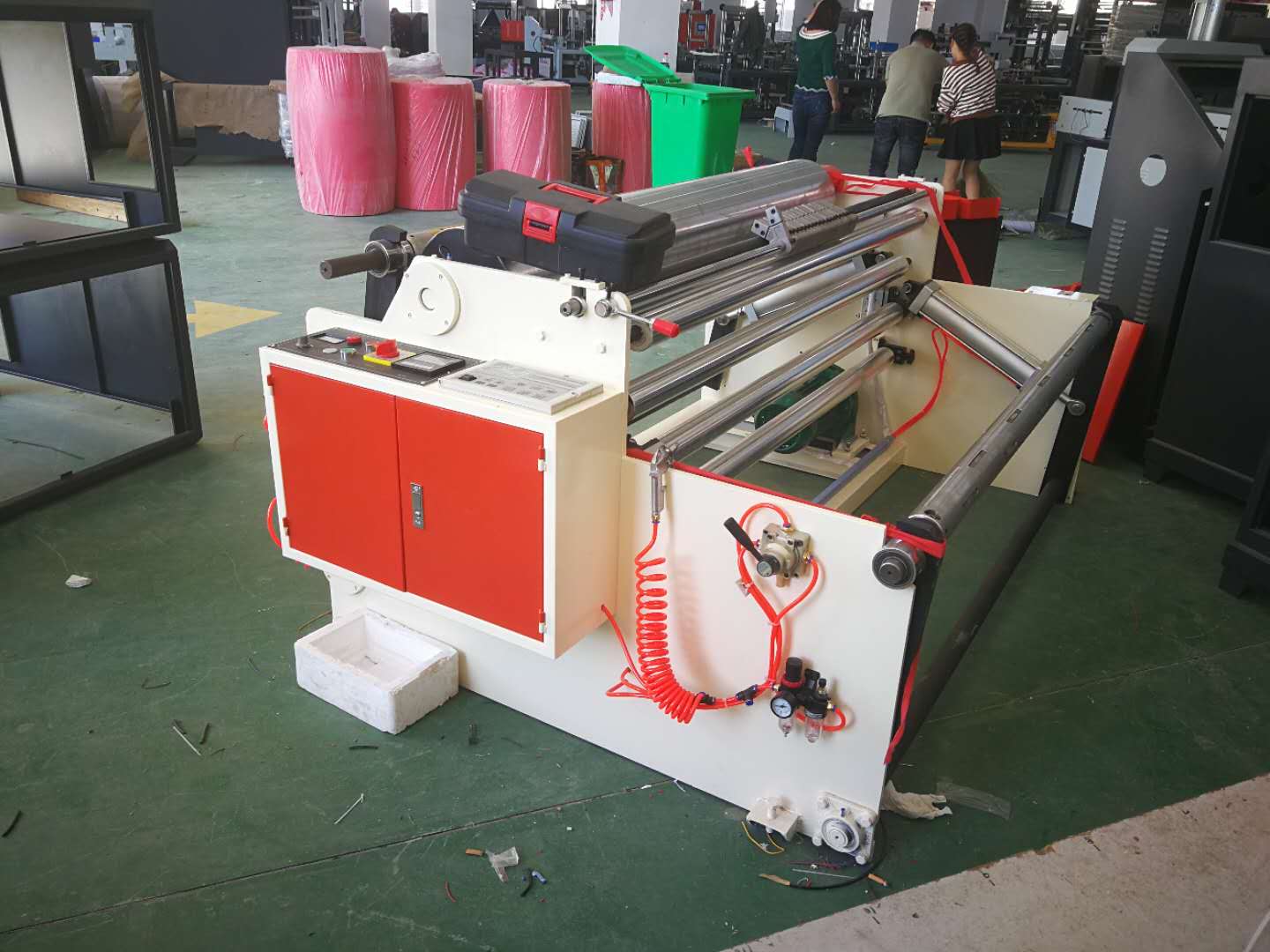

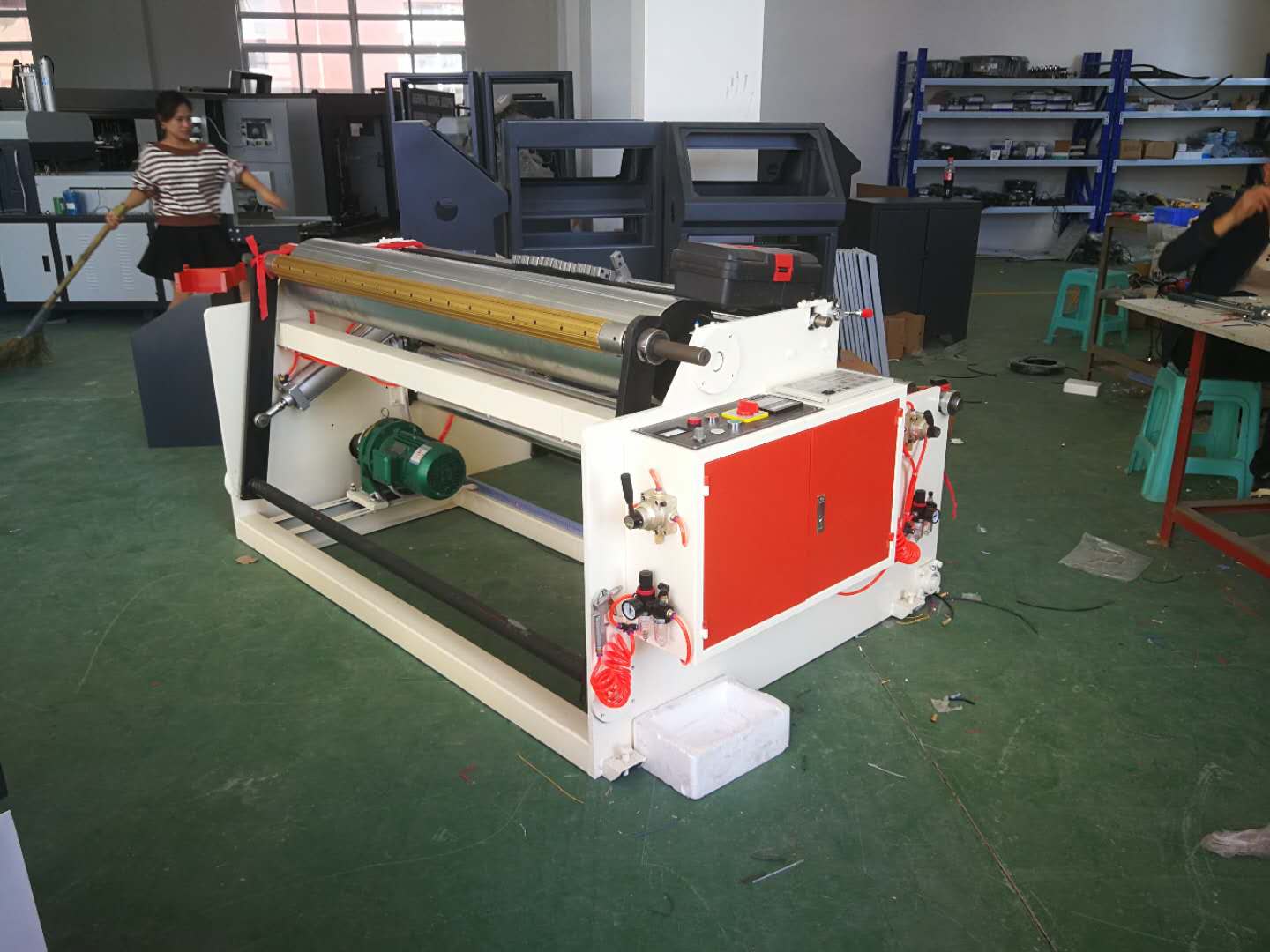

MW-SHN1700 Non Woven Fabric Slitting Machine

Specification （Parameter）:

Unwinding length: 1700mm

Max.diameter of unwinding: 1200mm
Max.diameter of rewinding:600mm

Slitting size: minimum 18mm
Speed: 20—80m/minute

Total power: 2.2kw
Weight: 400kg

Overall dimension (l*w*h):2600mm*1900*1300mm

Configuration:

Slitting machine (slitter one big roll into small roll)

Unwinding materials: unwinding material fixed by air cylinder

Rewinding tension adopt 5kg magnetic powder brake, rewinding up and down

Cutter: 30 pieces
Converter motor: kewo

Electrical: chint
Pneumatic: SNS

Magnetic powder: shengda
